- - 42. OUTERRINGU NITCOMPONE NTS

- -

REF.NO NOTE PARTNO DESCRIPTION Qty

1 E2163-725-000 AWCBRACKETE 1

2 401-29040 AWCMOTORASM 1

3 SL-6041042-TN SCREWM4L=10 4

4 400-00768 AWCPULLEYAASM 1

5 E2153-725-000 AWCPULLEYA (1)

6 SM-8040602-TP SCREWM4X0.7L=6 (2)

7 SL-6051492-TN SCREWM5L=14 2

8 400-00769 AWCPULLEYBASM 1

9 E2154-725-000 AWCPULLEYB (1)

10 SM-8040402-TP SCREWM4X0.7L=4 (2)

11 SM-8040602-TP SCREWM4X0.7L=6 (2)

12 E2160-725-000 AWCBELT(E) 1

13 401-47054 SENSOR_BR_AWC 2

14 SL-6030892-TN SCREWM3L=8 4

15 SL-4031291-SC SCREWM3L=12 4

16 EA-9500B01-00 CABLEBAND 2

17 400-65488 BUPINSENSORDOG 2

18 SM-4030501-SN SCREWM3L=5 2

19 HX-0031400-00 SPIRALTUBE 0.32

20 E1143-721-000 WOOLENCLOTHPAPER 1

21 402-06618 AWC_OP_DOG 1

22 401-61236 BUPINEMISSIONSENSASM 1

23 401-61237 BUPINRECEIVESENSASM 1

24 HM-0013200-00 STEPPINGMOTOR 1

25 SL-4030891-SC SCREWM3L=8 2

26 HX-0032600-0J GROMMET 1

27 HX-0031400-00 SPIRALTUBE 0.55

- -

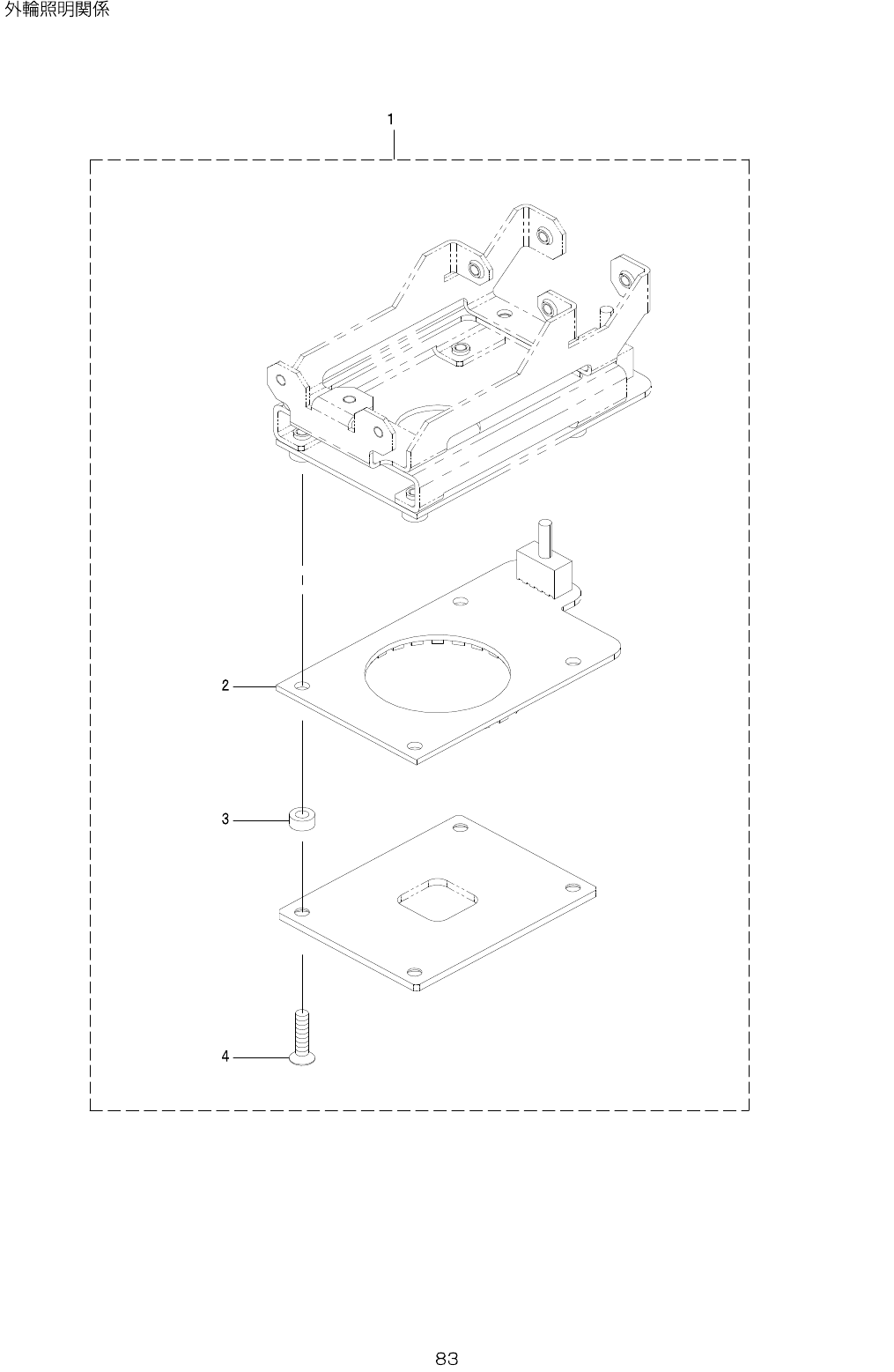

42.OUTERRINGUNITCOMPONENTS

- -

REF.NO NOTE PARTNO DESCRIPTION Qty

1 401-27923 SOLDERRECLIGHTNINGUNIT 2

2 401-28880 OCCOPCBASM (1)

3 HX-0033500-0G SPACER (4)

4 SM-1031401-SC SCREWM3X0.5L=14 (4)
