45.LEADCORRECTJIGBASE&MOSTLEADCORJIGBASEASMCOMPONENTS
- -
REF.NO NOTE PARTNO DESCRIPTION Qty
1 402-13413 LEAD_CORRECT_JIG_BASE_ASM 1
2 401-65096 LEAD_CORRECT_JIG_FIX_BASE (1)
3 401-56188 LOCATE_PIN_A (1)
4 401-56189 LOCATE_PIN_B (1)
5 SM-8020302-TP SCREWM2X0.4L=3 (2)
6 401-65098 LEAD_CORRECT_JIG_ATTACH_BLOCK (1)
7 SL-6031692-TN SCREWM3L=16 (2)
8 SL-6062092-TN SCREWM6L=20 (2)
9 401-76201 LEAD_CORRECT_JIG_001_ASSY 1
10 401-76202 LEAD_CORRECT_JIG_002_ASSY 1
11 401-76203 LEAD_CORRECT_JIG_003_ASSY 1
12 401-76204 LEAD_CORRECT_JIG_004_ASSY 1
13 401-76205 LEAD_CORRECT_JIG_005_ASSY 1
14 401-76206 LEAD_CORRECT_JIG_006_ASSY 1
15 401-76207 LEAD_CORRECT_JIG_007_ASSY 1
16 401-76208 LEAD_CORRECT_JIG_008_ASSY 1
17 401-76209 EXTEND_LEAD_CORRECT_JIG_001_T15 (1)
18 401-76211 EXTEND_LEAD_CORRECT_JIG_002_T15 (1)
19 401-76213 EXTEND_LEAD_CORRECT_JIG_003_T15 (1)
20 401-76215 EXTEND_LEAD_CORRECT_JIG_004_T15 (1)
21 401-76217 EXTEND_LEAD_CORRECT_JIG_005_T15 (1)
22 401-76219 EXTEND_LEAD_CORRECT_JIG_006_T15 (1)
23 401-76221 EXTEND_LEAD_CORRECT_JIG_007_T15 (1)
24 401-76223 EXTEND_LEAD_CORRECT_JIG_008_T15 (1)
25 401-76210 SHRINK_LEAD_CORRECT_JIG_001_T15 (1)
26 401-76212 SHRINK_LEAD_CORRECT_JIG_002_T15 (1)
27 401-76214 SHRINK_LEAD_CORRECT_JIG_003_T15 (1)
28 401-76216 SHRINK_LEAD_CORRECT_JIG_004_T15 (1)
29 401-76218 SHRINK_LEAD_CORRECT_JIG_005_T15 (1)
30 401-76220 SHRINK_LEAD_CORRECT_JIG_006_T15 (1)
31 401-76222 SHRINK_LEAD_CORRECT_JIG_007_T15 (1)
32 401-76224 SHRINK_LEAD_CORRECT_JIG_008_T15 (1)
33 401-65107 LEAD_CORRECT_JIG_CLAMP_PLATE (2)
34 SL-6030892-TN SCREWM3L=8 (4)
35 402-55025 JM100_LEAD_COR_JIG_BASE_ASM (1)
36 SL-6031692-TN SCREWM3L=16 (2)
37 401-56188 LOCATE_PIN_A (1)
38 SM-8020302-TP SCREWM2X0.4L=3 (2)
39 SL-6062092-TN SCREWM6L=20 (2)
40 401-65096 LEAD_CORRECT_JIG_FIX_BASE (1)
41 401-56189 LOCATE_PIN_B (1)
42 402-54978 JIG_FIX_BLOCK
(1)
43
#01
402-55026 JM100_MOST_LEAD_COR_JIG_001_ASM 1
44
#02
402-55027 JM100_MOST_LEAD_COR_JIG_002_ASM
1
45 SL-6030692-TN SCREWM3L=6 (2)
46
#01
402-55062 MOST_LEAD_COR_JIG_WIDE_001_P10 (1)
47
#02
402-55066 MOST_LEAD_COR_JIG_NOR_002_P2.5 (1)
48
#01
402-54986 JIG_Y_10MM_WIDE (1)
49
#02
402-54985 JIG_Y_2.5MM_NARROW (1)
50
#03
402-54982 SPRING_PLATE (1)
51
#03
402-54980 SPRING_BRKT (2)
52
#03
402-54981 JIG_SUPPORT_SPRING (2)
53
#03
SL-6030692-TN SCREWM3L=6 (2)
54
#03
PH-0300082-C0 PARALLELPINTYPEB3X8 (2)
55
#01
402-55063 MOST_LEAD_COR_JIG_NAR_001_P10 (1)
56
#02
402-55065 MOST_LEAD_COR_JIG_WID_002_P2.5 (1)
57
#01
402-54987 JIG_Y_10MM_NARROW (1)
58
#02
402-54984 JIG_Y_2.5MM_WIDE (1)
59
#03
402-54982 SPRING_PLATE (1)
60
#03
402-54980 SPRING_BRKT (2)
61
#03
402-54981 JIG_SUPPORT_SPRING (2)
62
#03
SL-6030692-TN SCREWM3L=6 (2)
63
#03
PH-0300082-C0 PARALLELPINTYPEB3X8 (2)
64
#01
402-55064 MOST_LEAD_COR_JIG_001_P18.5 (1)
65
#02
402-55067 MOST_LEAD_COR_JIG_002_P2.5 (1)
66
#01
402-54988 JIG_X_18.5 (1)
67
#02
402-54983 JIG_X_2_5MM (1)
68
#03
402-54982 SPRING_PLATE (1)
69
#03
402-54981 JIG_SUPPORT_SPRING (2)
70
#03
402-54980 SPRING_BRKT (2)
71
#03
SL-6030692-TN SCREWM3L=6 (2)
72
#03
PH-0300082-C0 PARALLELPINTYPEB3X8 (2)
73
#03
SL-6030892-TN SCREWM3L=8 (6)
74
#01
402-54979 JIG_FIX_BRKT (1)
75
#02
402-55050 JIG_FIX_BRKT_002 (1)
- -

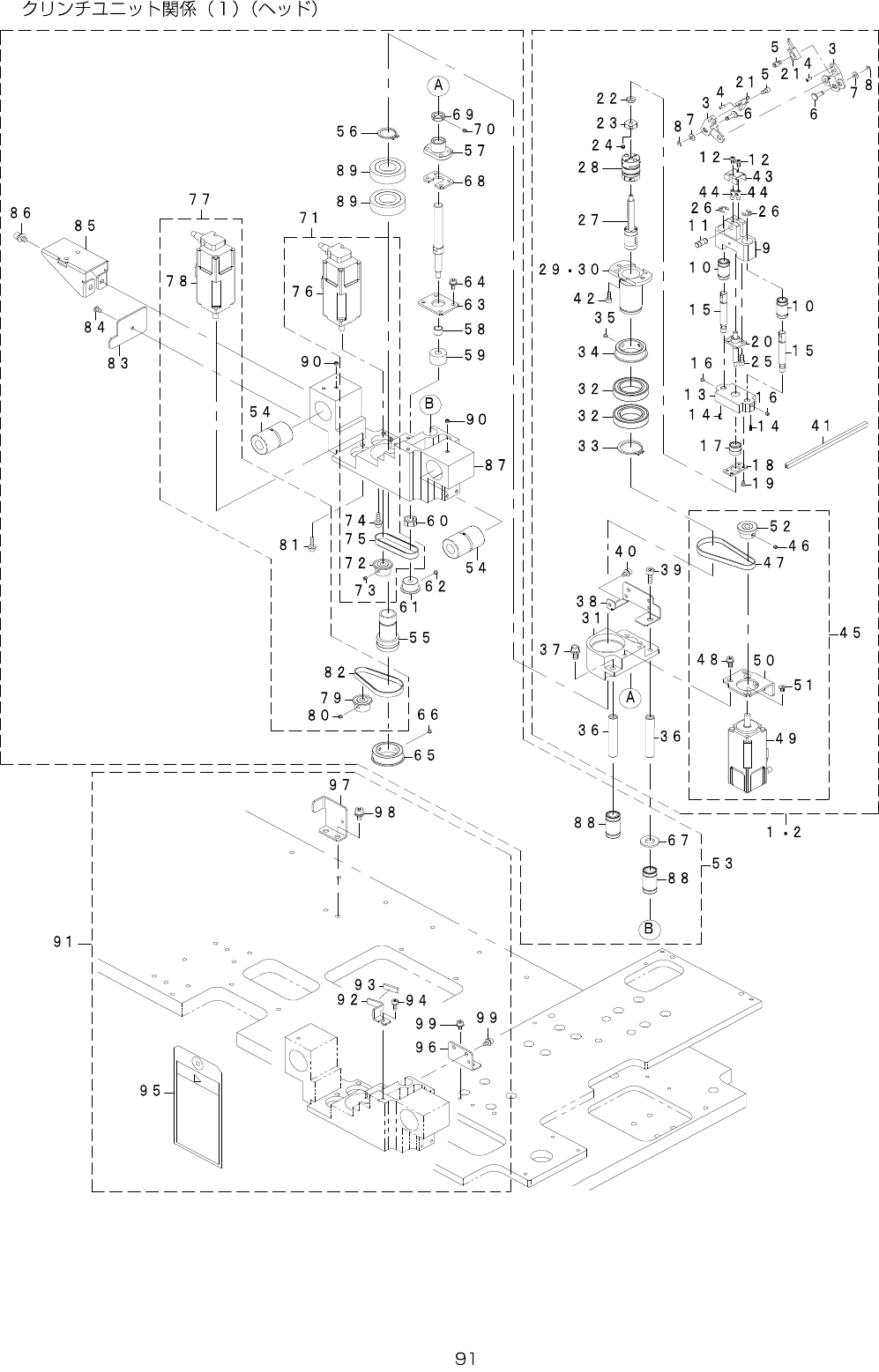

46.CLINCHUNITCOMPONENTS(1)(HEAD)
