ASM Assembly Sy stems GmbH & Co KG Subject to chang e without noti ce 7/27/2015 Rupert-M ayer-Strasse 44 81379 Mun ich, Germany TI2015-07E03.doc Page 3 - 5 2. Order numbers for grease gun and accessories Order the fo…
ASM Assembly Systems GmbH & Co KG Subject to change without notice 7/27/2015
Rupert-Mayer-Strasse 44
81379 Munich, Germany TI2015-07E03.doc Page 2 - 5

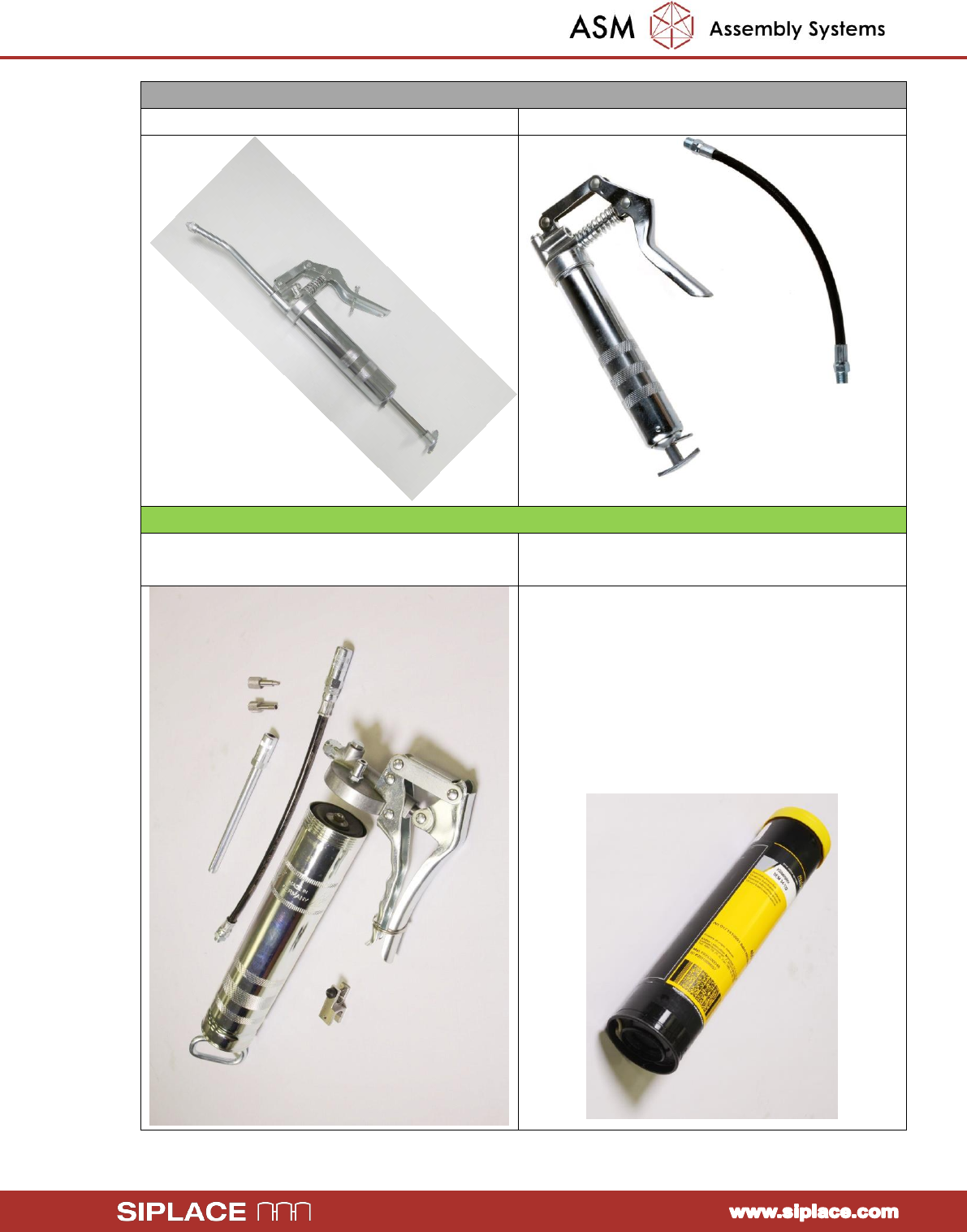

Old:
00374564Sxx Grease gun with nozzle, X axis HF
00374563Sxx Grease gun with hose, Y axis HF
New:
03123777-xx One-handed grease gun f.
400ml cartridge
03121952-xx Lubricating grease BEM 34-132,
400g cart.
ASM Assembly Systems GmbH & Co KG Subject to change without notice 7/27/2015
Rupert-Mayer-Strasse 44
81379 Munich, Germany TI2015-07E03.doc Page 3 - 5
2. Order numbers for grease gun and accessories
Order the following item number:
03123777-xx One-handed grease gun cpl.f.400ml cartr.
Contains:
03121951-xx
One-handed grease gun f. 400 ml
cartridge1/8
(with straight 1/8“ pipe and hydraulic
mouthpiece)
1. x
03122953-xx
Hose w. hydraulic mouthpiece 1/8
1. x
03122499-xx
Stroke limiter f. one-hand grease gun cpl.
1. x
03122520-xx
Syringe f. grease nipple cpl.
(00309454-xx O-ring 4*1 P583 70)
1. x
03122519-xx
Syringe f. grease nipple
1. x
The hose / straight pipe need to be fitted to the grease gun
depending on the guide carriage / grease nipple that needs lubricating.
03121952-xx Lubricating grease BEM 34-132, 400g cartridge
00309454-xx O-ring 4*1 P583 70 A (for Syringe f. grease nipple cpl. 03122520-xx)
ASM Assembly Systems GmbH & Co KG Subject to change without notice 7/27/2015
Rupert-Mayer-Strasse 44
81379 Munich, Germany TI2015-07E03.doc Page 4 - 5
3. Using the grease gun.

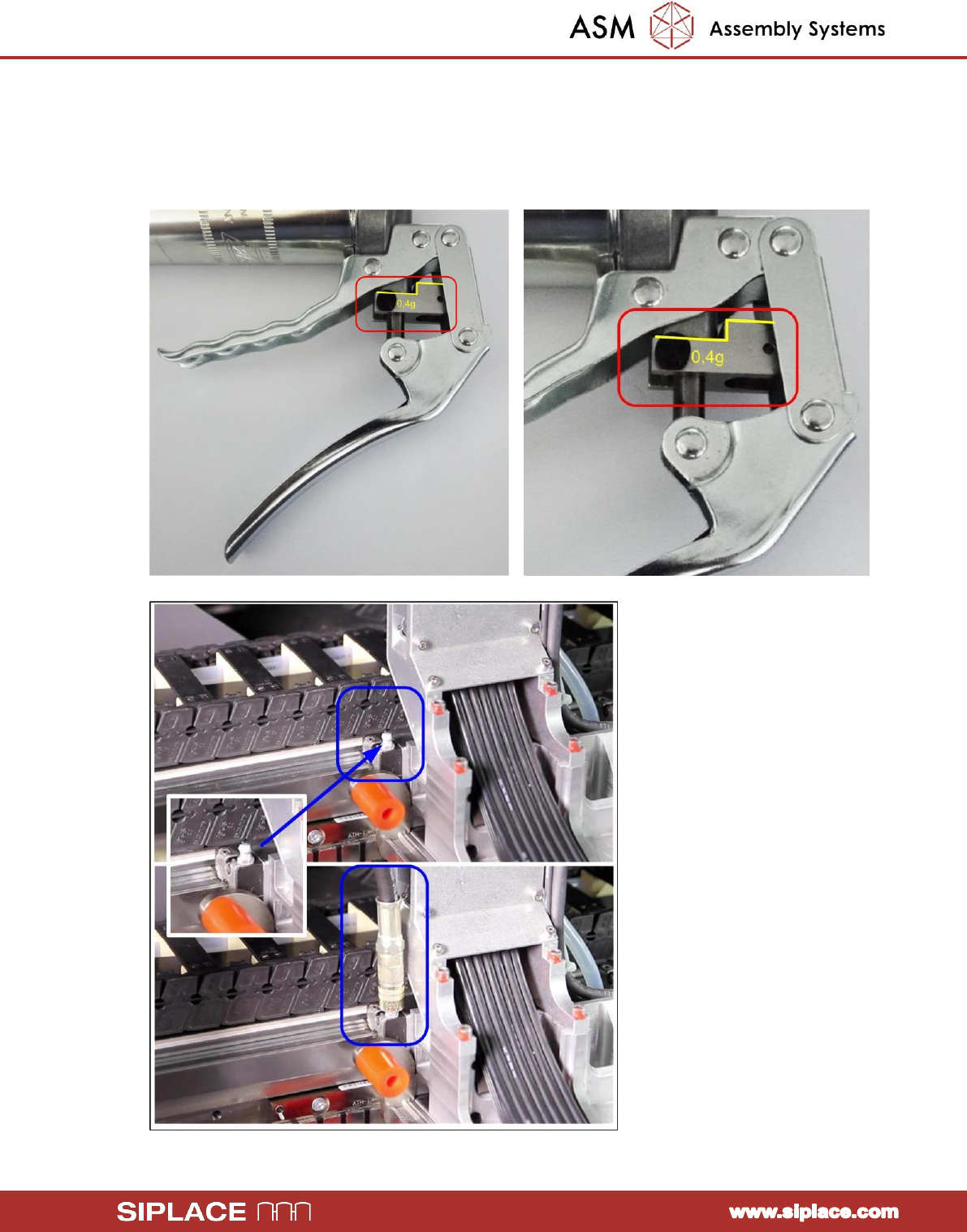

3.1 Grease gun for 0.4 g with hose for ball-type grease nipple:
SIPLACE SX1_2: Y axis, X axis and cutting unit
SIPLACE HF-, X-Series, CA, SX4, DX4 and X-Series S: Y axis and cutting unit
Setting for 0.4 g with "Stroke limiter f. one-hand grease gun cpl." (03122499-xx)
