ASM Assembly Systems GmbH & Co KG Subject to change without notice 7/27/2015
Rupert-Mayer-Strasse 44
81379 Munich, Germany TI2015-07E03.doc Page 3 - 5
2. Order numbers for grease gun and accessories
Order the following item number:
03123777-xx One-handed grease gun cpl.f.400ml cartr.
Contains:
03121951-xx
One-handed grease gun f. 400 ml
cartridge1/8
(with straight 1/8“ pipe and hydraulic
mouthpiece)
1. x
03122953-xx
Hose w. hydraulic mouthpiece 1/8
1. x
03122499-xx
Stroke limiter f. one-hand grease gun cpl.
1. x
03122520-xx
Syringe f. grease nipple cpl.
(00309454-xx O-ring 4*1 P583 70)
1. x
03122519-xx
Syringe f. grease nipple
1. x
The hose / straight pipe need to be fitted to the grease gun
depending on the guide carriage / grease nipple that needs lubricating.
03121952-xx Lubricating grease BEM 34-132, 400g cartridge
00309454-xx O-ring 4*1 P583 70 A (for Syringe f. grease nipple cpl. 03122520-xx)
ASM Assembly Systems GmbH & Co KG Subject to change without notice 7/27/2015
Rupert-Mayer-Strasse 44
81379 Munich, Germany TI2015-07E03.doc Page 4 - 5
3. Using the grease gun.
3.1 Grease gun for 0.4 g with hose for ball-type grease nipple:
SIPLACE SX1_2: Y axis, X axis and cutting unit
SIPLACE HF-, X-Series, CA, SX4, DX4 and X-Series S: Y axis and cutting unit
Setting for 0.4 g with "Stroke limiter f. one-hand grease gun cpl." (03122499-xx)
ASM Assembly Systems GmbH & Co KG Subject to change without notice 7/27/2015
Rupert-Mayer-Strasse 44
81379 Munich, Germany TI2015-07E03.doc Page 5 - 5

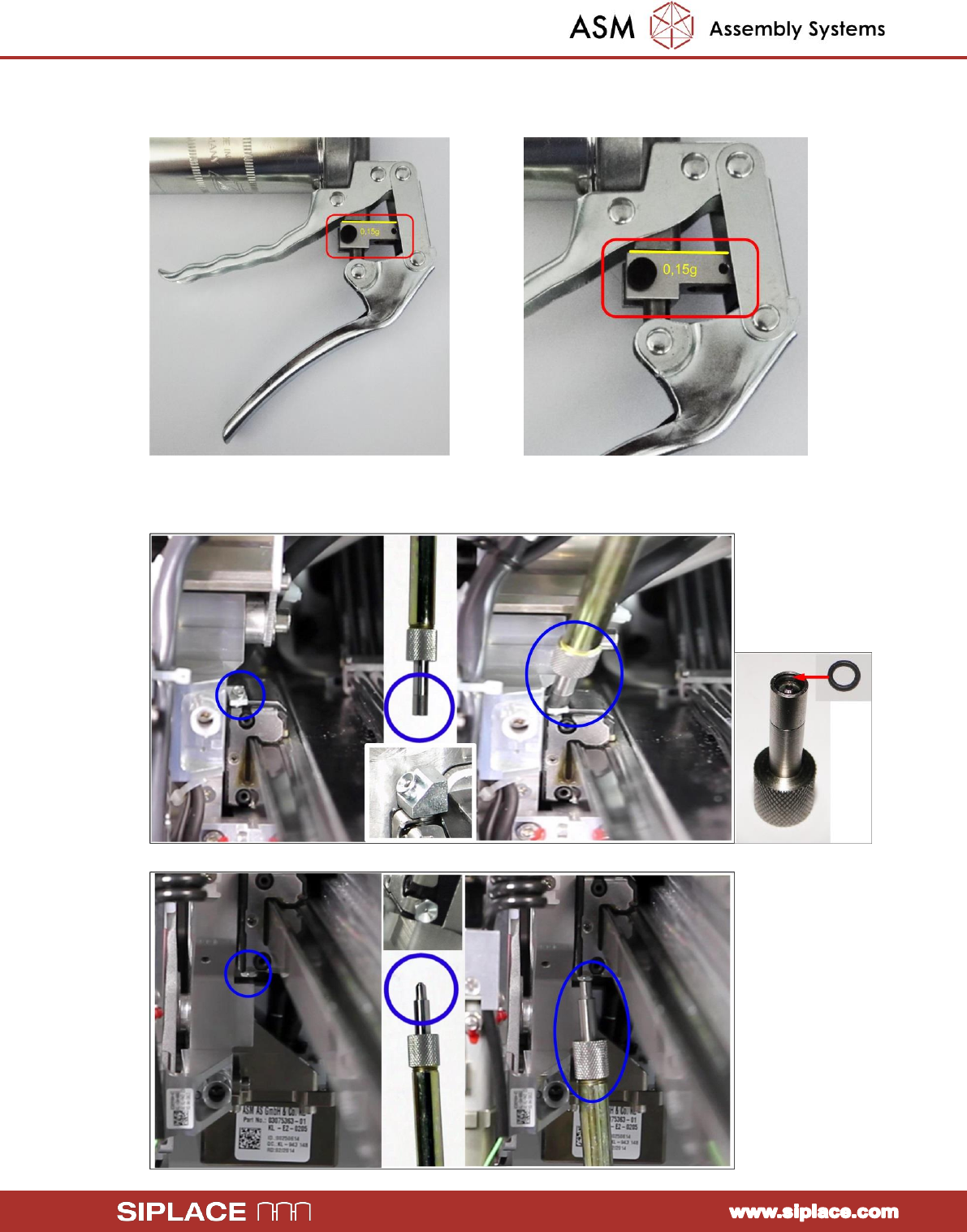

3.2 Grease gun for 0.15 g with rigid pipe nozzle for funnel-type grease nipple:
SIPLACE HF-, X-Series, CA, SX4, DX4 and X-Series S: X axis
Setting for 0.15 g with "Stroke limiter f. one-hand grease gun cpl." (03122499-xx)
Shown above with "Syringe f. grease nipple cpl." (03122520-xx)
This nozzle is sealed with an additional "O-ring 4*1 P583 70 A" 00309454-xx.
Shown below with "Syringe f. grease nipple" (03122519-xx)
