5 Electrics
5.2 Replacing the Beam Sensor Emitter Cable
124 Service Manual SIPLACE JTF-ML2 08/2017

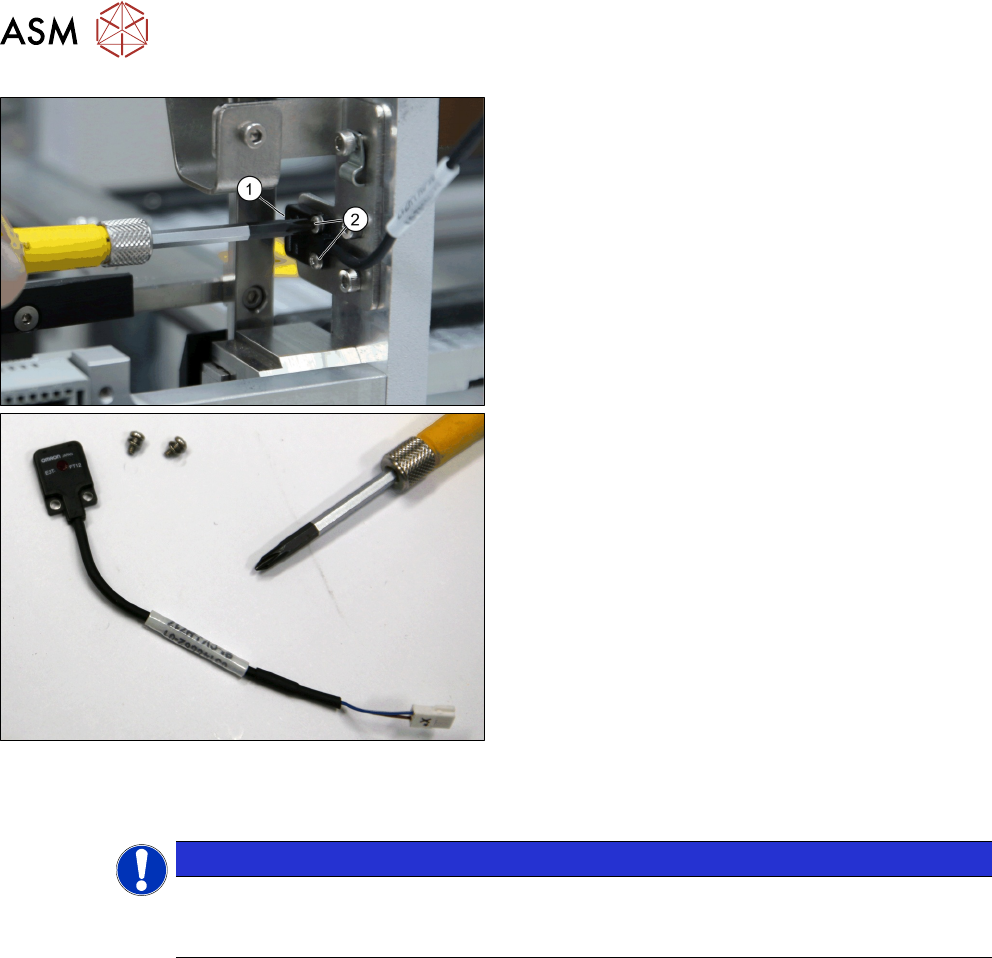

► Remove the two screws ISO 7045 - M2 x 4-
A2-50-H [03010197-xx] (2).
► Remove the Cable, through beam sensor emitter,
common [03146662-xx] (1).
Installation
► Follow the removal instructions in reverse order for installation.
NOTICE
Tray Position
Do a running sensor check when the replacement is completed to ensure the correct tray
position is achieved.
5 Electrics
5.3 Replacing the HMI LED Cable
Service Manual SIPLACE JTF-ML2 08/2017 125
5.3 Replacing the HMI LED Cable
Parts, Equipment and Tools
●
Standard tools
●
Cable, HMI LED assembly [03146655-xx]
Removal
► Switch off the machine, disconnect it from the power supply and secure it to prevent
unauthorized reactivation. Observe the instructions in section 1.2 "Preparatory Work..." [}11].
► Remove the Tower from the machine (see 2.1.2 "Removing Tower from Machine" [}21]).
► Remove the top cover (see 2.1.3 "Removing Tower Top Cover" [}25]).

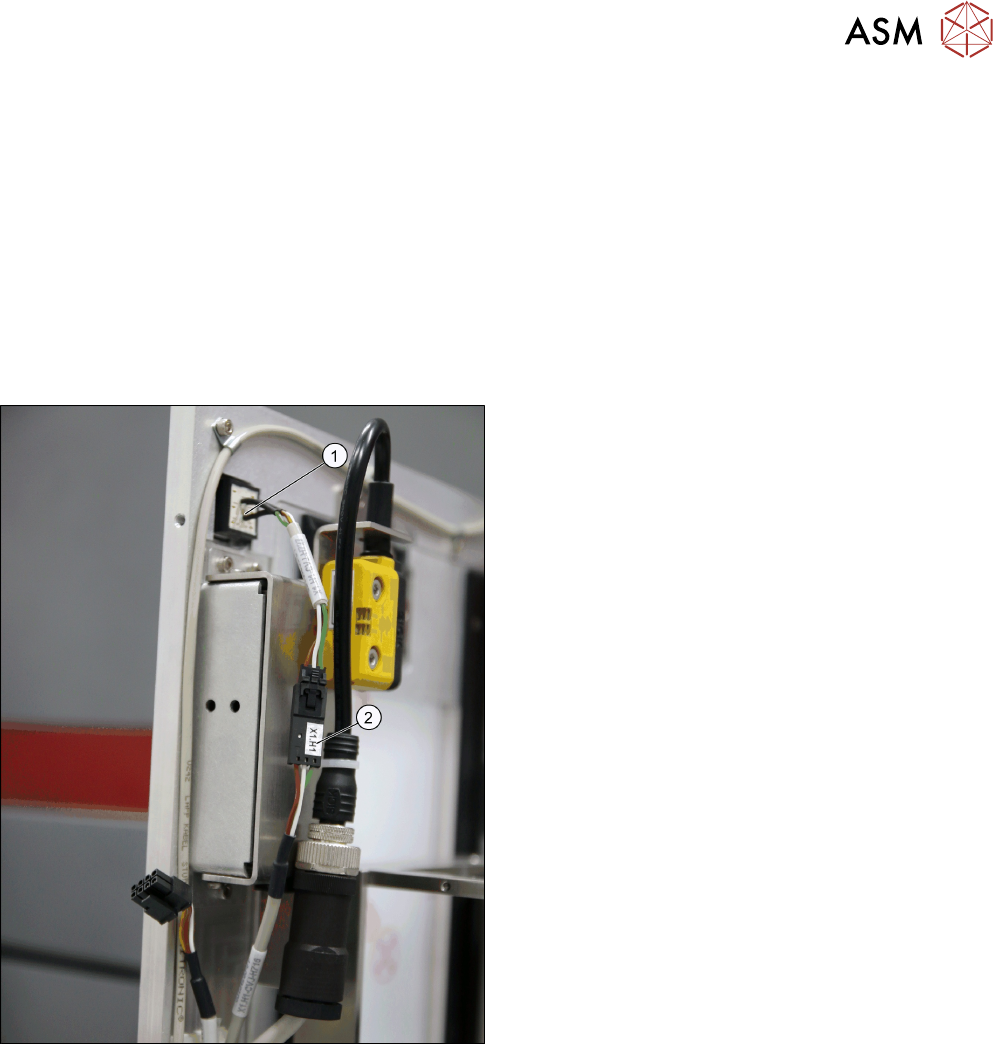

► Disconnect the plug X1.H1 (2) of the Cable, HMI
LED assembly [03146655-xx] (1).
5 Electrics
5.3 Replacing the HMI LED Cable
126 Service Manual SIPLACE JTF-ML2 08/2017

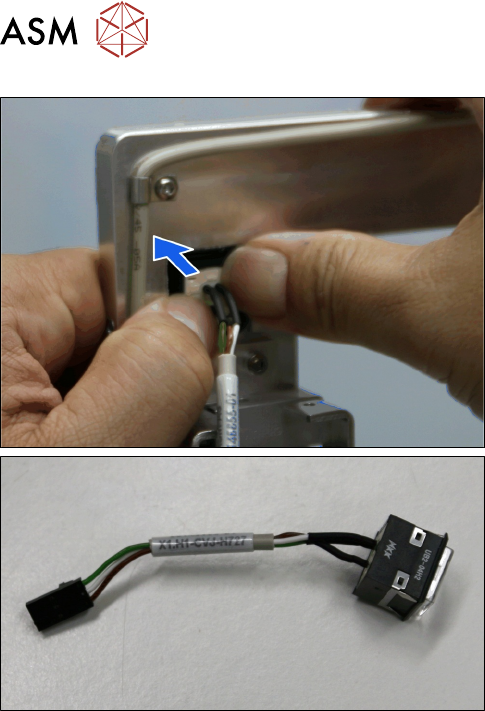

► Push the Cable, HMI LED assembly [03146655-
xx] through the hole to the outside of the tower.
Installation
► Follow the removal instructions in reverse order for installation.
