6 Magazine
6.3 Remove the Cassette from the SIPLACE JTF-ML2
144 Service Manual SIPLACE JTF-ML2 08/2017
6.3 Remove the Cassette from the SIPLACE JTF-ML2
Fig.30: Menu Locations
► Click the button to open the Setup Loca-
tions menu.
► Click the button to display the setup of
the table.
Fig.31: Menu Locations - Table
► Mark the JTF area .
► Click the Settings... button.
Fig.32: Move the Cassette into the Refill Position
► Move the cassette into the refill position. Click the
Refill position button and the Move to refill
position ... for the relevant cassette.
6 Magazine
6.3 Remove the Cassette from the SIPLACE JTF-ML2
Service Manual SIPLACE JTF-ML2 08/2017 145
Fig.33: Open Door
► Open the door(1) once the lift has reached the
refill position.
► Press the spring(2) down and pull the cassette
out on the rails.
Fig.34: Transportation Lock
► Secure the waffle pack trays with the transporta-
tion locks on both sides.
Fig.35: Take Off Cassette
► Lift off the cassette from the rails. Hold the cas-
sette horizontal and place it on a stable surface.
6 Magazine
6.4 Inserting the Cassette into the SIPLACE JTF-ML2
146 Service Manual SIPLACE JTF-ML2 08/2017

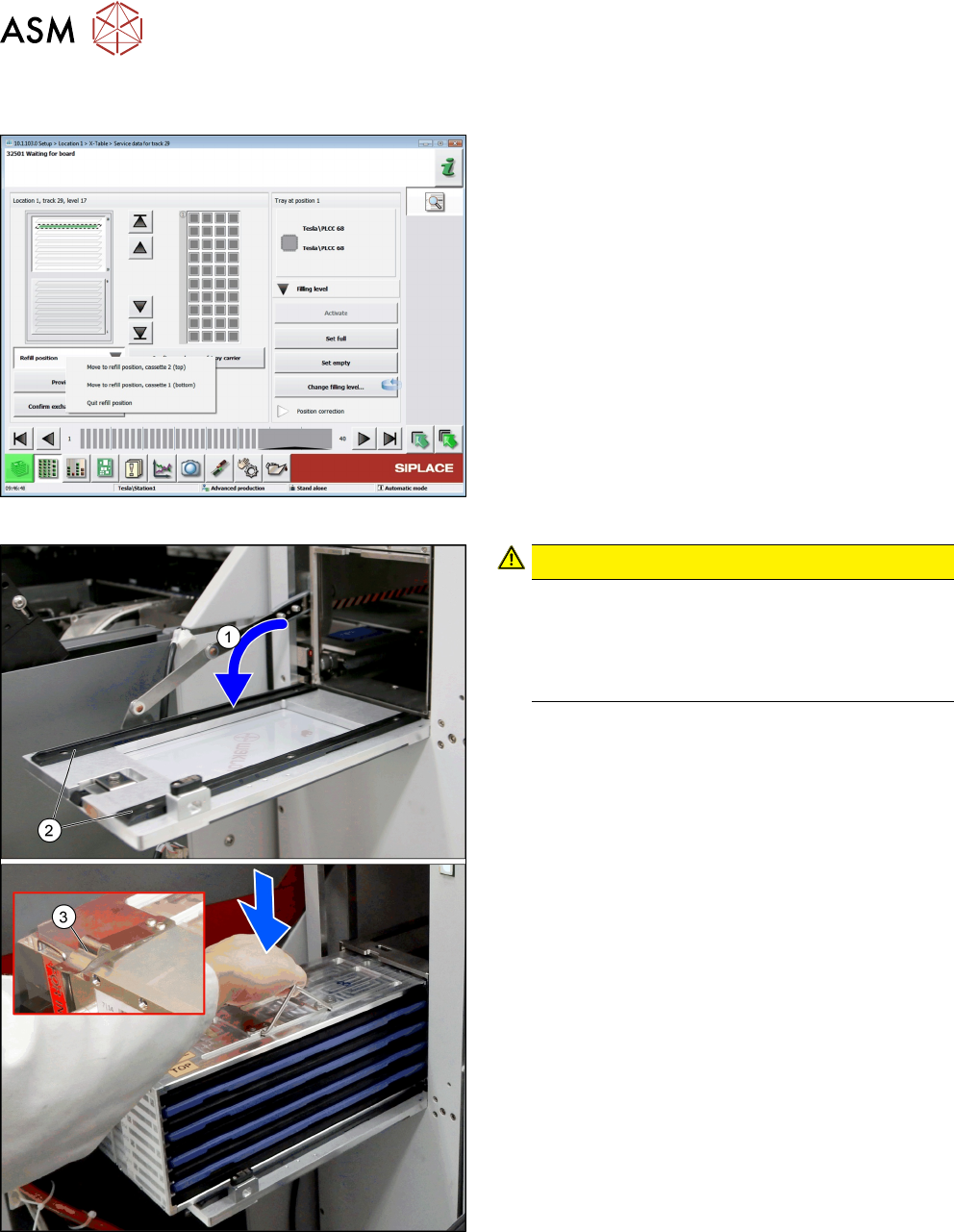

6.4 Inserting the Cassette into the SIPLACE JTF-ML2
Fig.36: Move the Cassette into the Refill Position
► Click the button Refill position and choose Quit
refill position.
Fig.37: Inserting the Cassette
CAUTION!
Avoid component jump
Improper or sudden inserting of the cassettes
may lead to component jump.
Always keep the cassette horizontal when lifting
and holding.
.
► Open the door(1).
► Place the cassette on the rails(2) on the inner
side of the door.
Observe the orientation. The spring(3) must
point outwards.
