2 General Tasks 2.1 Hardware Tasks 24 Service Manual SIPLACE JTF-ML2 08/2017 ► Grab the tower with one hand at the handle on the bottom and the other hand on top of the tower. ► Pull the Tower carefully parallel from the…
2 General Tasks
2.1 Hardware Tasks
Service Manual SIPLACE JTF-ML2 08/2017 23

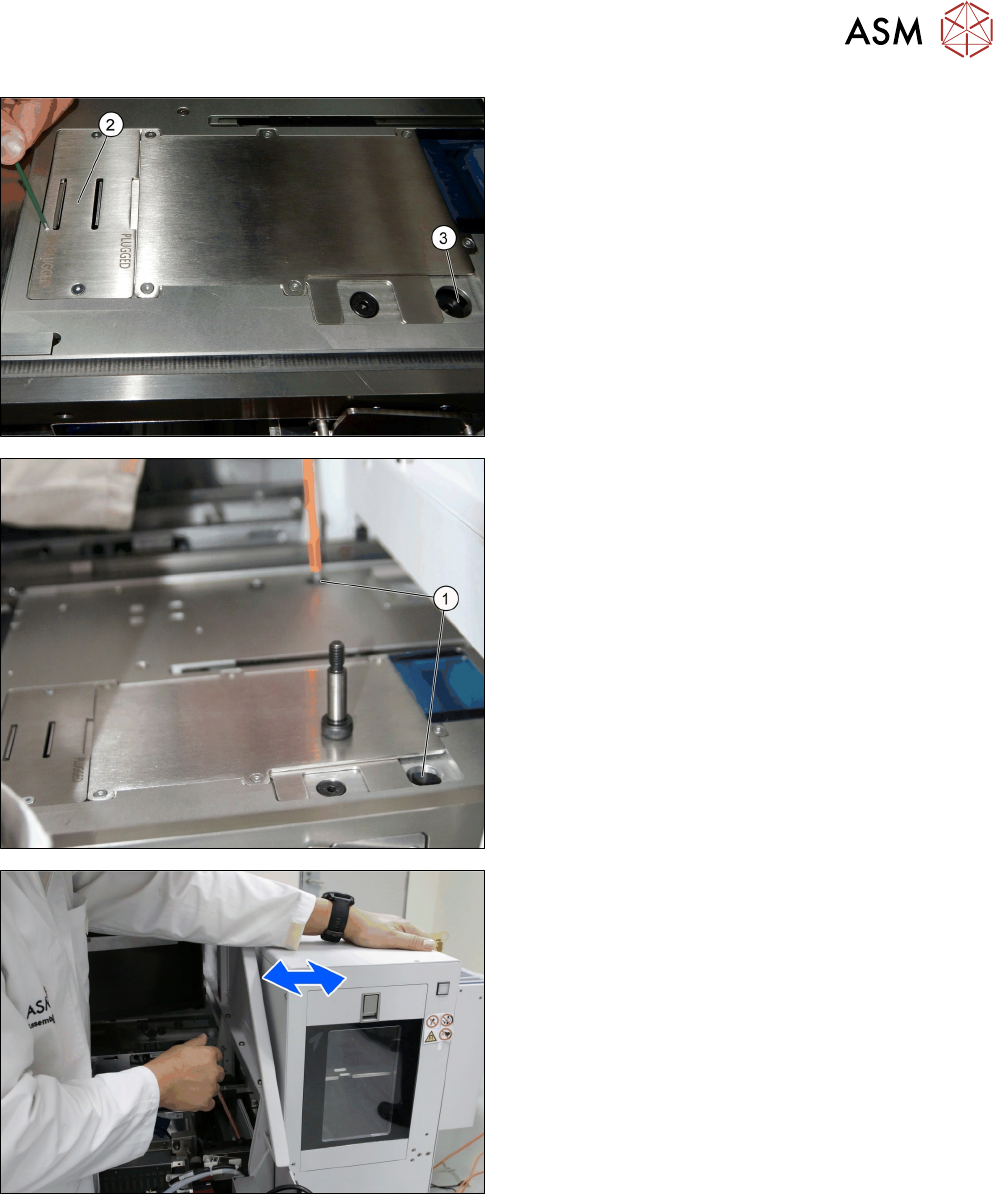

The cover now stays in the unplugged position (2).
One of the two screws ISO 7379 - 10 x 25-12.9
[03005652-xx] (3) is accessible.
► Remove the two screws ISO 7379 - 10 x 25-12.9
[03005652-xx] (1).
► Move the tower a bit while removing the screws
to reduce pressure on the screws.
2 General Tasks
2.1 Hardware Tasks
24 Service Manual SIPLACE JTF-ML2 08/2017
► Grab the tower with one hand at the handle on
the bottom and the other hand on top of the
tower.
► Pull the Tower carefully parallel from the slidings
out of the machine.
Installation
► Follow the removal instructions in reverse order for installation (See also 2.1.5 "Mounting the
Tower" [}27]).
2 General Tasks
2.1 Hardware Tasks
Service Manual SIPLACE JTF-ML2 08/2017 25
2.1.3 Removing Tower Top Cover
Parts, Equipment and Tools
●
Standard tools
Removal
► Switch off the machine, disconnect it from the power supply and secure it to prevent
unauthorized reactivation. Observe the instructions in section 1.2 "Preparatory Work..." [}11].
► Remove the tower from the machine (See 2.1.2 "Removing Tower from Machine" [}21])
► Remove the 12 screws (ISO 7380-2 M 4 x 6-
A2-70) [03099577-xx] (1).
