3 Tower Mechanics 3.5 Replacing the Urethane Bumpers 46 Service Manual SIPLACE JTF-ML2 08/2017 3.5 Replacing the Urethane Bumpers Parts, Equipment and Tools ● Standard tools ● Urethane bumpers [03146486-xx] Removal ► Swi…
3 Tower Mechanics
3.4 Replacing the Ball Screw
Service Manual SIPLACE JTF-ML2 08/2017 45
► Remove the bearing (1) from ball screw (2) in or-
der to lift the ball screw out of tower.
► Remove the four screws (1).
Installation
► Follow the removal instructions in reverse order for installation.
3 Tower Mechanics
3.5 Replacing the Urethane Bumpers
46 Service Manual SIPLACE JTF-ML2 08/2017
3.5 Replacing the Urethane Bumpers
Parts, Equipment and Tools
●
Standard tools
●
Urethane bumpers [03146486-xx]
Removal
► Switch off the machine, disconnect it from the power supply and secure it to prevent
unauthorized reactivation. Observe the instructions in section 1.2 "Preparatory Work..." [}11].
► Remove the tower from the machine (See 2.1.2 "Removing Tower from Machine" [}21])
► Remove the top cover (see 2.1.3 "Removing Tower Top Cover" [}25]).
► Remove the side cover (see 2.1.4 "Removing Side Cover" [}27]).
► Remove all cables from the PCBA, JFT-ML2 con-
trol board [03125534-xx].
1. X22; X8; X7; X6; X5
2. X16; X15
3. X23
4. X18; X19; X17
5. X4
► Remove the four screws ISO 4762 - M 3 x 6-
A2-70 [03042541-xx] (1).
► Remove the Plate f. PCBA Support [03129139-
xx] (2).
3 Tower Mechanics
3.5 Replacing the Urethane Bumpers
Service Manual SIPLACE JTF-ML2 08/2017 47

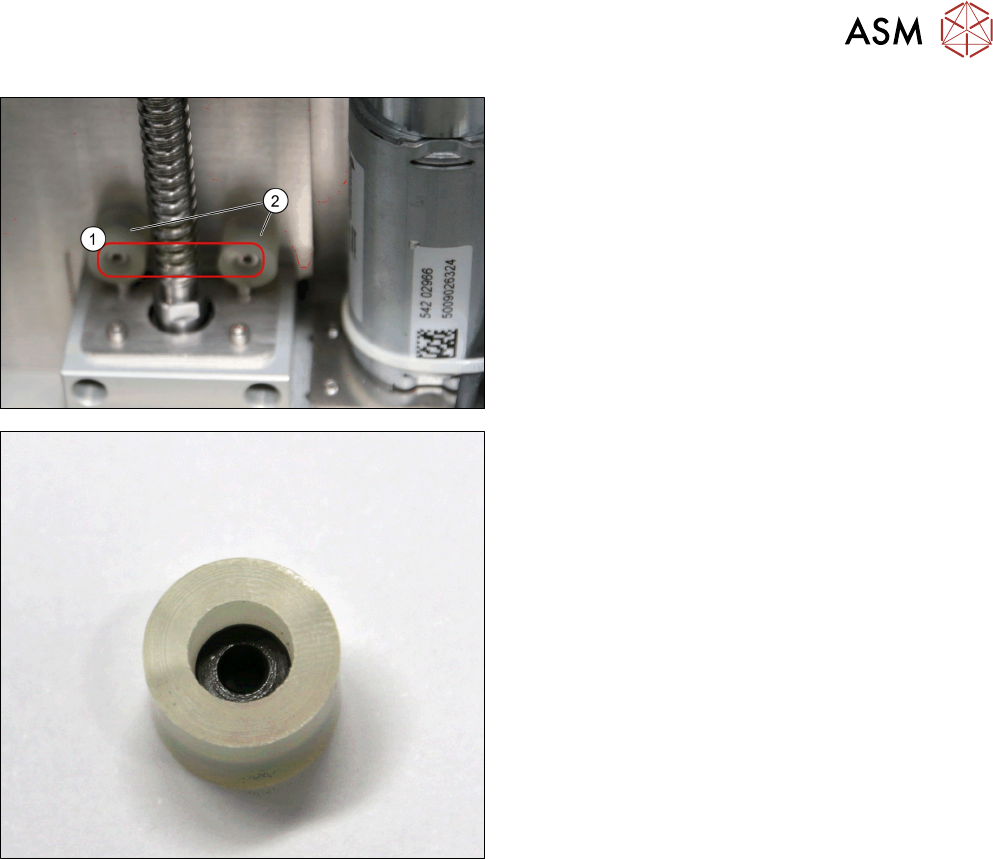

► Remove the two screws ISO 4762 - M 3 x 12-
A2-70 [03042544-xx] (1).
► Remove the two Urethane Bumpers
AZXSC15-12-M3 [03146486-xx] (2)
Urethane Bumper AZXSC15-12-M3 [03146486-xx]
Installation
► Follow the removal instructions in reverse order for installation.
