Getting S tarted SIPLACE Pro 14.1 (R17-1) 2 Program Overview 05/2017 Edition 2.2 The User Interface 15 2.2.3.2 Equipment 2 Fig. 2 - 8 Equpments - example: T ree view - Device s of Line Key Click on the icons to reach th …
2 Program Overview Getting Started SIPLACE Pro 14.1 (R17-1)
2.2 The User Interface 05/2017 Edition
14
2

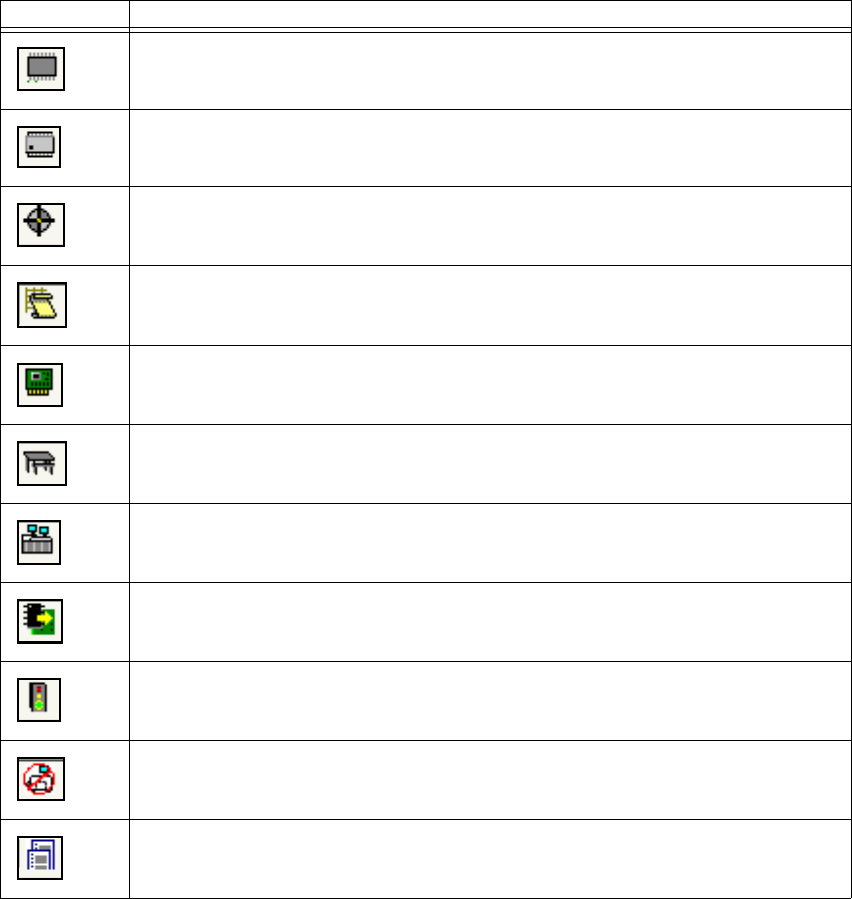

Symbol Product object
Component
Component Shape
Fiducials
Placement Lists
Boards
Tables
Setups
Printer Setups
Recipes
Jobs
Restrictions
Feeder Inventory
Getting Started SIPLACE Pro 14.1 (R17-1) 2 Program Overview
05/2017 Edition 2.2 The User Interface
15
2.2.3.2 Equipment
2

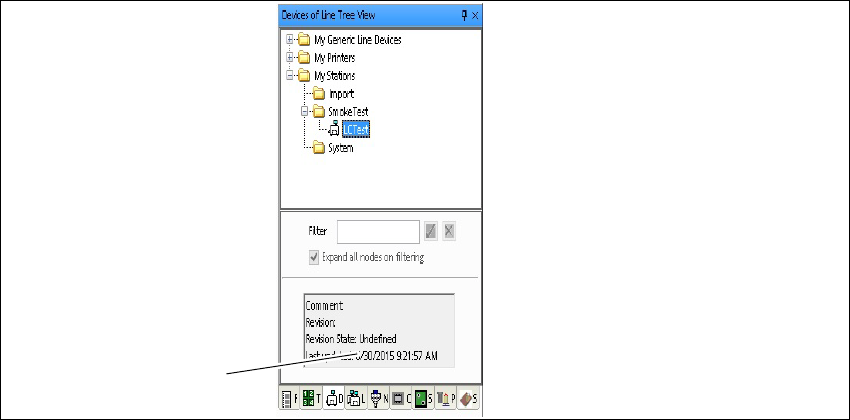

Fig. 2 - 8 Equpments - example: Tree view - Devices of Line
Key
Click on the icons to reach the required equipment object. 2
(1) Display area for comments and revision
state.
2
1
2 Program Overview Getting Started SIPLACE Pro 14.1 (R17-1)
2.2 The User Interface 05/2017 Edition
16
2

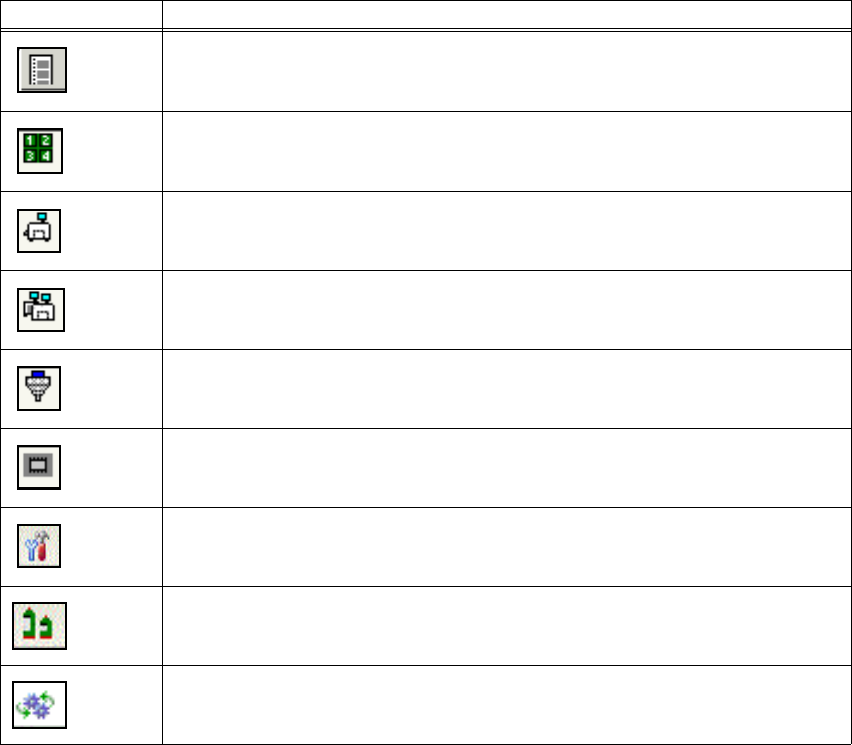

Symbol Equipment
Feeders
Waffle Pack Trays
Devices of Line (Stations, Printers and Generic Line Devices)
Lines
Nozzles
Component Packages
Tools (Vacuum Tool Types, Support Pin Lists)
Materials (Process Materials)
Processes (Printer Processes)
