2 Program Overview Getting Started SIPLACE Pro 14.1 (R17-1)
2.2 The User Interface 05/2017 Edition
18
2.2.5 View Areas and Editing Areas
The view area displays an individual window for each opened or new object, in which the object
is shown as an image. The editing area contains tabs in which you can edit the relevant data. The
tabs are object-specific and may vary between objects. Additional functions will be made available
via the toolbar where applicable. 2
Multiple windows can be shown at the same time in the view area. One of these windows is always
active in the foreground. The corresponding tabs for the active window are shown in the editing
area. 2
2

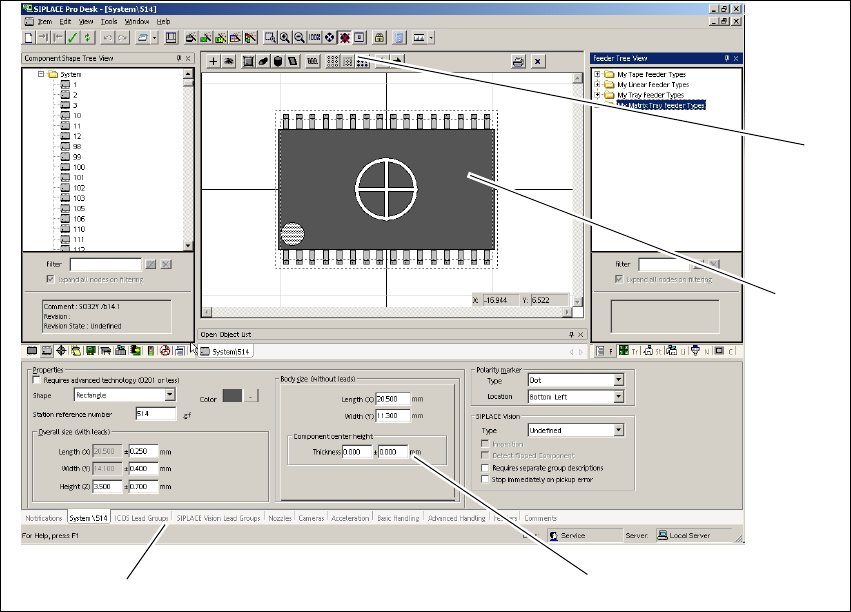

Fig. 2 - 10 View area/editing area - example: Component Shape Editor
Key
2
(1) View Area (2) Editing Area
(3) Tabs (for the Component Shape Editor
example)
(4) Toolbar (for the Component Shape Editor
example)
3
2
1
4
Getting Started SIPLACE Pro 14.1 (R17-1) 2 Program Overview
05/2017 Edition 2.2 The User Interface
19
2.2.6 Accessing the Context Menu by "Right-Clicking" the Mouse
"Right-click" the mouse to access frequently used functions for the current view and active object
(context menus).
2
2

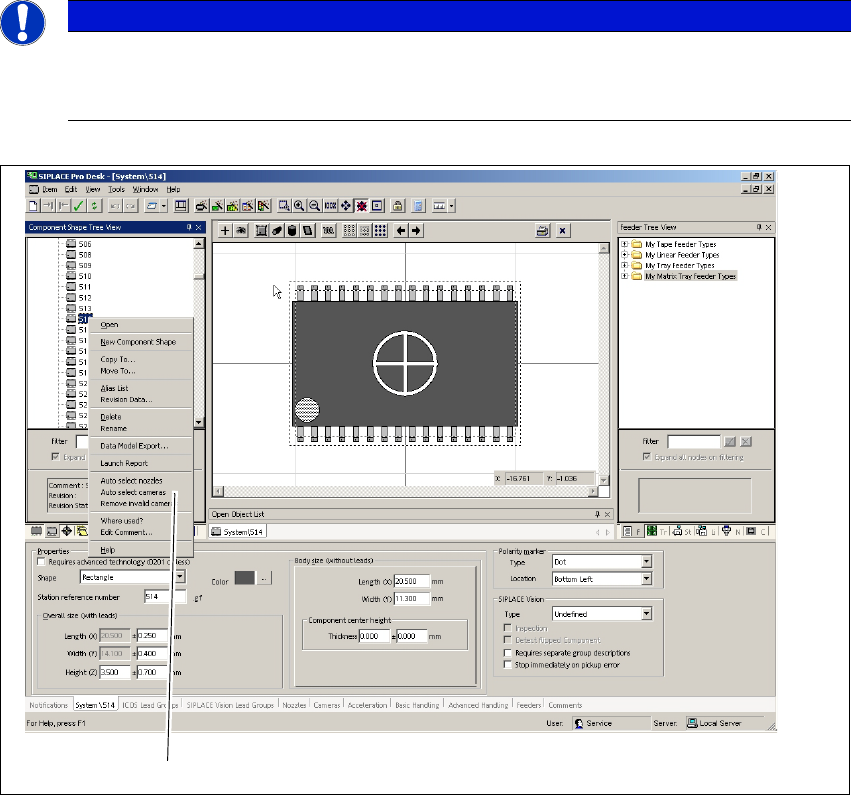

Fig. 2 - 11 Context menu - example: Tree view - Component Shapes
Key
Note
Test the right mouse button in every view or dialog. Optimize your work with this range
of useful or frequently used functions for your current view.
(1) Context menu in the component shape
tree view
2
1
2 Program Overview Getting Started SIPLACE Pro 14.1 (R17-1)
2.3 Presettings and Configurations 05/2017 Edition
20
2.2.7 Reset Default Layout for User Interface

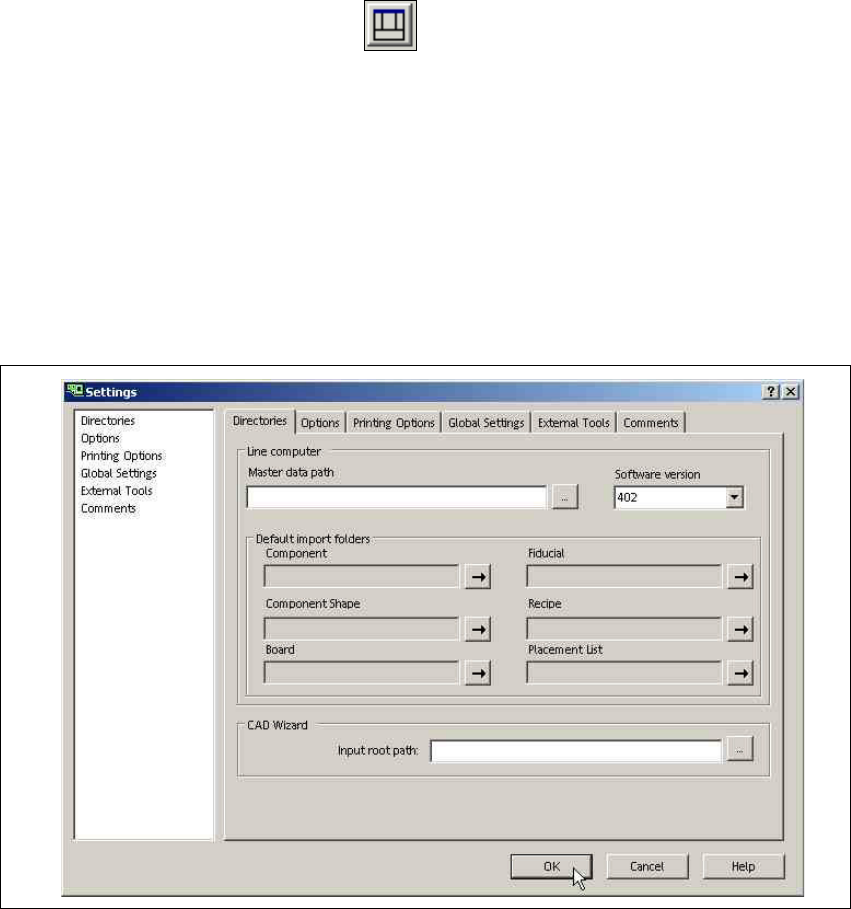

If you have changed the arrangement of controls or disabled items in the user interface, the default
state can be restored by clicking on the icon in the toolbar. 2
2
2.3 Presettings and Configurations
2.3.1 Settings
Global settings and function-related presettings can be defined in the Tools menu, at => Settings.
Please refer to the Online Help for details about the individual tabs. 2
Fig. 2 - 12 Dialog box - Settings
2.3.2 Changing the Language
The language for user interface texts can be changed in the Tools menu, at => Change Lan-
guage.... 2
