2.3.4 Import Standard Shape Library
This Wizard helps you to import the standard library with shape and fiducial data. This data is
made available in XML format. 2
After standard installation (without changing the target directory), these data will be in the SI-
PLACE Pro target directory on your computer (C:\Program Files\SIPLACE\SIPLACE
Pro\Standard Library).
Select the menu Tools => Import => Standard Shape Library... to import this data.
Fig. 2 - 14 Import Standard Shape Library
Getting Started SIPLACE Pro 14.1 (R17-1) 2 Program Overview
05/2017 Edition 2.3 Presettings and Configurations
23
2.3.5 Adjust Shapes and Fiducials for X Series
Use this tool if you want to edit existing component shapes, components or fiducial types for the
first time with machines running SIPLACE Vision. You can also use it if you have imported version
2.x XML data, line computer master data or CAD data. 2
2
In addition, this tool can be used to change the properties of many objects of a certain type at the
same time. Simply select the objects concerned and apply the required function to change the
properties needed (e.g. add cameras prompted for component shapes) 2
2

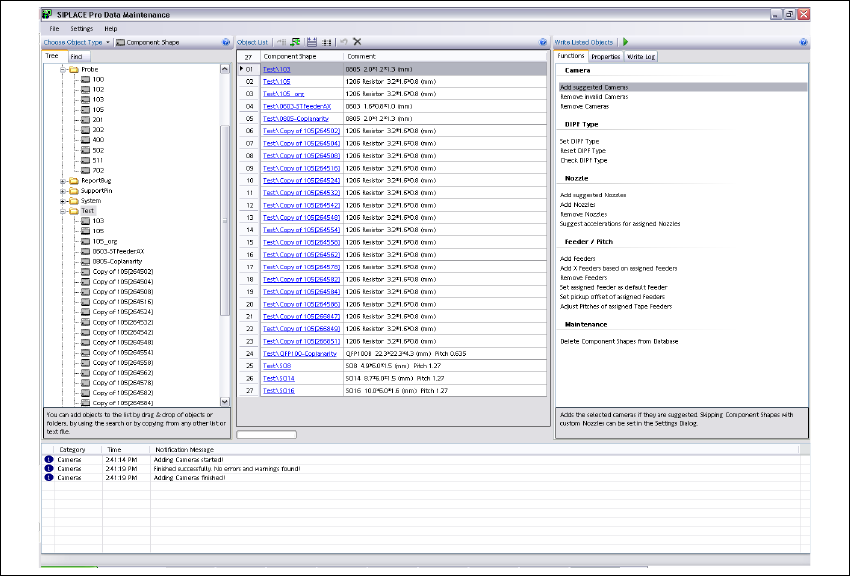

Select Start => Programs => SIPLACE Pro => Data Maintenance from the Windows Start
menu.
Fig. 2 - 15 SIPLACE Pro Data Maintenance
2
2 Program Overview Getting Started SIPLACE Pro 14.1 (R17-1)
2.4 Overview of the SIPLACE Pro Objects 05/2017 Edition
24
2.4 Overview of the SIPLACE Pro Objects
Fig. 2 - 16 Overview of the SIPLACE Pro Objects
