EQUIPMENT REQUIRED Continuous vacuum desoldering system Desoldering tip MATERIALS Flux Cleaner Tissue/wipes PROCEDURE 1. Remove conformal coating (if any) and clean work area of any contamination, oxides, residues or flu…
NOTES
IPC-7711A
Number: 3.10.4
Revision:
Date: 2/98
Subject: PLCC Socket Removal
Page2of2
Copyright Association Connecting Electronics Industries
Provided by IHS under license with IPC
Not for Resale
No reproduction or networking permitted without license from IHS
--``,``,-`-`,,`,,`,`,,`---
EQUIPMENT REQUIRED
Continuous vacuum desoldering system
Desoldering tip
MATERIALS
Flux
Cleaner
Tissue/wipes
PROCEDURE
1. Remove conformal coating (if any) and clean work area of any contamination,
oxides, residues or fluxes.
2. Install desoldering tip into handpiece.
3. Start with tip temperature of approximately 315°C and change as necessary.
4. Apply flux to all land areas. (See Figure 1.)
5. Lower tip contacting end of land(s) with tip. (See Figure 2.)
6. Confirm solder melt of contacted land(s), apply vacuum and sweep tip over land
holding tip in contact with solder to extract excess solder from PWB land(s).
(See Figure 3.)
7. Lift tip at end of last row, hold vacuum to clear all molten solder from the heater
chamber. (See Figure 4.)
8. Repeat for all lands.
9. Return handpiece to its stand.
10. Clean lands as required for component replacement.
NOTE
The individual method is the method of choice for fine pitch land patterns.

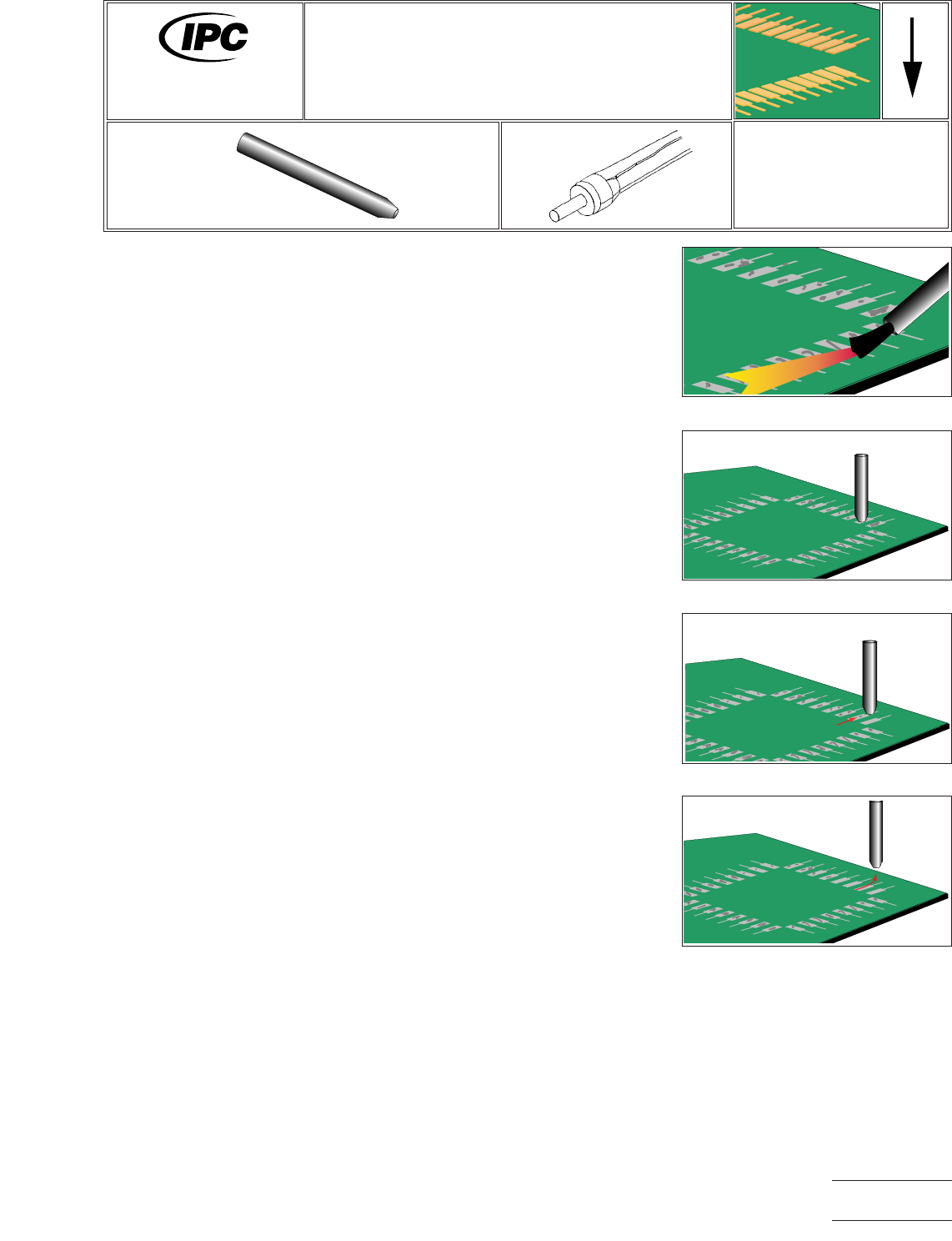

Figure 1 Flux Lands
Figure 2 Position Tip
Figure 3 Melt Solder & Apply Vacuum
Figure 4 Lift Handpiece
7711A
Rework of
Electronic Assemblies
Revision:
Date: 2/98
Surface Mount Land Preparation
Individual Method
Number: 4.1.1
Product Class: R, F, W, C
Skill Level: Intermediate
Level of Conformance: High
