QUIPMENT REQUIRED Soldering system Chisel tip Vacuum pick-up tool OPTIONAL EQUIPMENT Tweezers MATERIALS Flux-cored solder Flux Cleaner PROCEDURE 1. Install chisel tip into soldering handpiece. 2. Start with temperature o…
NOTES
IPC-7711A
Number: 5.5.2
Revision:
Date: 2/98
Subject: Gull Wing Installation
Page2of2
Copyright Association Connecting Electronics Industries
Provided by IHS under license with IPC
Not for Resale
No reproduction or networking permitted without license from IHS
--``,``,-`-`,,`,,`,`,,`---
QUIPMENT REQUIRED
Soldering system
Chisel tip
Vacuum pick-up tool
OPTIONAL EQUIPMENT
Tweezers
MATERIALS
Flux-cored solder
Flux
Cleaner

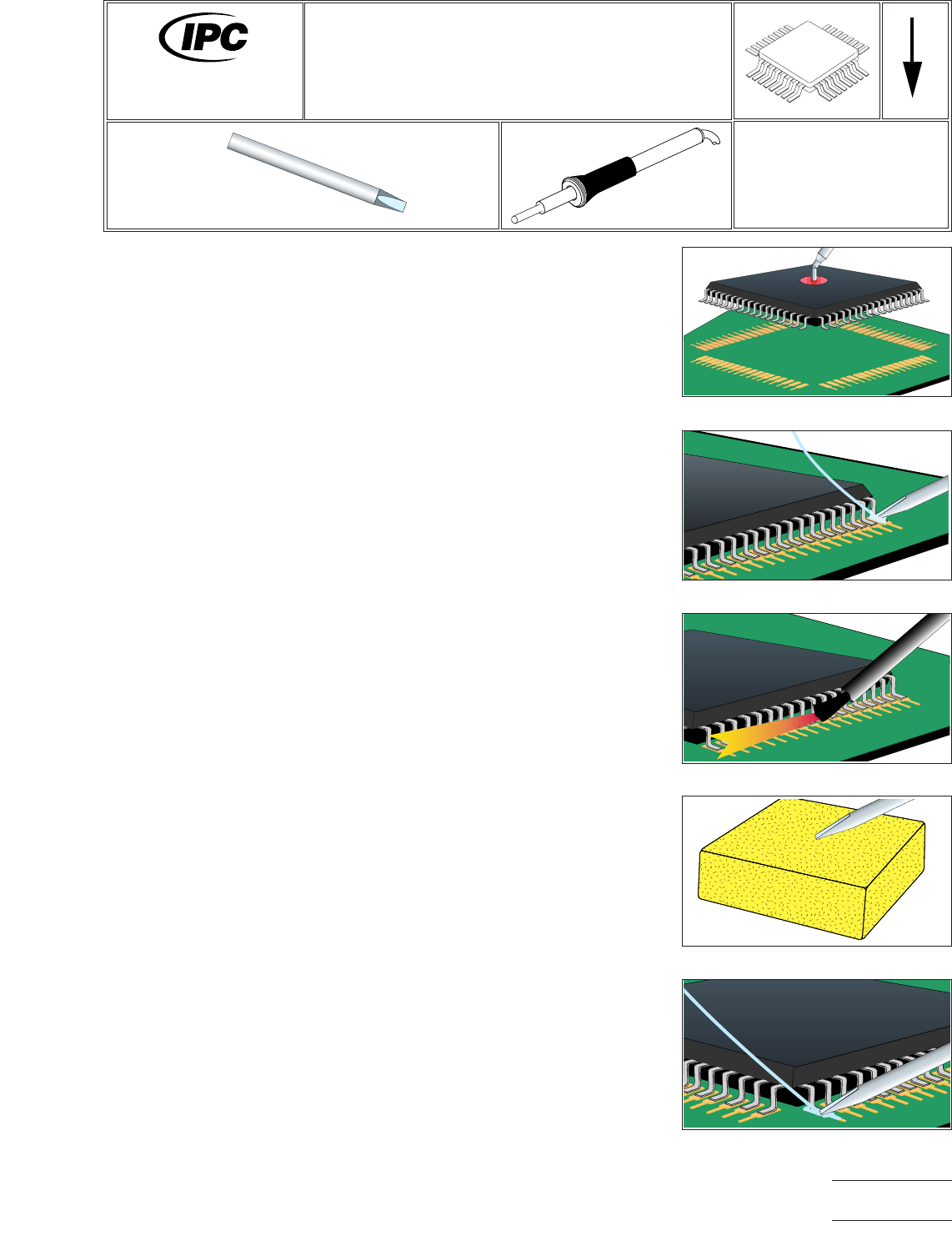

PROCEDURE
1. Install chisel tip into soldering handpiece.
2. Start with temperature of approximately 315°C and change as necessary.
3. Position component ensuring proper lead-to-land alignment. Hold component in
place using the vacuum pick up tool or tweezers. (See Figure 1.)
4. Apply flux and tack solder opposing corner leads. (See Figure 2.)
5. Apply flux to remaining lead/land areas of the row to be soldered. (See Figure
3.)
6. Clean tip using a damp sponge. (See Figure 4.)
7. Position chisel tip on lead. Apply solder to side of lead/land area to form proper
solder fillet. (See Figure 5.)
8. Repeat step 7 on remaining leads of component.
9. Re-tin chisel tip with solder.
10. Clean, if required, and inspect.
Figure 1 Position Component
Figure 2 Tack Lead
Figure 3 Apply Flux
Figure 4 Clean Tip
Figure 5 Solder Leads
7711A
Rework of
Electronic Assemblies
Revision:
Date: 2/98
Gull Wing Installation
Point-to-Point Method
Number: 5.5.3
Product Class: R, F, W, C
Skill Level: Intermediate
Level of Conformance: High
Material in this manual, IPC-7711 Rework of Electronic Assemblies, was voluntarily established by Technical Committees of
IPC. This material is advisory only and its use or adaptation is entirely voluntary. IPC disclaims all liability of any kind as to the
use, application, or adaptation of this material. Users are also wholly responsible for protecting themselves against all claims
or liabilities for patent infringement. Equipment referenced is for the convenience of the user and does not imply endorsement
by IPC.
Page1of2
Copyright Association Connecting Electronics Industries
Provided by IHS under license with IPC
Not for Resale
No reproduction or networking permitted without license from IHS
--``,``,-`-`,,`,,`,`,,`---
NOTES
IPC-7711A
Number: 5.5.3
Revision:
Date: 2/98
Subject: Gull Wing Installation
Page2of2
Copyright Association Connecting Electronics Industries
Provided by IHS under license with IPC
Not for Resale
No reproduction or networking permitted without license from IHS
--``,``,-`-`,,`,,`,`,,`---
