EQUIPMENT REQUIRED Soldering system Flat blade surface mount installation tip Vacuum pick-up tool Damp sponge OPTIONAL EQUIPMENT Tweezers MATERIALS Flux-cored solder (0.7 mm suggested) Flux Cleaner PROCEDURE 1. Install s…
NOTES
IPC-7711A
Number: 5.5.6
Revision:
Date: 2/98
Subject: Gull Wing Installation
Page2of2
Copyright Association Connecting Electronics Industries
Provided by IHS under license with IPC
Not for Resale
No reproduction or networking permitted without license from IHS
--``,``,-`-`,,`,,`,`,,`---
EQUIPMENT REQUIRED
Soldering system
Flat blade surface mount installation tip
Vacuum pick-up tool
Damp sponge
OPTIONAL EQUIPMENT
Tweezers
MATERIALS
Flux-cored solder (0.7 mm suggested)
Flux
Cleaner
PROCEDURE
1. Install selected flat blade tip into soldering handpiece.
2. Start with tip temperature of approximately 315°C and change as necessary.
3. Position component ensuring proper lead-to-land alignment. Hold component in
place using the vacuum pick-up tool or tweezers. (See Figure 1.)
4. Apply flux and tack solder opposing corner leads. (See Figure 2.)
5. Apply flux to remaining lead/land areas of the row to be soldered. (See Figure
3.)
6. Cut a piece of flux-cored solder approximately 3/4 the length of one side of the
component.
7. Place the piece of solder onto the lead/land junctions of the side to be soldered.
(See Figure 4.)
8. Clean tip using a damp sponge.
9. Place tip on the first lead/land junction of the side. Observe solder melt. Slowly
move tip along remaining lead/land junctions to form proper solder fillets at each
joint. (See Figure 5.)
10. Repeat steps5-9onremaining sides of component.
11. Re-tin tip.
12. Clean, if required, and inspect.

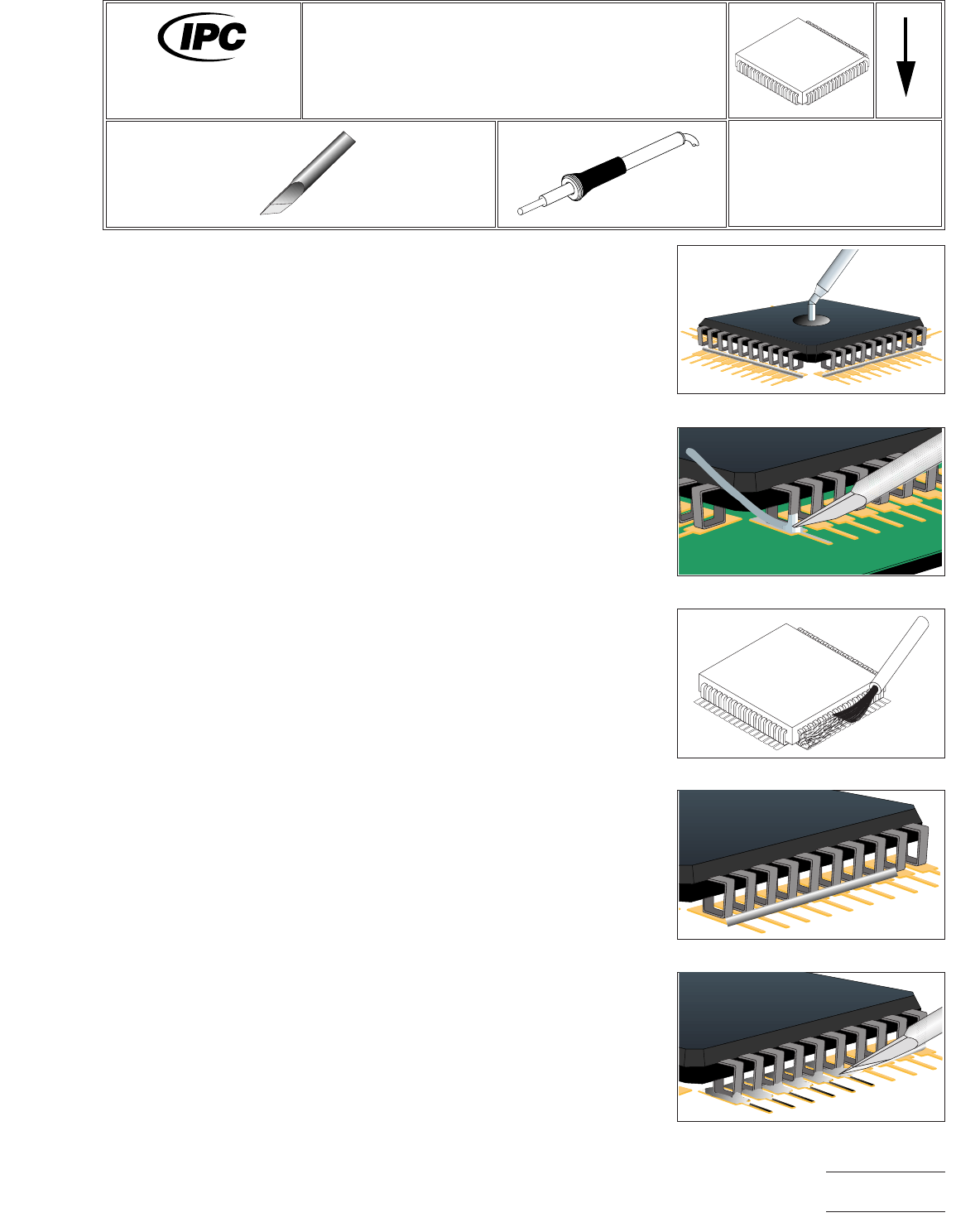

Figure 1 Position Component
Figure 2 Tack Lead
Figure 3 Apply Flux
Figure 4 Solder Application
Figure 5 Solder Leads
7711A
Rework of
Electronic Assemblies
Revision:
Date: 2/98
J-Lead Installation
Wire Solder Method
Number: 5.6.1
Product Class: R, F, W, C
Skill Level: Advanced
Level of Conformance: High
