This method is used to repair damaged and lifted lands. The lifted lands are repaired

with dry film epoxy. They are re-bonded to the printed wiring board surface using a

bonding press or bonding iron.

CAUTION

It is essential that the board surface be extremely smooth and flat. If the base board

is damaged see appropriate procedure.

REFERENCES

2.1 Handling Electronic Assemblies

2.2 Cleaning

TOOLS & MATERIALS

Ball Mills

Bonding Iron

Bonding System

Bonding Tips

Cleaner

Dry Film Adhesive

Polyimide Tape

Knife

Microscope

Scraper

Tweezers

Wipes

PROCEDURE

1. Clean the area.

2. Remove any obstructions that prevent the lifted land from making contact with

the base board material.

3. Use the knife and scrape off any epoxy residue, contamination or burned mate-

rial from the board surface.

4. Clean the area.

5. Cut out a piece of bonding film that matches the area of the lifted land. Be

careful not to contaminate the dry film epoxy with materials that could reduce

the bond strength.

NOTE

Dry film adhesive thickness should be selected to meet the requirements of the

printed wiring board.

6. Place the dry film under the lifted land. (See Figure 1).

7. Place a piece of Polyimide tape over the lifted land and press the land down into

contact with the adhesive film. (See Figure 2).

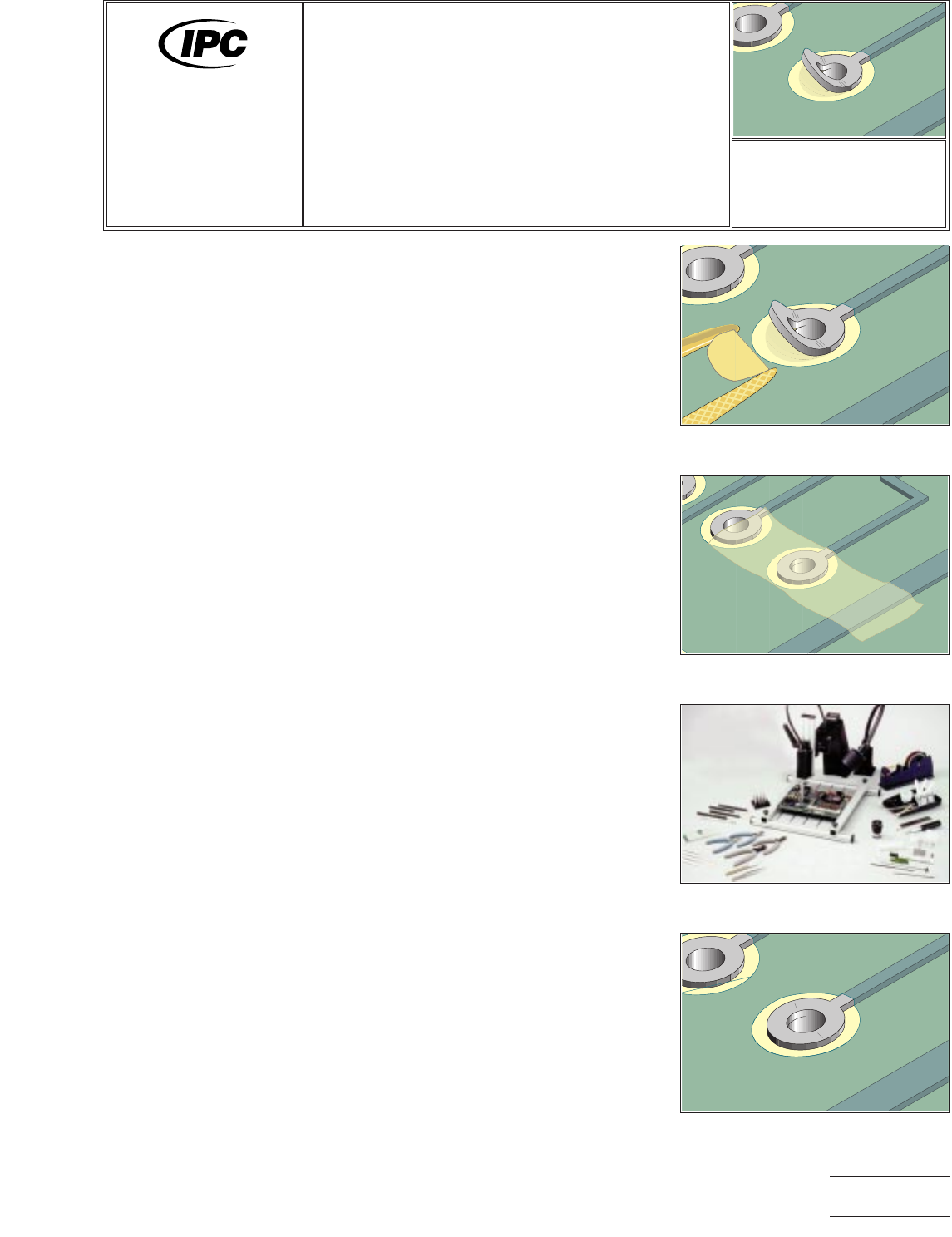

Figure 1 Cut out dry ﬁlm material to

match the area of the lifted land.

Figure 2 Place tape over the lifted

land.

Figure 3 Bond the land down using a

commercially available system.

Figure 4 Completed repair.

7721A

Repair and

Modification of

Printed Boards and

Electronic Assemblies

Revision:

Date: 2/98

Lifted Land Repair,

Film Adhesive Method

Number: 4.4.2

Product Class: R, F

Skill Level: Advanced

Level of Conformance: Medium

Material in this manual was voluntarily established by Technical Committees of IPC. This material is advisory only and its use

or adaptation is entirely voluntary. IPC disclaims all liability of any kind as to the use, application, or adaptation of this material.

Users are also wholly responsible for protecting themselves against all claims or liabilities for patent infringement. Equipment

referenced is for the convenience of the user and does not imply endorsement by IPC.

Page1of2

Provided by IHS under license with IPC

Not for Resale

No reproduction or networking permitted without license from IHS

--``,``,-`-`,,`,,`,`,,`---

8. Select a bonding tip with a shape to match the shape of the lifted land.

NOTE

The bonding tip should be as small as possible but should completely cover the

entire surface of the new land.

9. Position the printed wiring board so that it is flat and stable. Gently place the hot

bonding tip onto the tape covering the new land. Apply pressure and heat as

recommended in the manual of the repair system or repair kit. (See Figure 3).

10. After the bonding cycle remove the tape used for alignment. The film is fully

cured. Carefully clean the area and inspect the land.

NOTE

Double sided and multilayer printed wiring boards, may require an eyelet to

restore the through connection. Refer to section 5.0 Plated Hole Procedures.

11. Carefully remove any excess bonding film inside the plated hole using a ball mill

or drill bit. Turn the ball mill or drill bit by hand to prevent damage to the wall of

the plated through hole.

12. Install the proper component and solder in place.

NOTE

This method is used to repair a lifted land, but the repaired land may not have

an intermetallic connection to the remaining plated hole. The solder joint of the

replaced component will restore the integrity of the electrical connection or an

eyelet or buss wire may be used. See Plated Hole Repair Procedures.

13. Replace surface coating to match prior coating as required.

EVALUATION

1. Visual examination and tape test per IPC-TM-650, Test Method 2.4.1.

2. Electrical tests as applicable.

NOTES

IPC-7721A

Number: 4.4.2

Revision:

Date: 2/98

Subject: Lifted Land Repair, Film Adhesive Method

Page2of2
