This method is used to replate edge contacts by selective swab plating. Edge con-
tacts may require replating if they become contaminated with solder or are scratched
during handling. Other applications may arise when the plating on the edge contacts
does not meet the minimum thickness specification or if the specification changes.
This electroplating process uses a DC power supply. One lead is connected to the
connector edge contacts that need plating. A second lead is connected to the plat-
ing probe. The plating probe has an anode fastened to the tip. The anode has
absorbent wrapping. The anode is dipped into high-speed proprietary plating solu-
tions. When the saturated anode is swabbed across the printed wiring board con-
nector edge contacts, the metal contained in the solution is plated wherever electri-
cal contact is made. Prior to replating any solder contamination must be removed.
CAUTION
This method can be used to replate any metal surface including connector edge
contacts, but it is essential that the surface to be plated is free of deep scratches,
nicks, pin holes or other defects. If the edge contacts need to be replaced see
appropriate procedure.
SAFETY
A thorough review of this method should be made before repairs are attempted.
Technicians should become familiar with the tools included and should practice on
scrap printed wiring boards
To expect the best results a clean work environment is essential. A smooth work
surface and good lighting are recommended. Safety glasses and safety gloves
should always be worn when handling hazardous chemicals.
The work area should be adequately ventilated. It is particularly important to have
adequate ventilation when using gold solution, since gold solution contains a very
small percentage of free cyanide. If ventilation is not adequate, use a fan to move
fumes away from the operator.
CAUTION
It is essential to follow the manufacturer’s instructions supplied with the plating
equipment.
REFERENCES
2.1 Handling Electronic Assemblies
2.2 Cleaning
Figure 1 Apply tape.
Figure 2 Flow solder.
Figure 3 Solder stripping solution.
Figure 4 Rinse.
7721A
Repair and
Modification of
Printed Boards and
Electronic Assemblies
Revision:
Date: 2/98
Edge Contact Repair,
Plating Method
Number: 4.6.3
Product Class: R, F, W, C
Skill Level: Advanced
Level of Conformance: High
Material in this manual was voluntarily established by Technical Committees of IPC. This material is advisory only and its use
or adaptation is entirely voluntary. IPC disclaims all liability of any kind as to the use, application, or adaptation of this material.
Users are also wholly responsible for protecting themselves against all claims or liabilities for patent infringement. Equipment
referenced is for the convenience of the user and does not imply endorsement by IPC.
Page1of6
Copyright Association Connecting Electronics Industries
Provided by IHS under license with IPC
Not for Resale
No reproduction or networking permitted without license from IHS
--``,``,-`-`,,`,,`,`,,`---
TOOLS & MATERIALS
Abrasive Pad
Board Support
Burnisher
Cleaner
Cleaner Wipes
Connector Edge
Plating System
Conductive Pen
Desoldering Braid or
Desoldering System
Eraser Stick
Gloves, Antistatic
Polyimide Tape
Knife
Liquid Flux
Peel Testing Tape
Pin Fixtures
Plating Anodes
Plating Cables
Plating Probe
Plating Solution, Gold
Plating Solution, Nickel
Plating Solution, Electroclean
Plating Solution, Solder Strip
Plating Tape
Power Supply
Probe Clip
Rinse Bottle
Rinse Tray
Safety Glasses
Solder
Solder Iron
Solution Cups
Solution Tray
Swab
Thickness Measuring System,
Gold and Nickel
Water/Air Sprayer
Wire, Buss, 30 AWG
Work Sink
PREPARATION − Remove Solder Contamination
CAUTION
Safety glasses and safety gloves should always be worn when handling hazardous
chemicals. Do not work within a small enclosed room without supplemental ventila-
tion. If ventilation is not adequate, use a fan to move fumes away from the operator.
1. Clean the rework area.
2. Apply plating tape to the printed wiring board surface surrounding the area to
be reworked. (See Figure 1.) The plating tape will protect adjacent components
and the printed wiring board surface from unwanted exposure to stripping and
plating solutions.
3. Flow solder over the entire area of any contacts that have contamination using
a soldering iron. This provides a more even surface when plating. Remove the
bulk of the solder contamination using desoldering tools or desoldering braid.
(See Figure 2.)
4. Clean the area.
5. Place the printed wiring board on the board support so that the leading edge
overhangs the rinse tray.
6. Swab the solder stripping solution over the solder contamination using a swab.
Swab the surface until all remaining solder has been stripped off. (See Figure 3.)
7. Thoroughly rinse the entire area with water. (See Figure 4.)
8. Mildly buff the contacts using abrasive pad. Mild buffing will prepare the surface
for plating and remove any remaining solder contamination.
9. Thoroughly rinse with water to remove any residue.

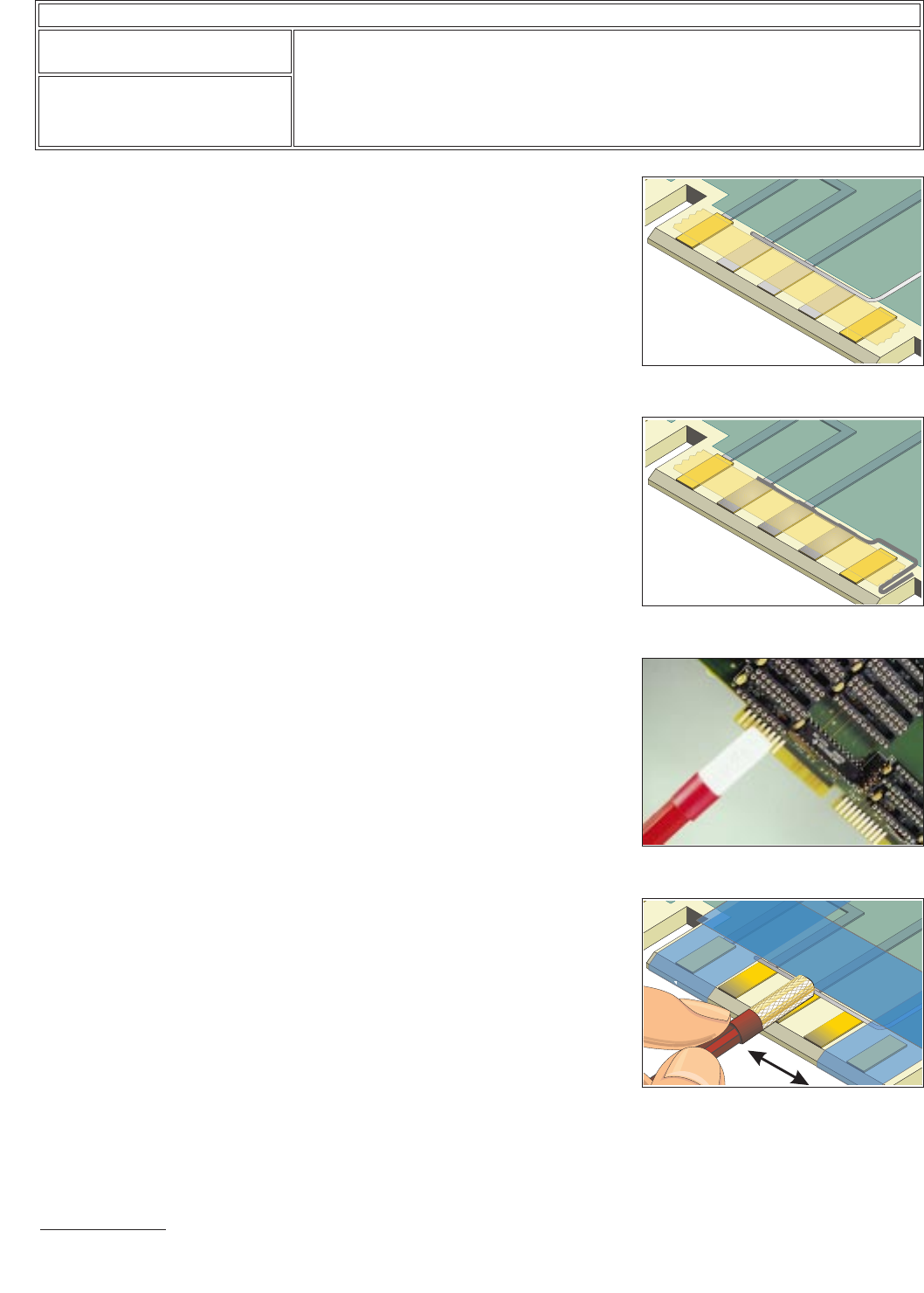

Figure 5 Solder a wire to the edge of
the contacts needing plating.
Figure 6 Apply conductive paint to
the edge of the contacts.
Figure 7 Sample plating anodes
shown with fabric wrapping.
Figure 8 Brush the surface with the
saturated plating probe.
IPC-7721A
Number: 4.6.3
Revision:
Date: 2/98
Subject: Edge Contact Repair, Plating Method
Page2of6
Copyright Association Connecting Electronics Industries
Provided by IHS under license with IPC
Not for Resale
No reproduction or networking permitted without license from IHS
--``,``,-`-`,,`,,`,`,,`---
PREPARATION − Remove Poor Plating or Surface Defects
1. Clean the rework area.
2. Apply plating tape to the printed wiring board surface surrounding the area to
be reworked. The plating tape will protect adjacent components and the printed
wiring board surface from unwanted exposure to stripping and plating solutions.
3. Clean the area.
4. Buff the contacts using an abrasive pad. Buff the contacts until all defective or
poor plating is removed.
5. Burnish small scratches. Use the tip of the burnisher to work the copper mate-
rial into the scratch and smooth out the area. Finish by mildly buffing the area to
remove any minor burnishing marks. If there are large scratches the contact
may need replacement. See Procedure Number 4.6.1 or 4.6.2.
6. Thoroughly rinse the entire area with water to remove any residue.
BUSSING
A conductive buss must be made to all the contacts that need plating. There are 4
basic connection options.
NOTE
Making a reliable buss connection is the most important step in plating. All sorts of
problems will be eliminated by taking the time to make a reliable buss connection.
BUSSING − Wire Soldered to Edge (Option 1)
CAUTION
When finished, this method will leave a small unplated line along the inner tip of each
contact.
1. Apply Polyimide tape to all the contacts to be plated. The tape should cover the
entire contact except for a small line along the inboard edge. The tape will pre-
vent further solder contamination.
2. Solder a wire directly to the inboard tip or connecting conductor of each con-
tact to be plated. The smallest amount of solder should be used to prevent fur-
ther contamination. (See Figure 5.)
BUSSING − Conductive Paint Applied to Edge (Option 2)
CAUTION
When finished, this method will leave a small unplated line along the inner tip of each
contact.
1. Apply Polyimide tape to all the contacts to be plated. The tape should cover the
entire contact except for a small line along the inboard edge. The tape will pre-
vent the conductive paint from contaminating the contact surface.
2. Apply a thin coating of conductive paint directly to the inboard tip of each con-
tact to be plated. The conductive paint should extend out to one edge so that
a clip can be applied to make electrical connection. (See Figure 6.)
IPC-7721A
Number: 4.6.3
Revision:
Date: 2/98
Subject: Edge Contact Repair, Plating Method
Page3of6
Copyright Association Connecting Electronics Industries
Provided by IHS under license with IPC
Not for Resale
No reproduction or networking permitted without license from IHS
--``,``,-`-`,,`,,`,`,,`---
