OUTLINE
This method is used to replace solder resist or coatings on printed wiring boards.
Most replacement coatings can be applied by dipping, brushing or spraying.
REFERENCES
2.1 Handling Electronic Assemblies
2.2 Cleaning
2.5 Baking and Preheating
2.6 Epoxy Mixing and Handling
TOOLS & MATERIALS
Cleaner
Cleaning Wipes
Color Agent, Various Colors
Brush
Epoxy or Replacement Coating
Foam Swab
Heat Lamp
Microscope
Oven
PROCEDURE
1. Clean the area.
CAUTION
Surfaces to be coated must be thoroughly cleaned prior to coating to ensure
adequate adhesion, minimized corrosion, and optimized electrical properties.
2. If needed, apply Polyimide tape to outline the area where the solder resist will be
applied. (See Figure 1.)
3. Mix the epoxy or replacement coating. If desired, add color agent to the mixed
epoxy to match the printed wiring board color.
4. Apply the replacement coating to the board surface as required. A brush or foam
swab may be used to apply and spread the epoxy or replacement coating. (See
Figure 2.)
5. Cure the replacement coating per the manufacturer’s instructions.
CAUTION
Some components may be sensitive to high temperature.
EVALUATION
1. Visual examination for texture, color match, adhesion and coverage.
2. Electrical tests to conductors around the repaired area as applicable.

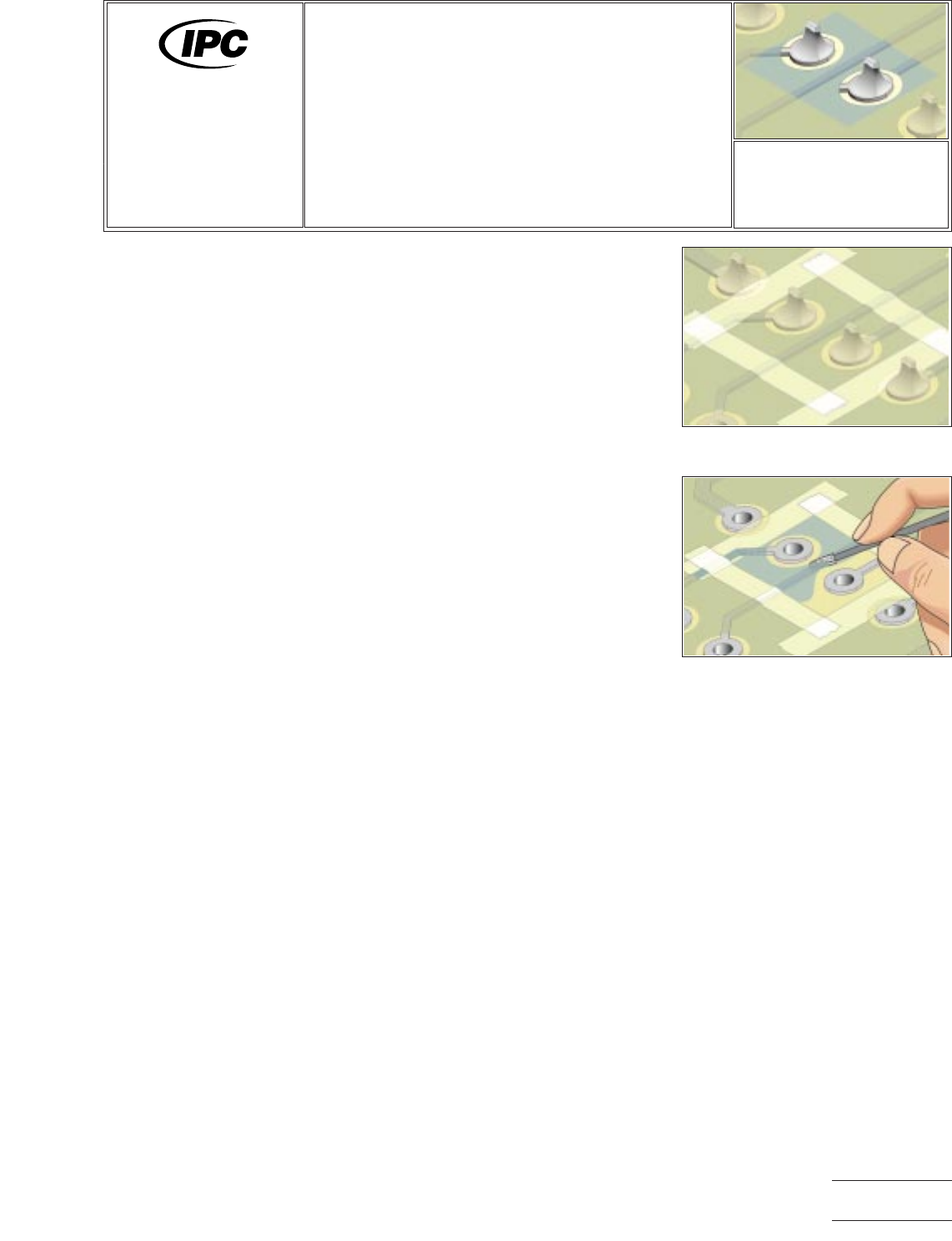

Figure 1 Apply polyimide tape if
needed.
Figure 2 Apply replacement coating
with a foam swab to create a texture.
7711A/7721A
General
Information and
Common Procedures
Revision:
Date: 2/98
Coating Replacement,
Solder Resist
Number: 2.4.1
Product Class: R, F, W, C
Skill Level: Intermediate
Level of Conformance: High
Material in this manual was voluntarily established by Technical Committees of IPC. This material is advisory only and its use
or adaptation is entirely voluntary. IPC disclaims all liability of any kind as to the use, application, or adaptation of this material.
Users are also wholly responsible for protecting themselves against all claims or liabilities for patent infringement. Equipment
referenced is for the convenience of the user and does not imply endorsement by IPC.
Page1of2
Copyright Association Connecting Electronics Industries
Provided by IHS under license with IPC
Not for Resale
No reproduction or networking permitted without license from IHS
--``,``,-`-`,,`,,`,`,,`---
NOTES
IPC-7711A/7721A
Number: 2.4.1
Revision:
Date: 2/98
Subject: Coating Replacement, Solder Resist
Page2of2
Copyright Association Connecting Electronics Industries
Provided by IHS under license with IPC
Not for Resale
No reproduction or networking permitted without license from IHS
--``,``,-`-`,,`,,`,`,,`---
OUTLINE
This method is used to replace conformal coatings and encapsulants on printed wir-
ing boards.
REFERENCES
2.1 Handling Electronic Assemblies
2.2 Cleaning
2.5 Baking and Preheating
2.6 Epoxy Mixing and Handling
TOOLS & MATERIALS
Cleaner
Cleaning Wipes
Brush
Epoxy or Replacement Coating
Foam Swab
Heat Lamp
Microscope
Oven
PROCEDURE
1. Clean the area.
CAUTION
Surfaces to be coated must be thoroughly cleaned prior to coating to ensure
adequate adhesion, minimized corrosion, and optimized electrical properties.
2. If needed, apply Polyimide tape to outline the area where the coating will be
applied. (See Figure 1.)
3. If required, bake the printed wiring board prior to the application of the replace-
ment coating.
4. Mix the replacement coating.
5. Apply the replacement coating to the board surface as required. A brush or foam
swab may be used to apply and spread the replacement coating. (See Figure 2.)
For large surfaces, apply the replacement coating with a foam swab to create a
texture.
6. Cure the replacement coating per the manufacturer’s instructions.
CAUTION
Some components may be sensitive to high temperature.
EVALUATION
1. Visual examination for texture, color match, adhesion and coverage.
2. Electrical tests to conductors around the repaired area as applicable.
Figure 1 Apply replacement coating
with foam swab to create a texture.
Figure 2 Repair complete.
7711A/7721A
General
Information and
Common Procedures
Revision:
Date: 2/98
Coating Replacement,
Conformal Coatings/
Encapsulants
Number: 2.4.2
Product Class: R, F, W, C
Skill Level: Intermediate
Level of Conformance: High
