Assembly Instructions E by SIPLACE Location 2 Fixed Table 04/2017 2 Installation 2.2 Preparatory Work 15 ► Remove the four covers from location 2. ► Remove the side cover and cover from location 1 as shown.
2 Installation
2.2 Preparatory Work
Assembly Instructions E by SIPLACE
Location 2 Fixed Table 04/2017
14
2.2 Preparatory Work

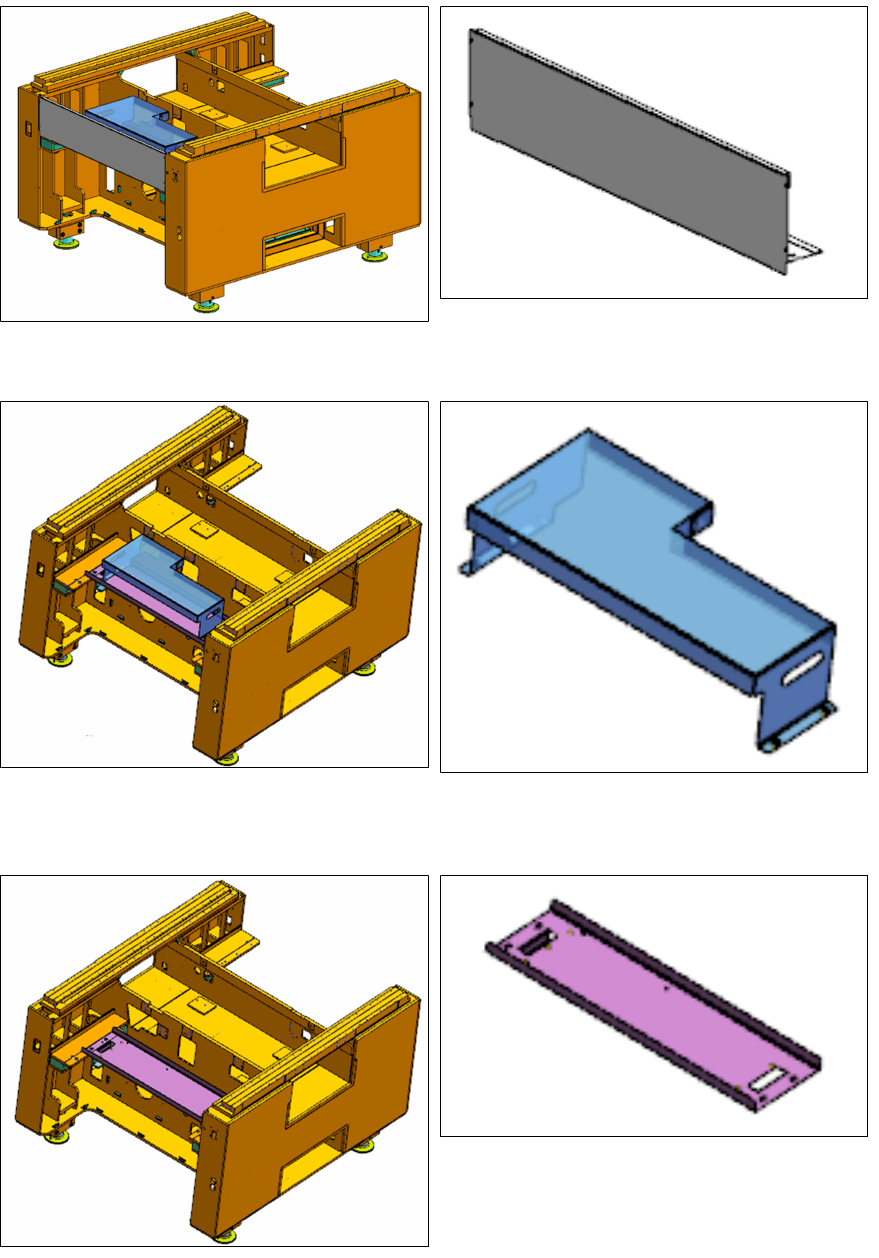

► Remove the front cover [03109665-xx].
► Remove the tray setup plate location 2 [03111629-xx] (this is an option so it may not be
present).
► Remove the location 2 safety plate [03110130-xx].
Assembly Instructions E by SIPLACE
Location 2 Fixed Table 04/2017
2 Installation
2.2 Preparatory Work
15

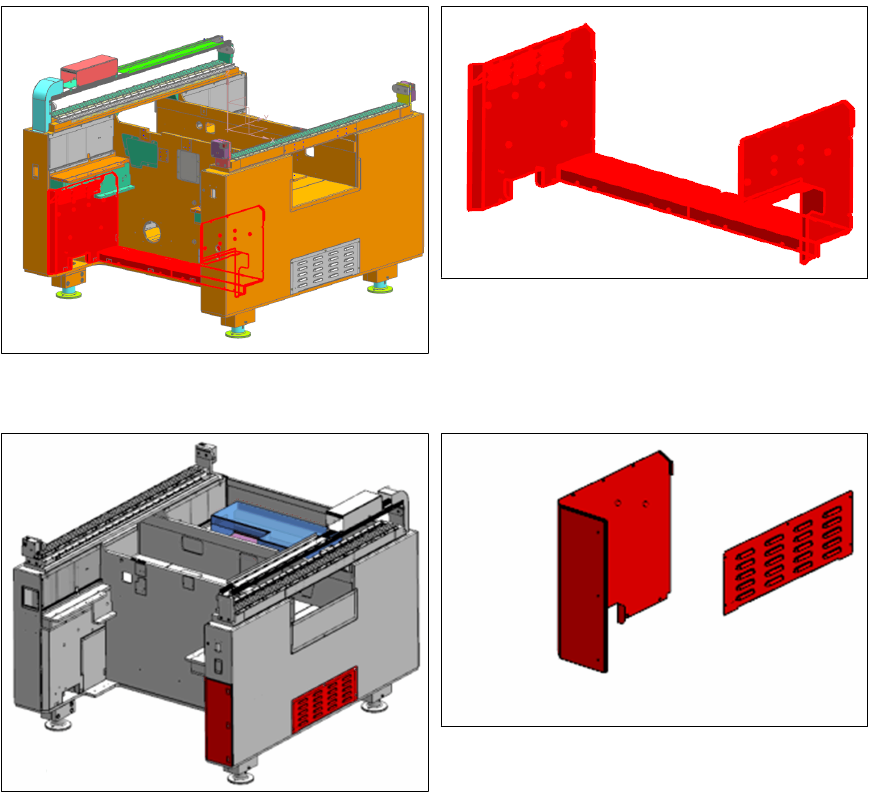

► Remove the four covers from location 2.
► Remove the side cover and cover from location 1 as shown.
2 Installation
2.6 Installing the E-Series Tape Cutter [03105585-xx]
Assembly Instructions E by SIPLACE
Location 2 Fixed Table 04/2017
22
2.6.1 Optional

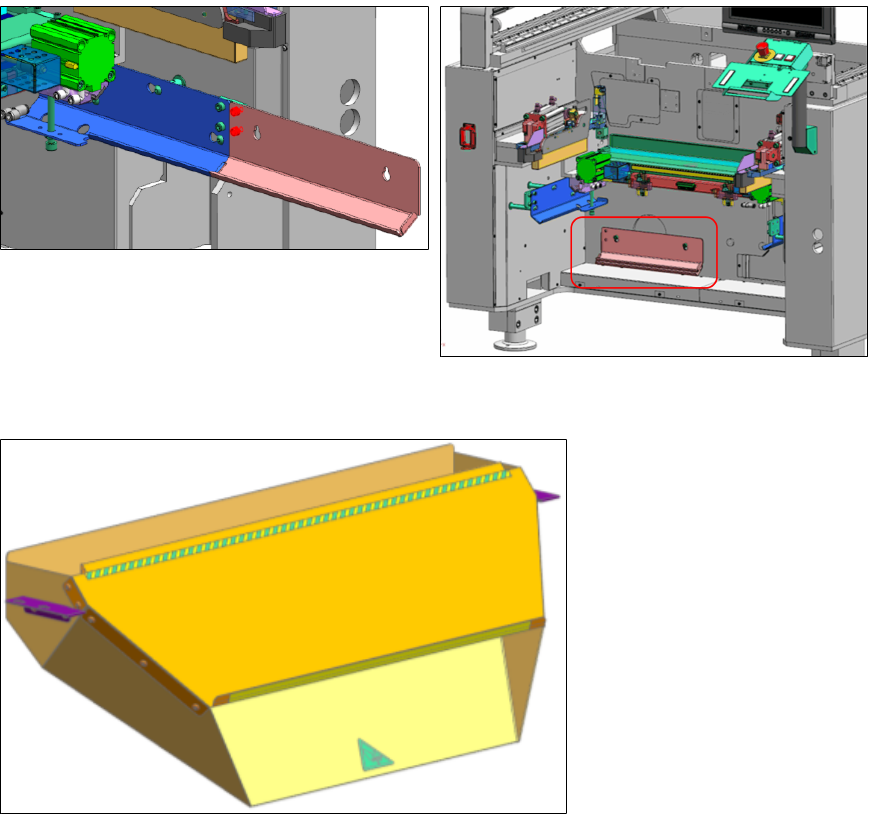

► You can unfasten four M8x10, dismantle the side bracket B right [03109832-xx] and side
bracket B left [03109810-xx].
► Keep and mount them onto the machine base frame.
► Install the waste tape chute [03108361-xx].
