2 Installation
2.5 Installing the Tape Cutter Mount Assembly [03106702-xx]
Assembly Instructions E by SIPLACE
Location 2 Fixed Table 04/2017
18
2.5 Installing the Tape Cutter Mount Assembly [03106702-xx]

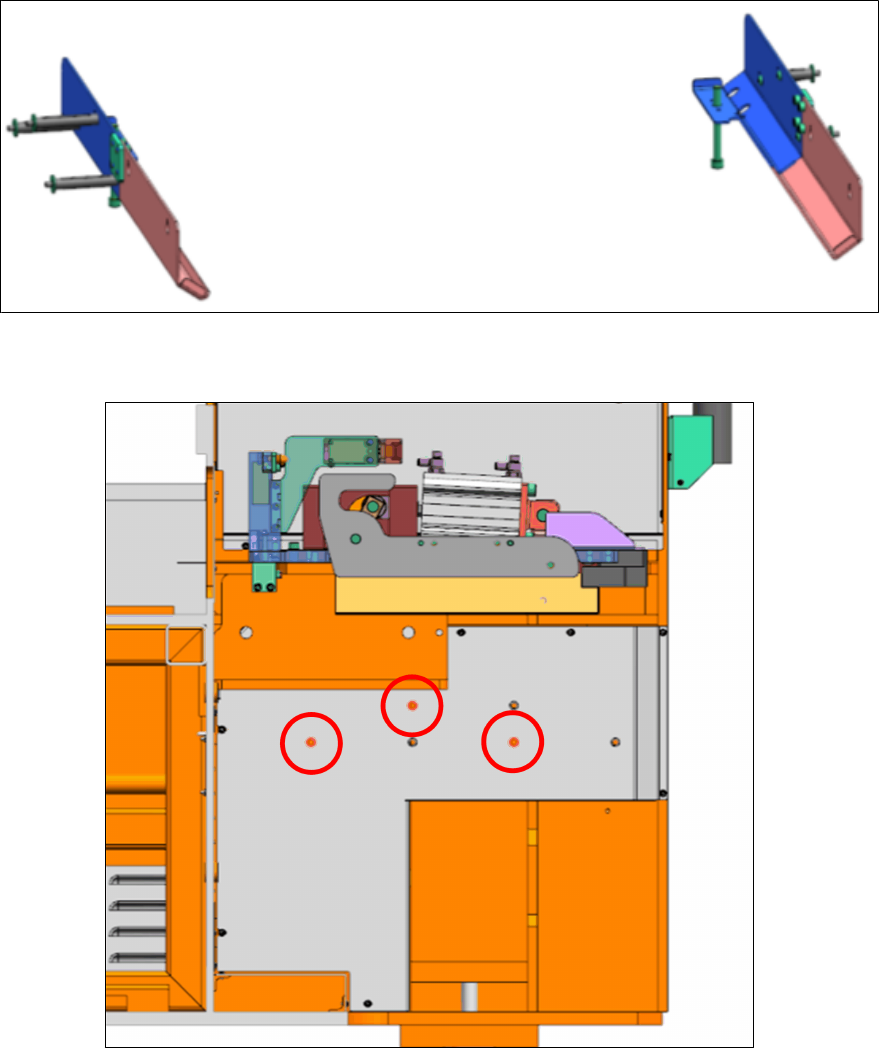

► Depending on the type of your machine use the indicated holes to mount the tape cutter side
brackets as shown below:
"Speed":
Assembly Instructions E by SIPLACE
Location 2 Fixed Table 04/2017
2 Installation
2.5 Installing the Tape Cutter Mount Assembly [03106702-xx]
19
"Flex /
Twin":
► Take note of the standoff used on location 2, the longer standoff M8x84 [03106718-xx] are on
the left and shorter standoff M8x38 [03106776-xx] are on the right.
2 Installation
2.6 Installing the E-Series Tape Cutter [03105585-xx]
Assembly Instructions E by SIPLACE
Location 2 Fixed Table 04/2017
20
2.6 Installing the E-Series Tape Cutter [03105585-xx]
► Place the tape cutter onto the brackets and slide it into the machine.
► Align the side holder block blind hole with the lifting screw hole.
► Take note that for speed, use the inner holes, and for flex, use the outer holes.
