2 Installation
2.6 Installing the E-Series Tape Cutter [03105585-xx]
Assembly Instructions E by SIPLACE
Location 2 Fixed Table 04/2017
20
2.6 Installing the E-Series Tape Cutter [03105585-xx]

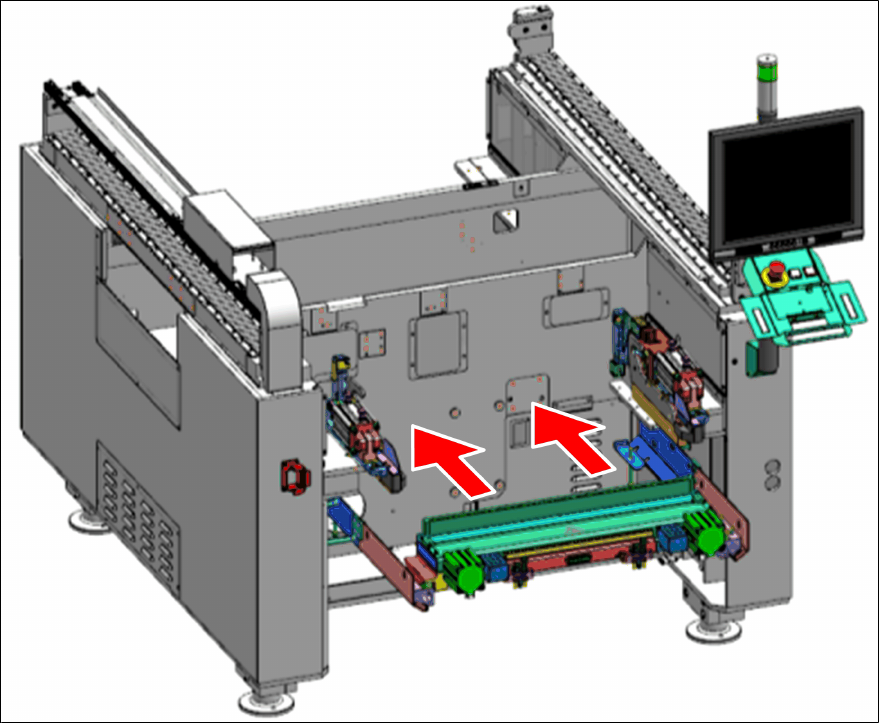

► Place the tape cutter onto the brackets and slide it into the machine.
► Align the side holder block blind hole with the lifting screw hole.
► Take note that for speed, use the inner holes, and for flex, use the outer holes.
Assembly Instructions E by SIPLACE
Location 2 Fixed Table 04/2017
2 Installation
2.6 Installing the E-Series Tape Cutter [03105585-xx]
21

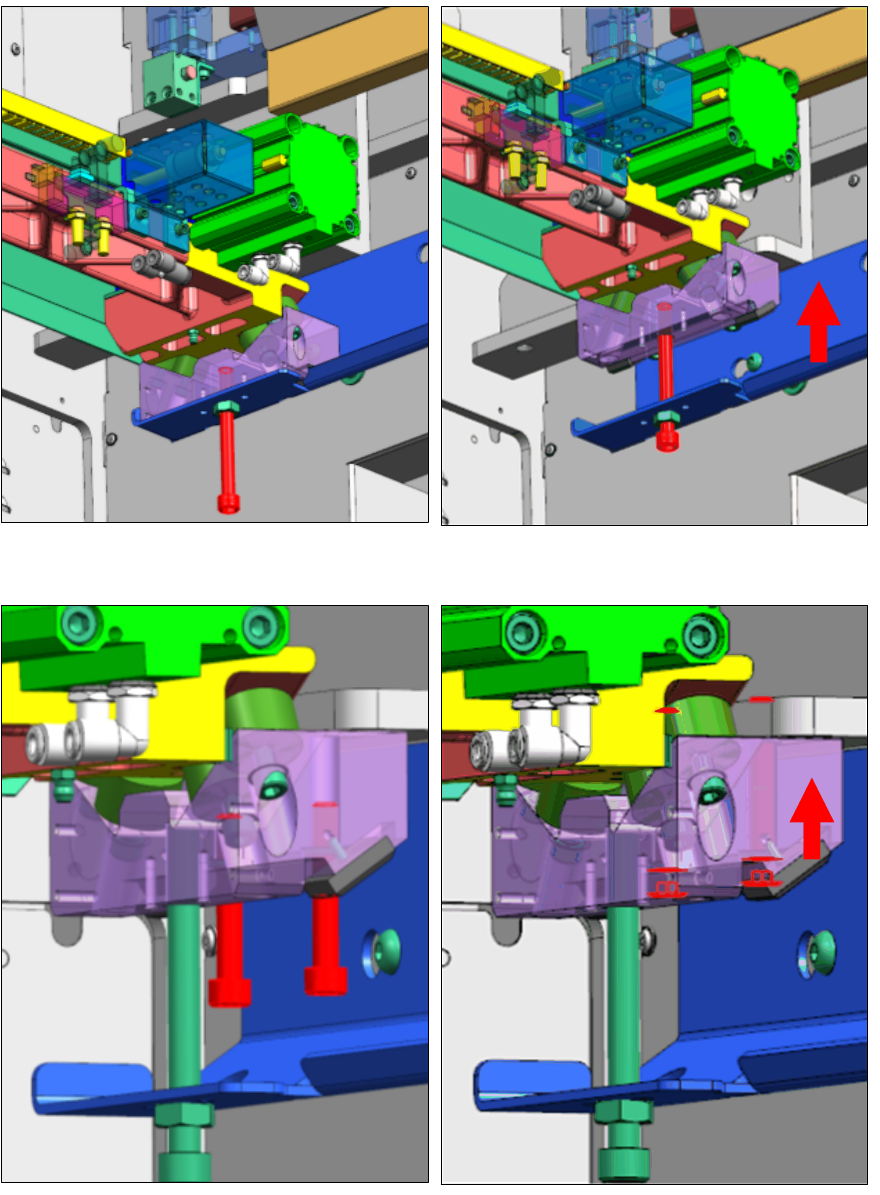

► Fasten one M10x100 screw each side (left & right) synchronously to lift up the tape cutter.
► Fasten two M8x50 cap screws each side (left and right) to the machine frame.
► Loosen M10x100 screw upon tape cutter is securely fastened.
2 Installation
2.6 Installing the E-Series Tape Cutter [03105585-xx]
Assembly Instructions E by SIPLACE
Location 2 Fixed Table 04/2017
22
2.6.1 Optional

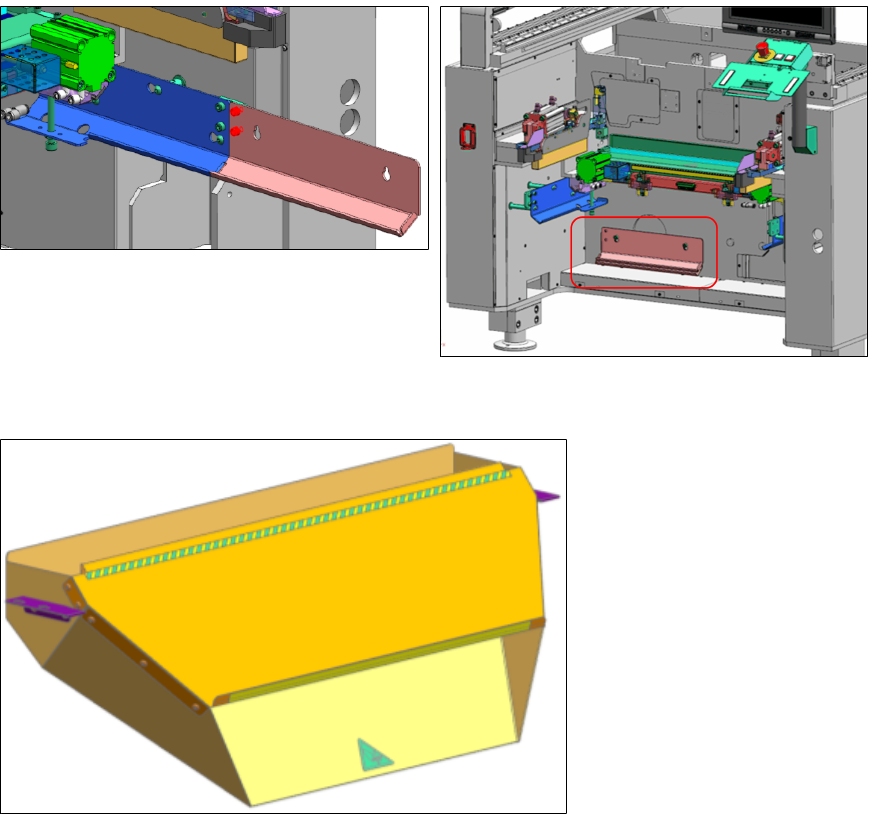

► You can unfasten four M8x10, dismantle the side bracket B right [03109832-xx] and side
bracket B left [03109810-xx].
► Keep and mount them onto the machine base frame.
► Install the waste tape chute [03108361-xx].
