5 - 23 0033589 2-010 101ND 4 855 boar d, anti- crash b oard H S-60 01 13.03.98 KL ATD TD MCH 2 SIEM ENS AG 13.03.98 Klose Mounting diagram, component si de 4-layer PC board 855 boar d HS60 antic rash board G3291 8-K00 84…

100%1 / 184
5 - 22

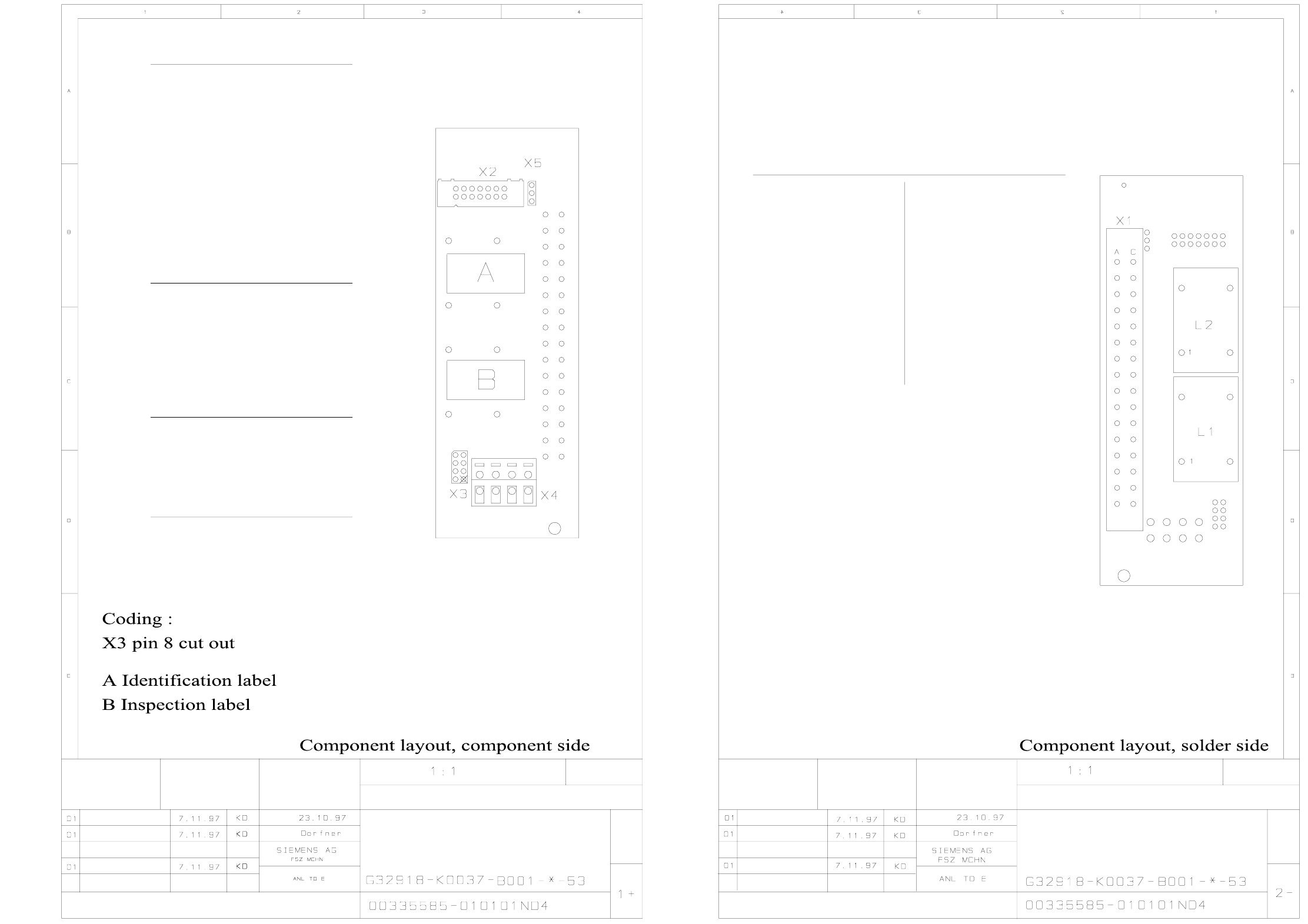

00335585-010101ND4 844 board, backplane DC 2.5, component side (Sh. 1 of 2)
00335585-010101ND4 844 board, backplane DC 2.5, solder side (Sh. 2 of 2)
Link voltage
Tacho +
Tacho -
GND5, 6, 7, 8
- 15 V
+ 15 V
GND
Key
3
4
2
1
X4
Motor -
Motor +
Servo GND
Vnom
3
4
2
1
X3
10
9
Servo Ready
Servo Enable (+ 15 V)
Servo Enable
Sensor stop
N.u.
I²t
Ia - monitor
3
5
7
6
4
X2
2
Analog GND11
Tachometer12
Force13
Keine Brücke
X5
PC BOARD
All documents viewed from component side
BACKPLANE DC 2.5
LEITERPLATTE 844
Sheet
Stat. Modified Date Name
Date
Name
Function stat.
Product stat.
Document stat.
8
1, 8, 14
PC BOARD
Scale
PRINTED CIRCUIT BOARD 845
Sheet
Date
Name
Stat. Modified Date Name
Function stat.
Product stat.
Document stat.
BACKPLANE DC 2.5
X1
2a
4a
6a
8a
12a
14a
16a
18a
20a
22a
24a
26a
28a
30a
32a
22c
28c
32c
30c
26c
24c
16c
20c
18c
14c
12c
4c
8c
2c
10c
Tacho +
GND Servo
Sensor stop
Motor +
Motor +
Ia monitor
Link voltage
Link voltage
GND
GND
Force
n.u.
Motor -
Motor -
+15V
Link voltage
Link voltage
Servo Ready
Analog GND
Servo Enable
Motor +
Motor +
GND
GND
Tacho -
-15V
I²t
Motor -
Motor -
Vnom
5 - 23

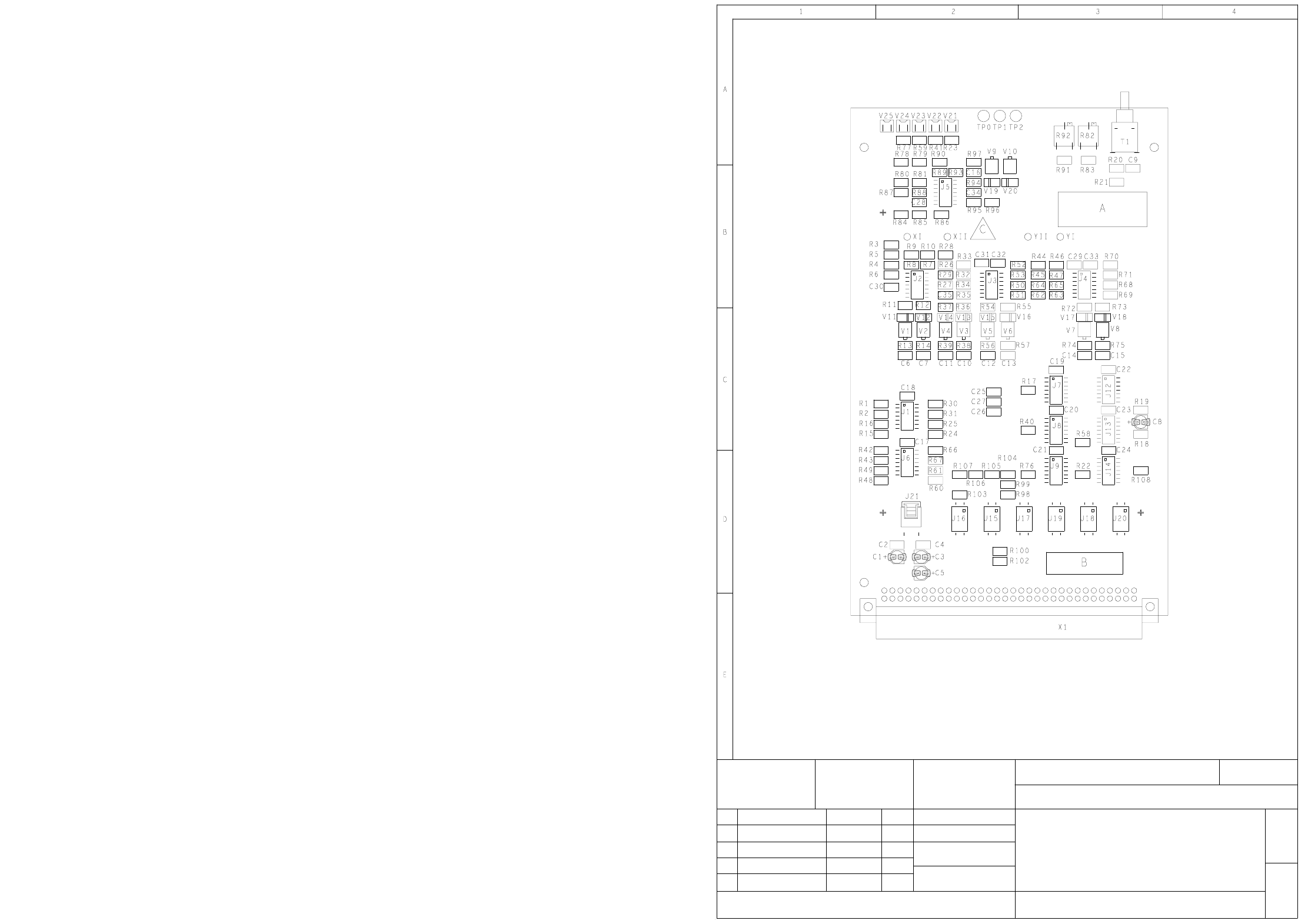

00335892-010101ND4 855 board, anti-crash board HS-60
01 13.03.98 KL
ATD TD MCH 2
SIEMENS AG
13.03.98
Klose
Mounting diagram, component side
4-layer PC board
855 board
HS60 anticrash board
G32918-K0084-B001-*-0017
00335892-010101ND4
1
1
A = ID label
B = inspection label
C = ESD label
Stat. Modified Date Name
Date
Name
Scale 1:1
Sheet
Sh.
5 - 24

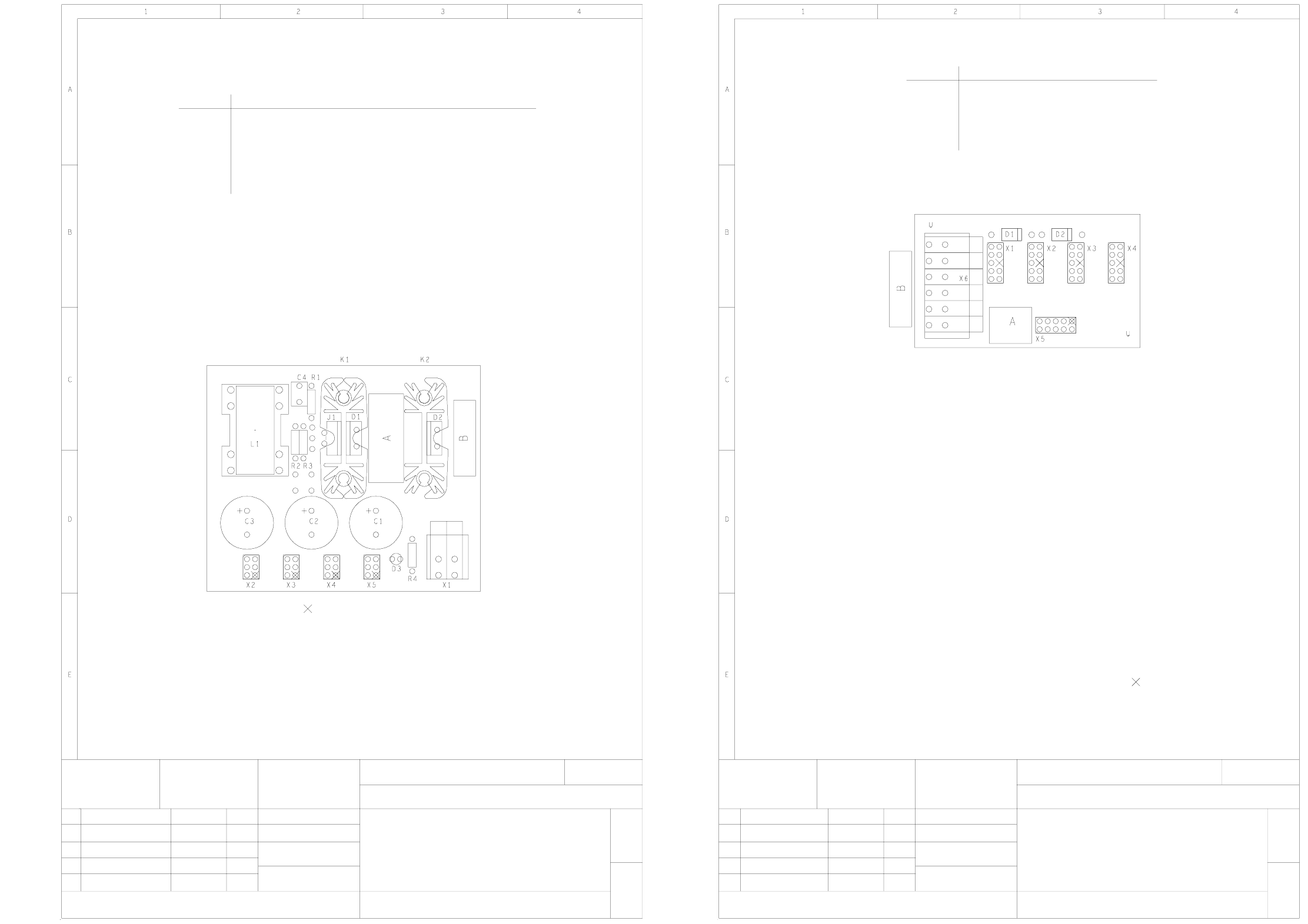

00336179-010101ND4 852, Stromversorgung SM motors
00336188-010101ND4 857 board, distributor f. illumination and flash HS-60
01 28.01.98 KL
ATD TD MCH 2
SIEMENS AG
23.01.98
Klose
Mounting diagram, component side
2-layer PC board
852 board
Power supply
G32918-K0053-B001-*-0017
00336179-010101ND4
1
1
SM motors
= pinch off key pin
A = ID label
B = inspection label
Insert an insulating foil between J1, D1, D2 and the heat sink.
Stat. Modified Date Name
Date
Name
Scale 1:1
Sheet
Sh.
Assembly
1, 3
2, 4
X5
X4
X3
X1
X2
Connector
To X10ca gantry distributor 3, + 15 V, step motors, gantry 3
To X10da gantry distributor 4, + 15 V, step motors, gantry 4
To X10ba gantry distributor 2, + 15 V, step motors, gantry 2
+ 30 V
To X10aa gantry distributor 1, + 15 V, step motors, gantry 1
GND
4
31
2
09.03.98
Klose
09.03.98 KL01
Stat. Modified Date Name
Date
Name
Scale 1:1
Sheet
Sh.
To X7th control unit 00334808, flash line
To X9ca, gantry distributor 3, 00335413
Assembly
To X9da, gantry distributor 4, 00335413
To X9ba, gantry distributor 2, 00335413
To X9aa, gantry distributor 1, 00335413
X5
X4
X1
X2
X3
Connector
+ 5 V VZ illumination
4 + 24 V illumination 2
6
5 + 24 V illumination 3
GND
2
3
1
+ 24 V PCB illumination
+ 24 V illumination 1
Connector X6
71
28
39
410
511
612
A = Identificaton label
B = Inspection label, lateral to X6
Pinch off key pin
G32918-K0085-B001-*-0017
2-layer printed circuit board
Mounting diagram, component side
857 board
Distributor, illumination
and flash HS60
00336188-010101ND4
1
1
ATD TD MCH 2
SIEMENS AG
