circuit of HS60 - 第166页
5 - 34 0035936 4-010 101ND 4 Adjustment u nit 2 / reje ct circuit Mounting diagr am, comp onent sid e Adjustment drive 2 Reje ct c ir cuit 00359364-010101ND4 1 1 SIEMENS AG 06. 11.2 001 06.11.2 001 01 Stat . Modif ied Da…
5 - 33
00357329-010101ND1 Backplane HS-60
Fan
b) Space for inspection label on side 2
a) Space for identification label on side 2
View onto side 1
Soldering
will be placed on side 2
Dashed components
Stat. Modified
Date Name
Dat.
Auth.
Check.
Stand.

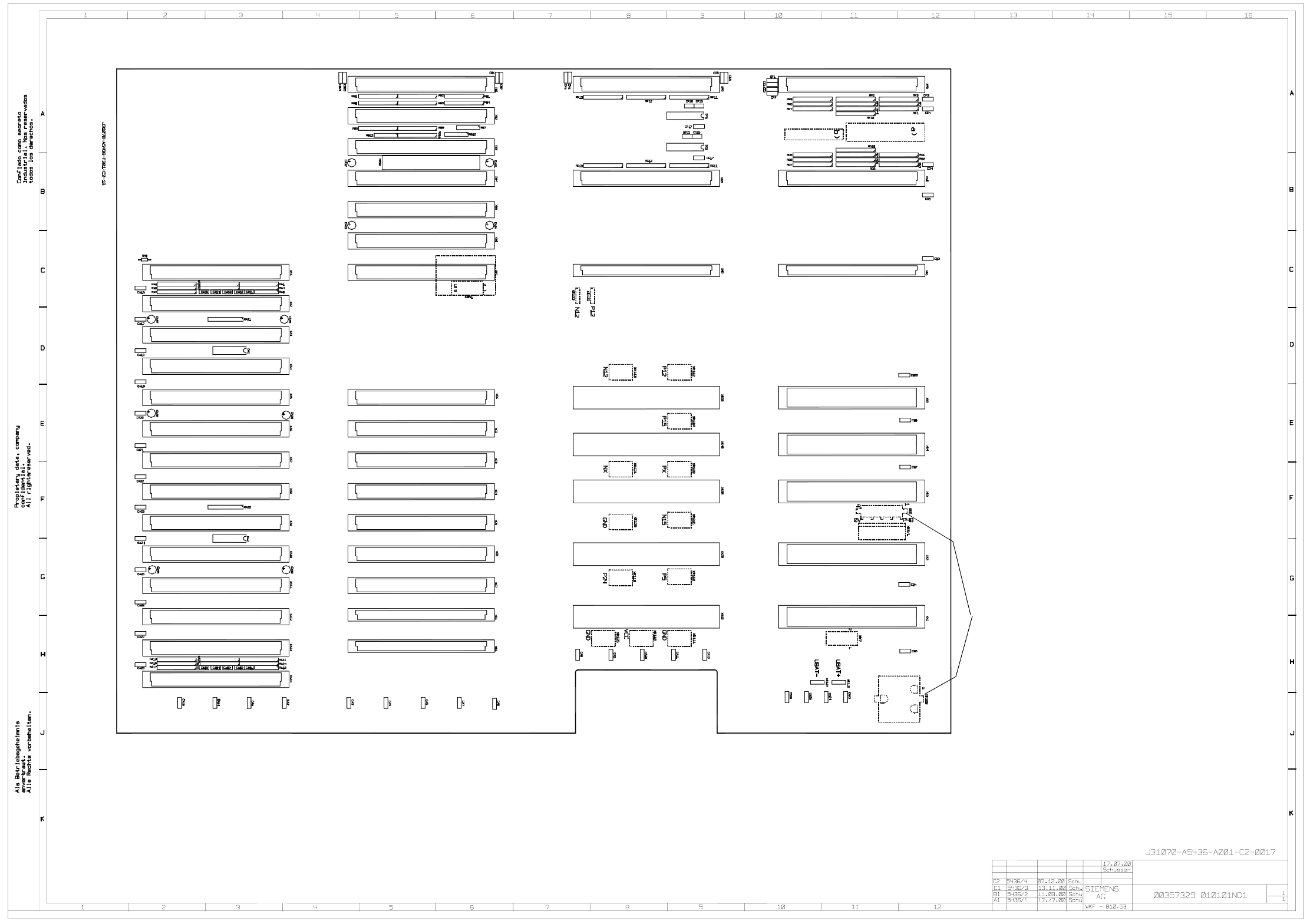

Placement drawing page 1
HS60 backplane
Sheet
Sh.
5 - 34

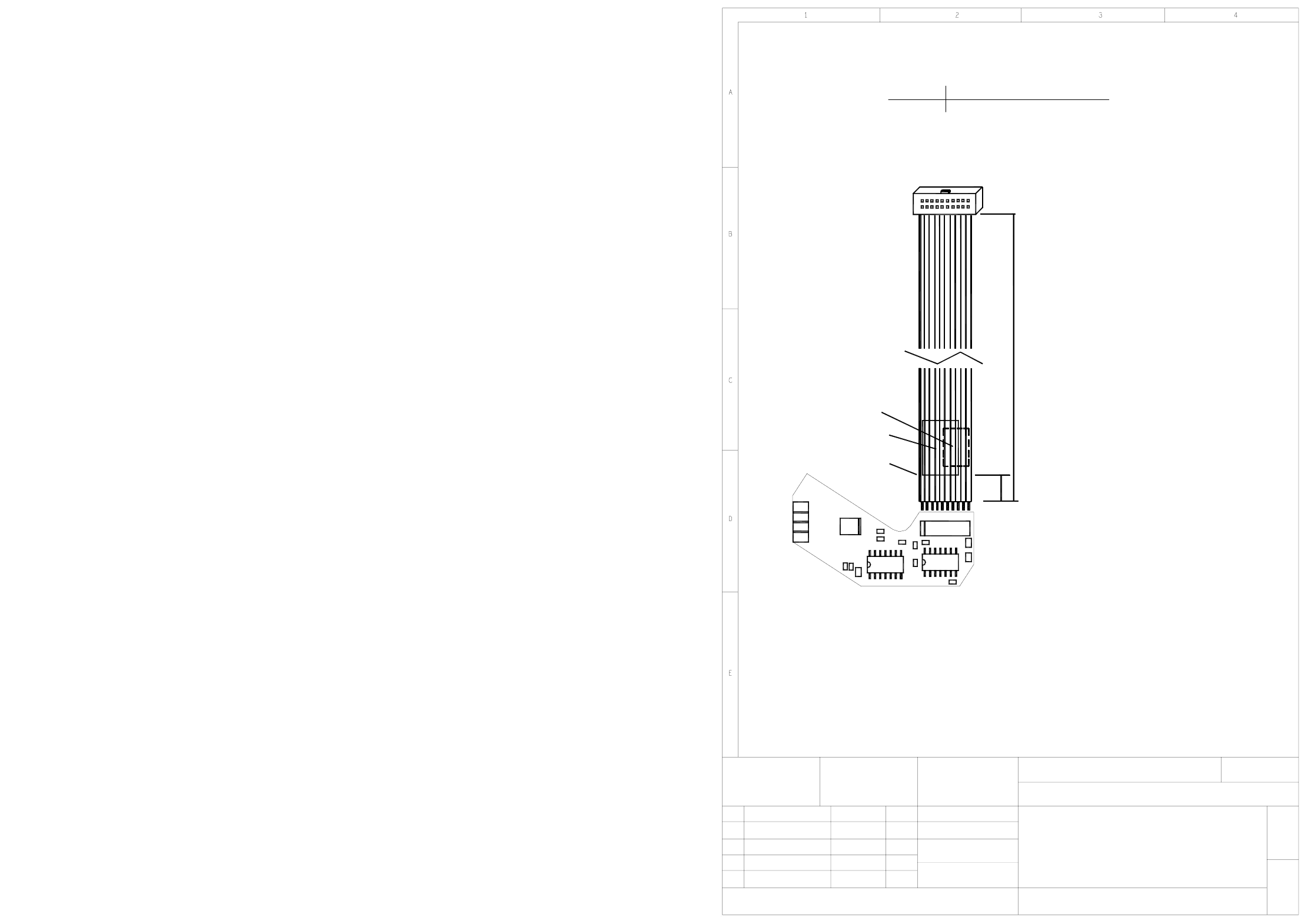

00359364-010101ND4 Adjustment unit 2 / reject circuit
Mounting diagram, component side
Adjustment drive 2
Reject circuit
00359364-010101ND4
1
1
SIEMENS AG
06.11.2001
06.11.200101
Stat. Modified Date Name
Date
Name
Sheet
Sh.
U2
R9
X4
X5
X3
X2
C4
C3
U3
R2
R1
B1, B2
A1
Pin 1
U1
C2
C6
X1
1
R5
R6
C5
10
R8R7
50.0mm
340.0mm
+5.0mm
-5.0mm
B1, B2:
A1:
X1
on the cable
On the back.
Label position:
AFO and WIP inspection labels.
50mm distance from cable end.
May be printed
readable, when X1 is on the left.
Identification label,
Cable, 05-1630-4
Assembly
X19 stepping motor boardoard 00344488
Connector
X1
readable, when X1 is on the right.
5 - 35

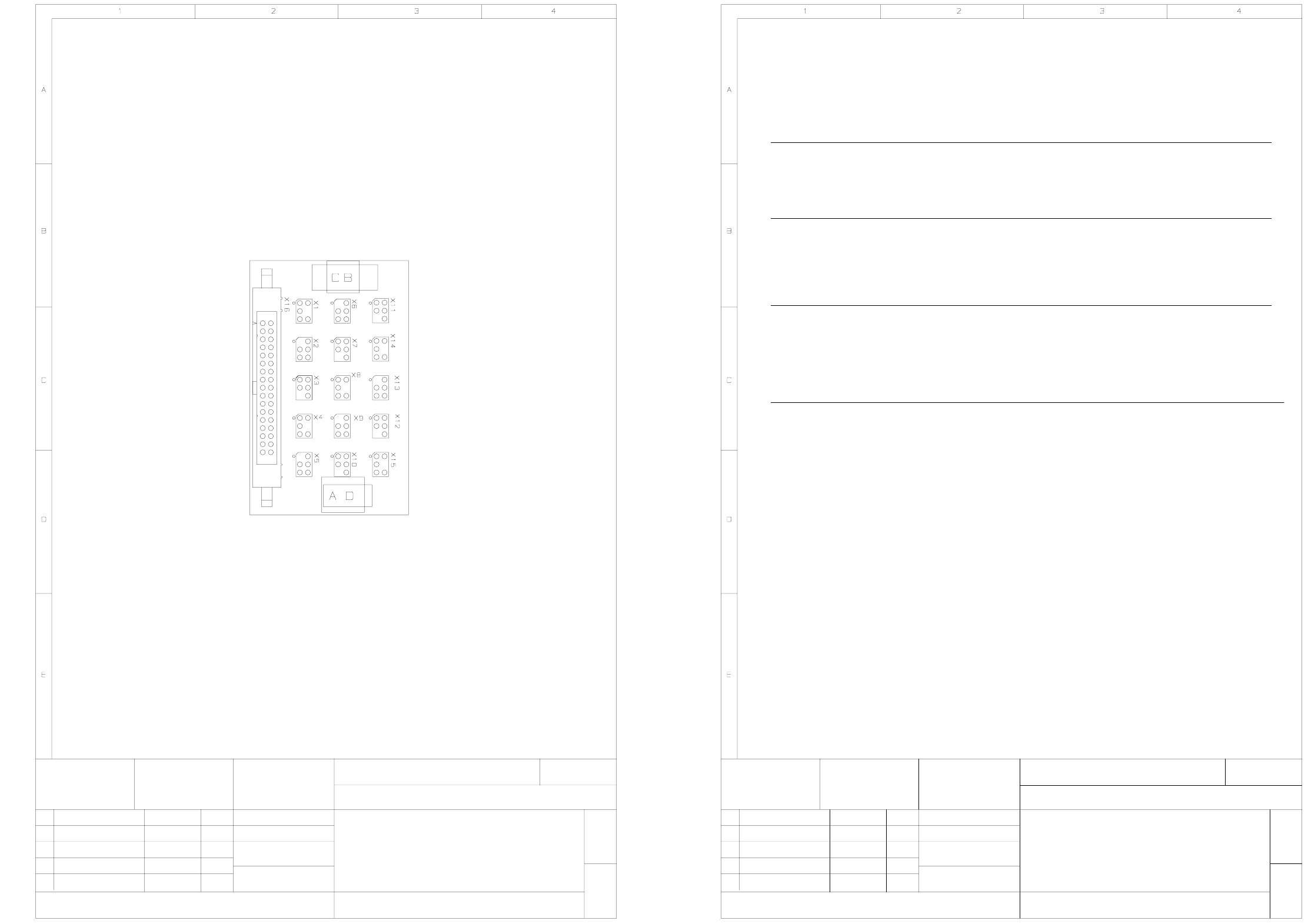

00359424-010101ND4 961 board, conversion board, transportation cheek (Sh. 1 of 2)
00359424-020101ND4 961 board, conversion board, transportation cheek,
connector assignment (Sh. 2 of 2)
G32918 - M0068 - U201 - * - 53
01
Stat. Modified Date
12.12.00
Name
KD
ATD TD E
SIEMENS AG
MCHN R/Tu
12.12.01
Dorfner
PC board
Date
Name
2-layer
00359424-010101ND4
Conversion board
PC board
Scale
1 : 1
Component layout, component side
Sheet
1+
961
Transportation cheek
Testing label (solder side)B
Identification labelA
Assembly designation 11x13
UL label (solder side)
C
D
G32918 - M0068 - U201 - * - 53
01
Stat. Modified Date
12.12.00
Name
KD
ATD TD E
SIEMENS AG
MCHN R/Tu
12.12.01
Dorfner
PC board
Date
Name
2-layer
00359424-010101ND4
Conversion board
PC board
Scale
1 : 1
Sheet
2 -
961
Transportation cheek
2
4
6
2
6
1
5
6
2
4
6
2
2
6
1
2
3
12
5
33
4
2
666
1
3
2
6
2
5
3
6
5
3
2
6
2
4
3
6
3
6
2
1
5
6
3
22
3
5
6
1, 2
3, 4
5, 6
7, 8
9, 10
11, 12
13, 14
15, 16
17, 18
19, 20
21, 22
23
24
25
26
27
28
29
30
31
32
33, 34
