5 - 43 0037039 7-010 101ND 3 Conveyor co ntrol T SP301 (Sh. 2 o f 2) Bauteilangabe n nur zur Information besondere fuer den Fall der Patentert eilung oder GM-Eintr agung. nicht ausdru ecklich zugestanden. Alle Rechte vor…

100%1 / 184

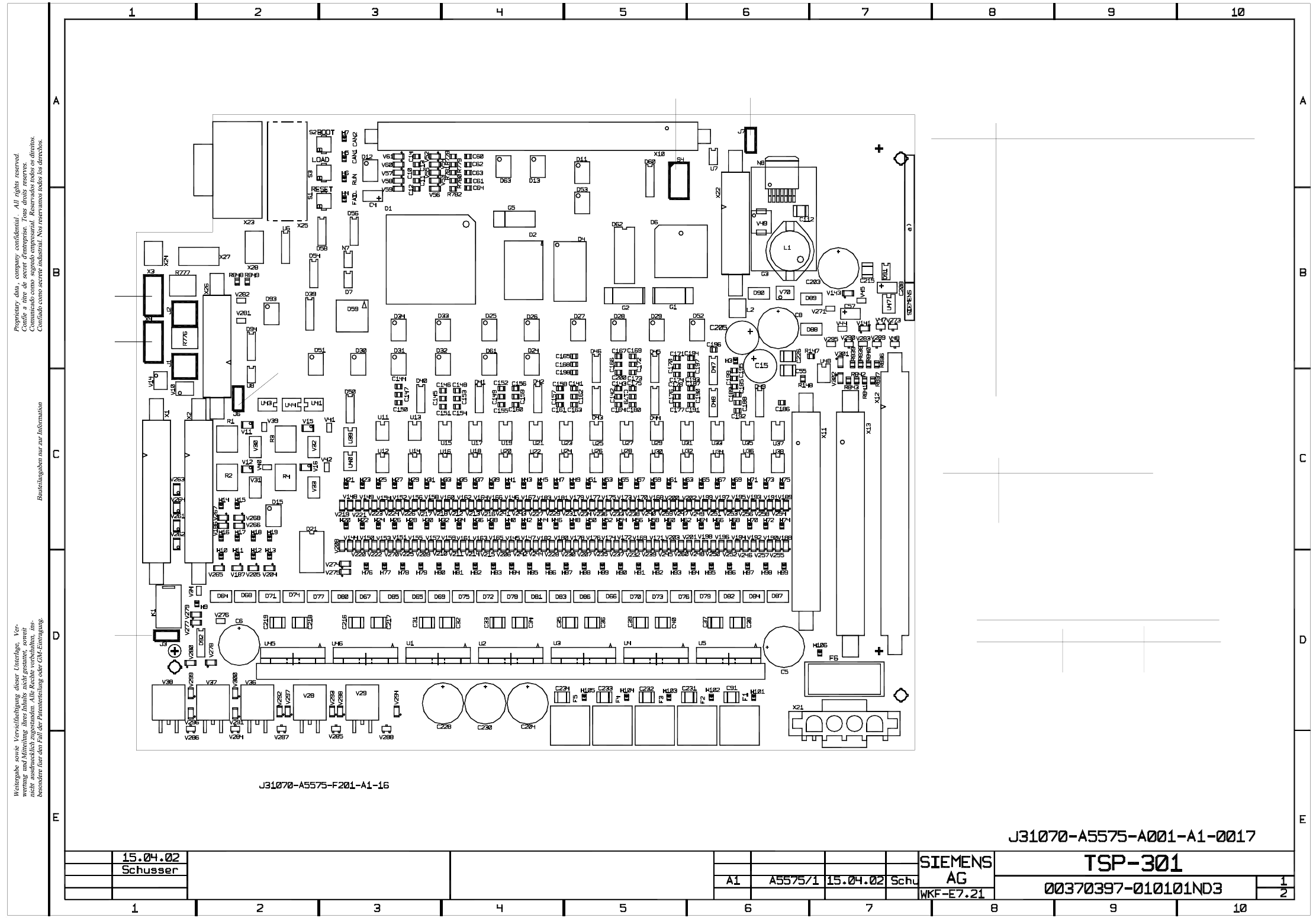

5 - 42
00370397-010101ND3 Conveyor control TSP301 (Sh. 1 of 2)
Date
Author
Check.
Stand.
Placement diagram
SMD und components with axial leads
Side 1
Stat. Modified Date Name
Position for identification label
on side 1
a)
X3
X3
X4
J2
J1
J6
X1 X2
J3
S4 J7
X22
AssemblyConnector
X1
X2
X3
X4
X10
X11
X12
X13
X22
X23
X24
X25
X26
X21
X21:1
X21:2
X21:3
X21:4
Siemens interface, upstream station, conveyor track 1
Siemens interface, downstream station, conveyor track 1
SMEMA interface, upstream station, conveyor track 1
SMEMA interface, downstream station, conveyor track 1
Bus cable to TSP 300E
Conveyor motors, "width adjustment" motor
Sensors/actors
Sensors/actors
Power supply
Barcode reader: start signal
Barcodel reader: RS232
RS232 Boot/Debug
GND
CAN bus
CAN bus
n.u.
34V-, -42V-
24V-
Assembly
Fault loop 1-2
CAN bus, pins 2-3
CAN bus, pins 2-3
Jumper
J7
J3
J6
Sh.
Sh.
SIEMENS SMEMA
1-2, 4-5, 7-8 2-3, 5-6, 8-9J1
2-3, 5-6, 8-91-2, 4-5, 7-8J2
J1/J2 interface jumpers, conveyor track 1
Downstream station
Upstream station
5 - 43
00370397-010101ND3 Conveyor control TSP301 (Sh. 2 of 2)
Bauteilangaben nur zur Informationbesondere fuer den Fall der Patenterteilung oder GM-Eintragung.
nicht ausdruecklich zugestanden. Alle Rechte vorbehalten, ins-
wertung und Mitteilung ihres Inhalts nicht gestattet, soweit
Weitergabe sowie Vervielfaeltigung dieser Unterlage, Ver-
Confiado como secrete industrial. Nos reservamos todos los derechos.
Proprietary data , company confidential . All rights reserved.
Confie a titre de secret d'entreprise. Tous droits reserves.
Comunicado como segredo empresarial. Reservados todos os direitos.

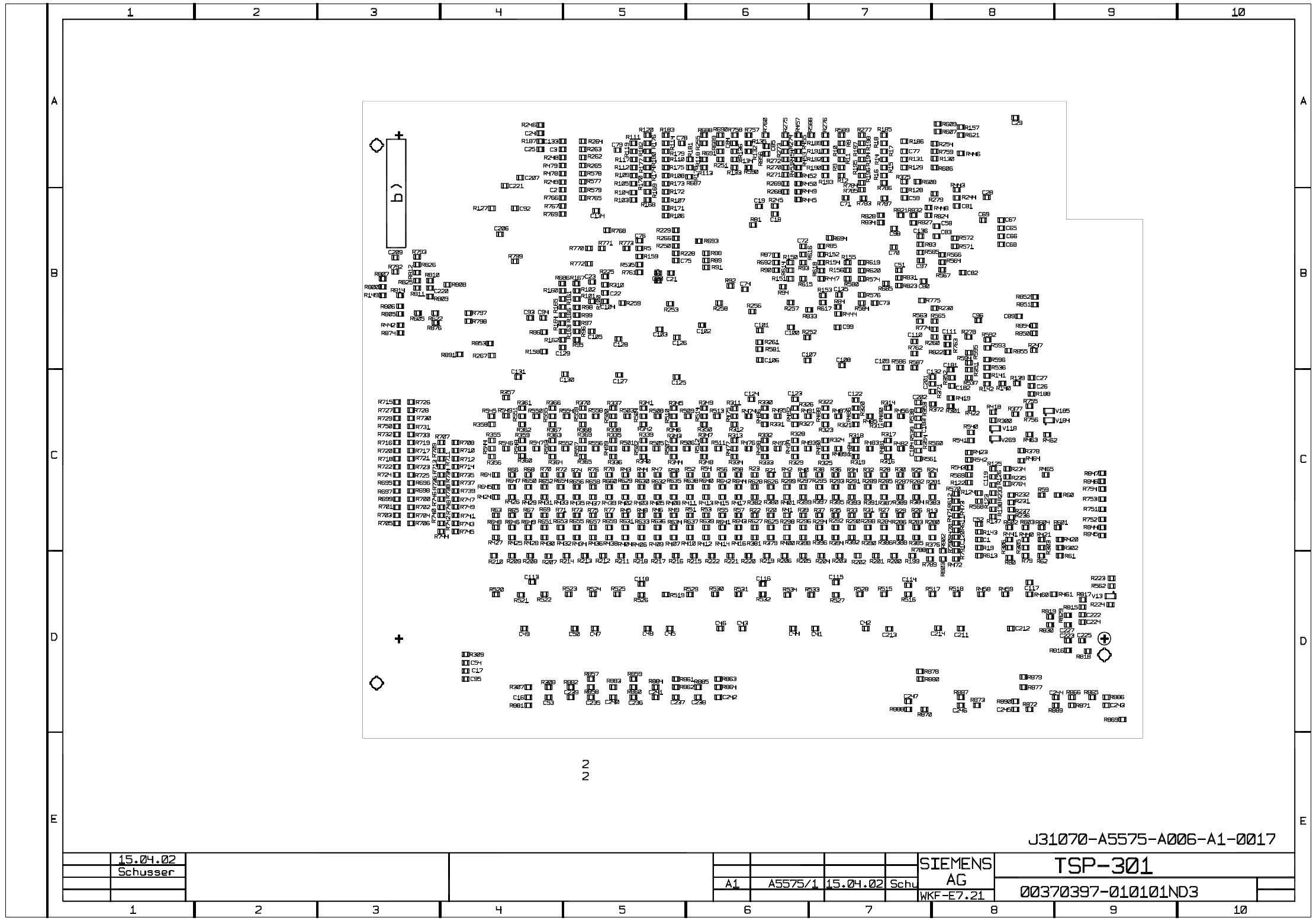

b) Position for inspection label
on side 2
Standard
Date
Checked
Author
SMD side 2 + 4 x spacer
Placement diagram
State Modified Date
Name
Sh.
Sh.

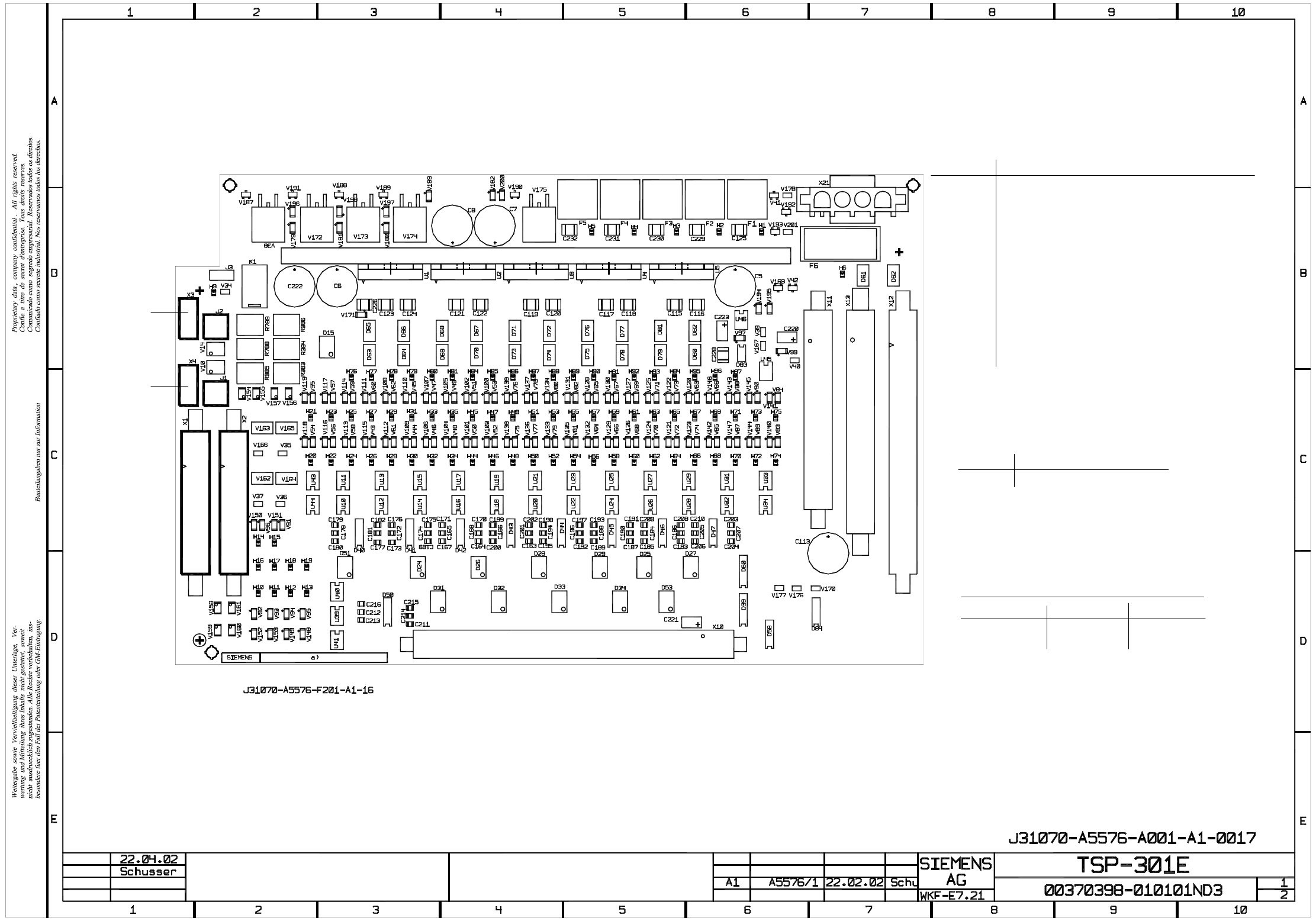

5 - 44
00370398-010101ND3 Conveyor control TSP301E (Sh. 1 of 2)
a) Position for identification label
on side 1
Stand.
Date
Check.
Author
Placement diagram
SMD and components with axial leads
Side 1
Stat.
Modified
Date
Name
Sh.
Sh.
Jumper Assembly
SIEMENS
1-2, 4-5, 7-8
1-2, 4-5, 7-8
J1/J2 interface jumper, conveyor track 2
Fault loop 1-2
Upstream station
Downstream station J2
J1
J3
2-3, 5-6, 8-9
2-3, 5-6, 8-9
SMEMA
Power supply
Siemens interface, downstream station, conveyor track 2
Siemens interface, upstream station, conveyor track 2
X2
GND
X21:4
X21:1
X21:2
X21:3
24 VDC
34 VDC to 42 VDC
n.u.
X21
X13
X10
X11
X12
X4
X3
Connector Assembly
X1
X4
X3
J2
J1
X2X1
Sensors/actors
Sensors/actors
Conveyor motors, "width adjustment" motor
Bus cable to TSP 300E
SMEMA interface, upstream station, conveyor track 2
SMEMA interface, downstream station, conveyor track 2
