ｲﾗｽﾄ No. REF No. PART No. PART NAME REMAR KS Q'TY 3 ﾄﾚｲﾘﾌﾀ部 (40連2) TRAY LIFTER SECT.(FOR 40 COMP ONENT-2) 部 品 名 品 番 個数 備 考 719 2 1045951173 BRACKET ﾌ ﾞﾗｹｯﾄ 730 4 104595116901 PLATE(JOINT) ﾌﾟﾚｰﾄ(ｼﾞｮ ｲﾝﾄ) 731 2 104595…

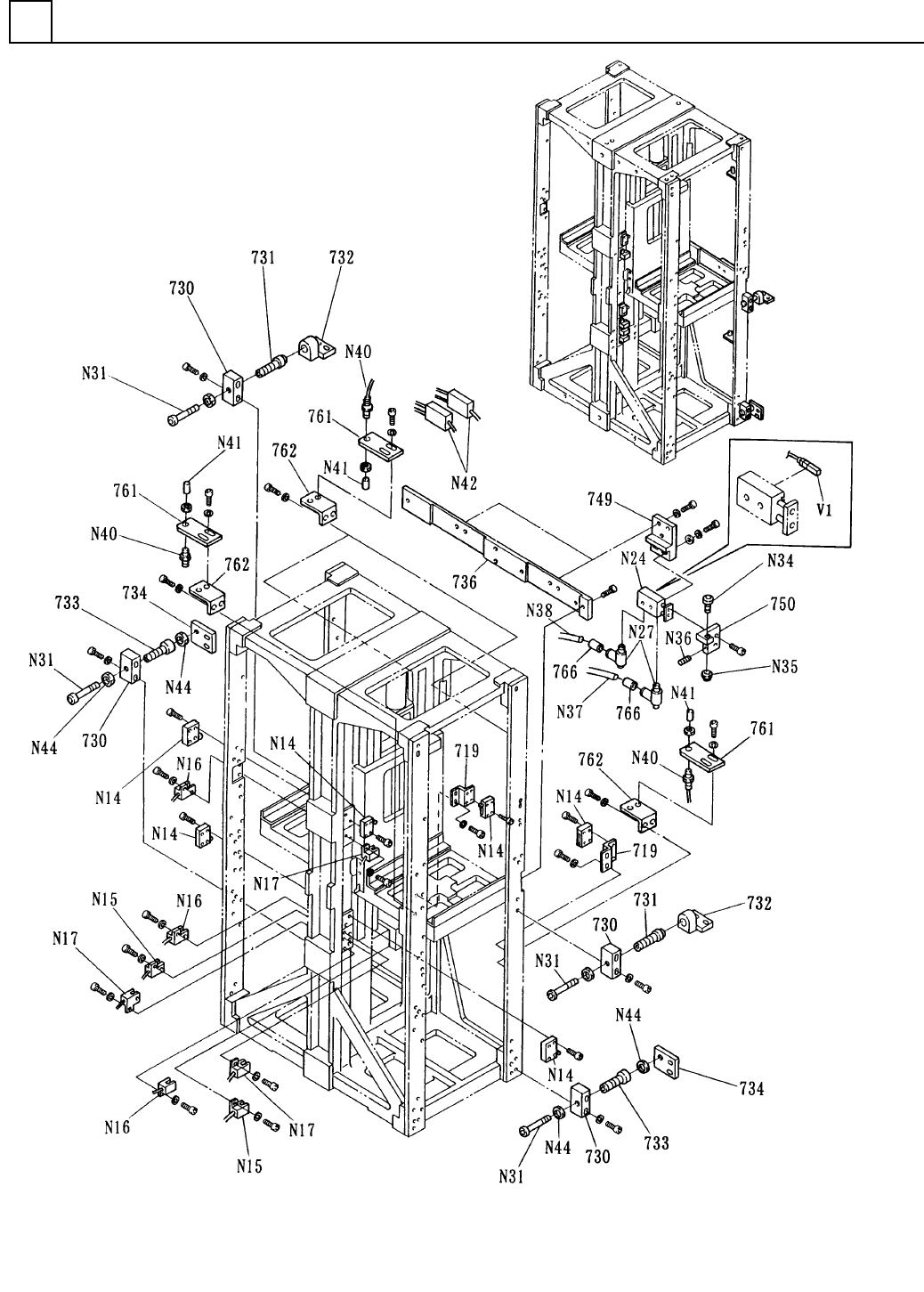

ﾄﾚｲﾘﾌﾀ部(40連2)
TRAY LIFTER SECT.(FOR 40 COMPONENT-2)
3
F10459-51-700-AB-2
M11
ｲﾗｽﾄ
No.
REF
No.
PART No.
PART NAME
REMARKS
Q'TY
3
ﾄﾚｲﾘﾌﾀ部(40連2)
TRAY LIFTER SECT.(FOR 40 COMPONENT-2)
部 品 名 品 番 個数
備 考
719 2 1045951173
BRACKET ﾌ
ﾞﾗｹｯﾄ
730
4
104595116901
PLATE(JOINT) ﾌﾟﾚｰﾄ(ｼﾞｮｲﾝﾄ)
731
2
1045951131
PIN(JOINT) ﾋﾟﾝ(ｼﾞｮｲﾝﾄ)
732 2 104595113203
HOLDER(JOINT) ﾎﾙﾀ
ﾞ(ｼﾞｮｲﾝﾄ)
733 2 1045951133
PIN(JOINT) ﾋﾟﾝ(ｼﾞ
ｮｲﾝﾄ)
734
2
1045951134
PLATE(JOINT) ﾌﾟﾚｰﾄ(ｼﾞｮｲﾝﾄ)
736
1
104595153602
PLATE ﾌﾟﾚｰﾄ
749 2 104595154901
PLATE ﾌ
ﾟﾚｰﾄ
750 2 104595205002
ARM ｱｰﾑ
761
4
1045951561
PLATE ﾌﾟﾚｰﾄ
762 4 1045951562
BRACKET ﾌﾞﾗｹｯﾄ
766 2 1045952086
MARK TUBE ﾏｰｸﾁｭｰﾌ
ﾞ
N14
6
N300V1051A5
SWITCH ｽｲｯﾁ V-105-1A5
N15
2
N310P9141
SENSOR ｾﾝｻ P914-1
N16 3 N310P914C1
SENSOR ｾﾝｻ P914C-1
N17 3 N310P914A1
SENSOR ｾﾝｻ P914A-1
N24
2
N401CXSL-905
CYLINDER ｼﾘﾝﾀﾞ CXSL10-15-Z73S-X593
N27
4
N406AS12-056
SPEED CONTROLLER ｽﾋﾟｰﾄﾞｺﾝﾄﾛｰﾗ AS1201F-M5-04S
N31 4 XVE8B85FY
HEX. SOCKET HEAD CAP BOLT ﾛｯｶｸｱﾅﾂｷﾎﾞﾙﾄ M8X85,STEEL,Z.C.T
N34 2 N531CF4UUA
CAM FOLLOWER ｶﾑﾌｫﾛｱ CF4UU-A
N35
2
XNGNU4YFP
LOCK-NUT ﾛｯｸﾅｯﾄ M4,2-TYPE,STAINLESS,STEEL,
N36
2
XXE3C6FP
HEX. SOCKET SET SCREW ﾛｯｶｸｱﾅﾂｷﾄﾒﾈｼﾞ M3X6,STEEL,P.C
N37 1 N4354UHK
TUBE ﾁｭｰﾌ
ﾞ
30-04,BLACK
N38 1 N4354UHY
TUBE ﾁｭｰﾌ
ﾞ
30-04,YELLOW
N40
2
N310E32TC200
SENSOR ｾﾝｻ E32-TC200
N41 2 N310E39F1
LENS UNIT ﾚﾝｽﾞﾕﾆｯﾄ E39-F1
N42 2 N310E3XNT11
AMPLIFIER FOR SENSOR ｱﾝﾌ
ﾟﾕﾆｯﾄ
E3X-NT11
N44
4
XNH16DFY
HEXAGON NUT ﾛｯｶｸﾅｯﾄ M16,1-TYPE,STEEL,Z.C.T
V 1
2
N401DZ73
SENSOR ｾﾝｻ D-Z73
M12
F10459-51-700-AB-2
ﾄﾚｲﾘﾌﾀ部(40連3)
TRAY LIFTER SECT.(FOR 40 COMPONENT-3)
3
F10459-51-700-AB-3
M13
