MPAV2B Parts list(Mechanical20090625) - 第166页

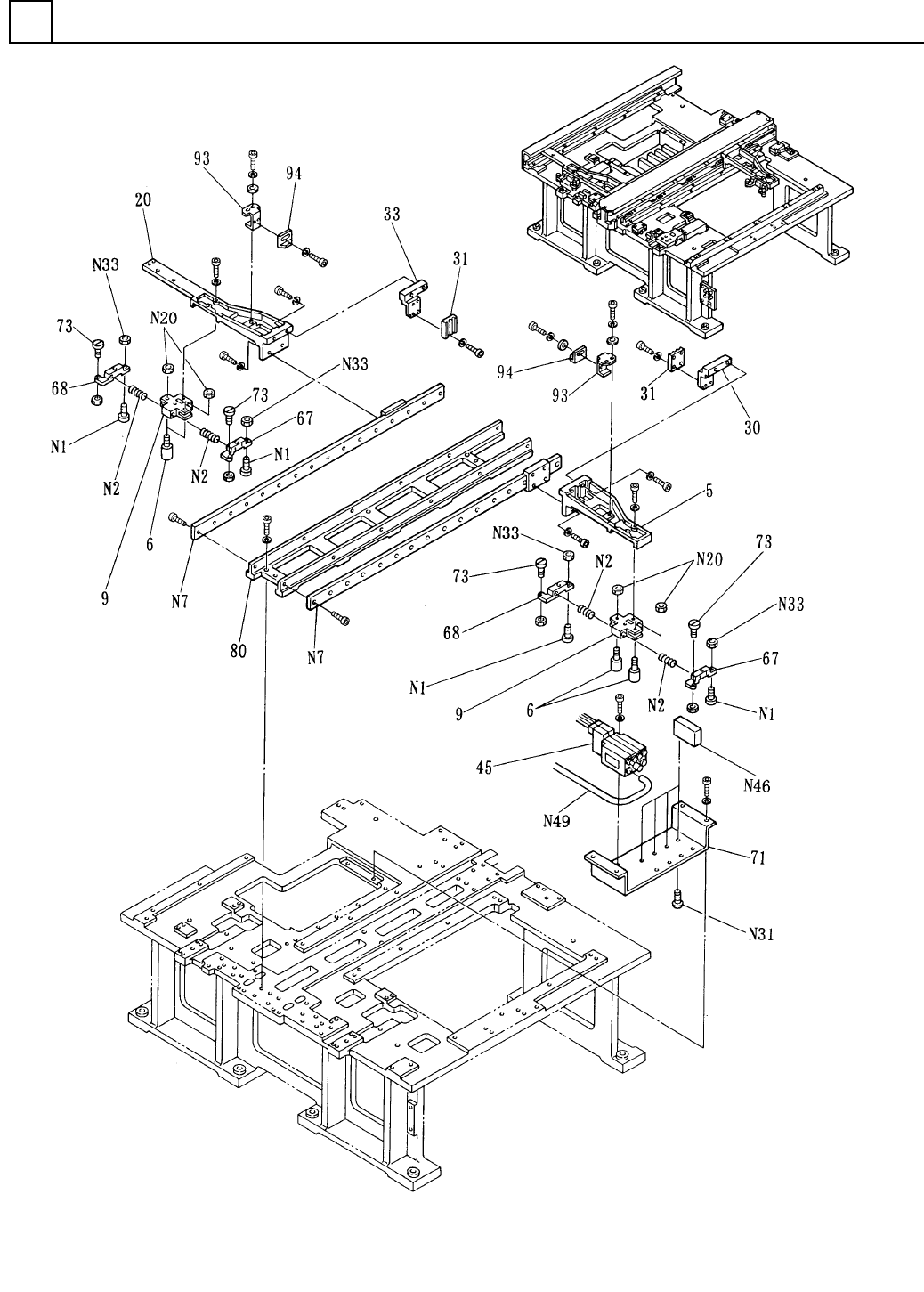

ﾄﾚｲﾌﾟﾚｰﾄ引 出し部(後部3) TRAY PLATE DRAWING SECT.(REAR -3) 4 F10459-52-000-AL_A -3 M29
ｲﾗｽﾄ
No.
REF
No.
PART No.
PART NAME
REMARKS
Q'TY
4
ﾄﾚｲﾌﾟﾚｰﾄ引出し部(後部2)
TRAY PLATE DRAWING SECT.(REAR-2)
部 品 名 品 番 個数
備 考
15 2 104595201501
CAM(SLIDE) ｶﾑ
(ｽﾗｲﾄﾞ)
23
2
104595202301
PULLEY(TIMING) ﾌﾟｰﾘｰ(ﾀｲﾐﾝｸﾞ)
24
2
104595202401
HOUSING(BEARING) ﾊｳｼﾞﾝｸﾞ(ﾍﾞｱﾘﾝｸﾞ)
39 1 104595203902
HOUSING(BEARING) ﾊｳｼ
ﾞﾝｸﾞ(ﾍﾞｱﾘﾝｸﾞ)
40 2 104595204003
PULLEY(TIMING) ﾌﾟｰﾘｰ(
ﾀｲﾐﾝｸﾞ)
42
2
1045952042
PULLEY(TIMING) ﾌﾟｰﾘｰ(ﾀｲﾐﾝｸﾞ)
43
2
104595204301
BRACKET(MOTOR) ﾌﾞﾗｹｯﾄ(ﾓｰﾀ)
44 4 101151803301
COTTER ｺｯﾀ
49 2 1045952049
PULLEY(TIMING) ﾌﾟｰﾘｰ(
ﾀｲﾐﾝｸﾞ)
86
2
1045952086
MARK TUBE ﾏｰｸﾁｭｰﾌﾞ
N 6 2 N6411317-486
BELT(TIMING) ﾍﾞﾙﾄ(ﾀｲﾐﾝｸﾞ) 1317P3M15-O
N 9 2 N401CDU1-906
CYLINDER ｼﾘﾝﾀ
ﾞ
CDU16-25D-A93
N11
2
N986FJR50.85
FLOATING JOINT ﾌﾛｰﾃｨﾝｸﾞｼﾞｮｲﾝﾄ FJR5-0.8-5
N12
2
N513RSR9-560
LINEAR MOTION UNIT ﾘﾆｱﾓｰｼｮﾝﾕﾆｯﾄ RSR9KMUU+60LM
N16 2 N986NSTD-711
STOPPER ｽﾄｯﾊﾟｰ(ｳﾚﾀﾝ) NSTD-UM-D10-L8-V5-T3
N17 8 XLB6900UU
BALL BEARING ﾎﾞｰﾙﾍ
ﾞｱﾘﾝｸﾞ
6900UU
N18
2
XUB10FP
RETAINING RING C-TYPE C ｶﾞﾀｼﾞｸﾖｳﾄﾒﾜ 10,STEEL,P.C
N24
2
N641177P3M15
BELT(TIMING) ﾍﾞﾙﾄ(ﾀｲﾐﾝｸﾞ) 177P3M15
N28 8 XVEN6M16FPZ
HEX. SOCKET BUTTON HEAD BOL ﾛｯｶｸｱﾅﾂｷﾎﾞﾀﾝﾎﾞﾙﾄ M6X16,STEEL,P.C
N29 2 XVEN8M16FPZ
HEX. SOCKET BUTTON HEAD BOL ﾛｯｶｸｱﾅﾂｷﾎ
ﾞﾀﾝﾎﾞﾙﾄ
M8X16,STEEL,P.C
N37
2
XVEN4M16FPZ
HEX. SOCKET BUTTON HEAD BOL ﾛｯｶｸｱﾅﾂｷﾎﾞﾀﾝﾎﾞﾙﾄ M4X16,STEEL,P.C
N41
4
N431KJU0400
FITTING ﾂｷﾞﾃ KJU04-00
N42 4 N406AS12-014
SPEED CONTROLLER ｽﾋﾟ
ｰﾄﾞｺﾝﾄﾛｰﾗ
AS1201F-M5-04
N50 1 N4354UHY
TUBE ﾁｭｰﾌ
ﾞ
30-04,YELLOW
N51
1
N4356UHK
TUBE ﾁｭｰﾌﾞ 30-06,BLACK
S 1 1 304591350106
MOTOR SET ﾓｰﾀｾｯﾄ
S 2 1 304591350206
MOTOR SET ﾓｰﾀｾｯﾄ
M28
F10459-52-000-AL_A-2
ﾄﾚｲﾌﾟﾚｰﾄ引出し部(後部3)
TRAY PLATE DRAWING SECT.(REAR-3)
4
F10459-52-000-AL_A-3
M29
ｲﾗｽﾄ
No.
REF
No.
PART No.
PART NAME
REMARKS
Q'TY
4
ﾄﾚｲﾌﾟﾚｰﾄ引出し部(後部3)
TRAY PLATE DRAWING SECT.(REAR-3)
部 品 名 品 番 個数
備 考
5 1 104595200503
ARM(RIGHT) ｱｰﾑ
(ﾗｲﾄ)
6
4
1045952006
PIN ﾋﾟﾝ
9
2
104595200901
HOLDER ﾎﾙﾀﾞ
20 1 104595202007
ARM(LEFT) ｱｰﾑ
(ﾚﾌﾄ)
30 1 104595203002
BASE(CLAMP) ﾍﾞｰｽ(ｸﾗﾝﾌ
ﾟ)
31
2
104595203102
PLATE(CLAMP) ﾌﾟﾚｰﾄ(ｸﾗﾝﾌﾟ)
33
1
104595203302
BASE(CLAMP) ﾍﾞｰｽ(ｸﾗﾝﾌﾟ)
45 1 104595204504
VALVE ﾊ
ﾞﾙﾌﾞ
67 2 104595206701
LEVER ﾚﾊ
ﾞｰ
68
2
104595206801
LEVER ﾚﾊﾞｰ
71 1 104595207101
BRACKET ﾌﾞﾗｹｯﾄ
73 4 1045952073
PIN ﾋ
ﾟﾝ
80
1
104595208001
BASE ﾍﾞｰｽ
93
2
1045952093
DOG FOR SENSOR ｾﾝｻﾄﾞｸﾞ
94 2 1045952094
DOG FOR SENSOR ｾﾝｻﾄﾞｸﾞ
N 1 4 N532CFS4
CAM FOLLOWER ｶﾑﾌｫﾛｱ CFS4
N 2
4
N986WL635
SPRING ﾊﾞﾈ WL6-35
N 7
2
N513RSR1-566
LINEAR MOTION UNIT ﾘﾆｱﾓｰｼｮﾝﾕﾆｯﾄ RSR12WNUUC1+638LHM
N20 4 XNGNU4YFP
LOCK-NUT ﾛｯｸﾅｯﾄ M4,2-TYPE,STAINLESS,STEEL,
N31 9 XSN3+6FY
PAN HEAD SCREW ﾅﾍ
ﾞｺﾈｼﾞ
M3X6,+,STEEL,Z.C.T
N33
4
XNG4CFP
HEXAGON NUT ﾛｯｶｸﾅｯﾄ M4,3-TYPE,STEEL,P.C
N46
4
N310P917
AMPLIFIER ｱﾝﾌﾟ P917
N49 1 N4354UHK
TUBE ﾁｭｰﾌ
ﾞ
30-04,BLACK
M30
F10459-52-000-AL_A-3
