ｲﾗｽﾄ No. REF No. PART No. PART NAME REMAR KS Q'TY 2 ｶﾊﾞｰ 部(共通部2) COVER SECT. (COMMON SECT.-2) 部 品 名 品 番 個数 備 考 616 1 104597161601 BRACKET ﾌ ﾞﾗｹｯﾄ 619 1 104597161901 BOX ﾎﾞｯｸｽ 620 1 104597162001 PLATE ﾌﾟﾚｰﾄ 621 1 104…

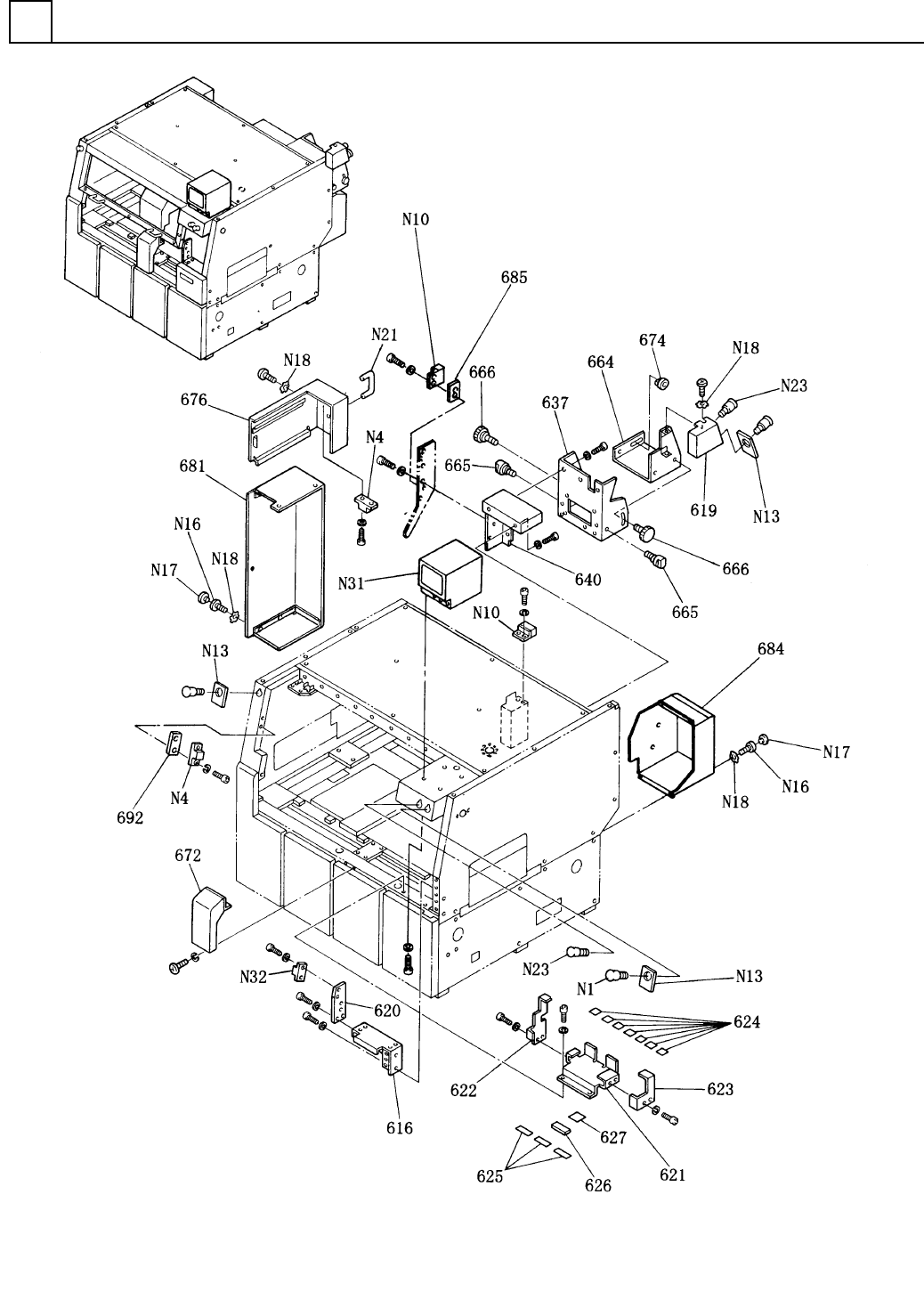

ｶﾊﾞｰ部(共通部2)
COVER SECT.(COMMON SECT.-2)
2
F10459-71-600-AP-2
M7
ｲﾗｽﾄ
No.
REF
No.
PART No.
PART NAME
REMARKS
Q'TY
2
ｶﾊﾞｰ部(共通部2)
COVER SECT.(COMMON SECT.-2)
部 品 名 品 番 個数
備 考
616 1 104597161601
BRACKET ﾌ
ﾞﾗｹｯﾄ
619
1
104597161901
BOX ﾎﾞｯｸｽ
620
1
104597162001
PLATE ﾌﾟﾚｰﾄ
621 1 104590252101
BRACKET ﾌ
ﾞﾗｹｯﾄ
622 1 1045902522
BRACKET ﾌﾞﾗｹｯﾄ
623
1
1044131035
BRACKET ﾌﾞﾗｹｯﾄ
624
7
1044131036
CUSHION ｸｯｼｮﾝ
625 3 1044131037
CUSHION ｸｯｼｮﾝ
626 1 1044131038
CUSHION ｸｯｼｮﾝ
627
1
1044131040
CUSHION ｸｯｼｮﾝ
637 1 1045971637
BRACKET ﾌﾞﾗｹｯﾄ
640 1 1045971640
BRACKET ﾌ
ﾞﾗｹｯﾄ
664
1
1045971664
BRACKET ﾌﾞﾗｹｯﾄ
665
2
1045971665
PIN ﾋﾟﾝ
666 2 104590246601
KNOB ﾉﾌﾞ
672 1 104597167201
COVER ｶﾊ
ﾞｰ
674
1
1045902477
NUT ﾅｯﾄ
676
1
104597167601
COVER ｶﾊﾞｰ
681 1 104597168104
COVER ｶﾊﾞｰ
684 1 1045971684
COVER(MOTOR) ｶﾊ
ﾞｰ(MOTOR)
685
1
1045971685
SPACER ｽﾍﾟｰｻ
692
1
1045971692
PLATE ﾌﾟﾚｰﾄ
N 1 1 N306RPVK02
SWITCH ｽｲｯﾁ RPV/K02
N 4 2 N982TL1193
MAGNETIC CATCH ﾏｸ
ﾞﾈｯﾄｷｬｯﾁ
TL-73S-1193
N10
2
N982TL1177
MAGNETIC CATCH ﾏｸﾞﾈｯﾄｷｬｯﾁ TL-71-1177
N13 3 N306ZK299J1
INDICATING PLATE ﾋｮｳｼﾞﾊﾞﾝ ZK-299J1
N16 7 N986JBAM512
BOLT ﾎ
ﾞﾙﾄ
JB-AM5X12
N17
7
N986YYYY-814
CAP ｷｬｯﾌﾟ M5X12
N18
11
XWC5BFY
TOOTHED LOCK WASHER ﾊﾂｷｻﾞｶﾞﾈ 5,B-TYPE,STEEL,Z.C.T
N21 1 N980A1042C6
DRAWER PULL ﾄｯﾃ A-1042-C-6
N23 2 N306RD11K10
SWITCH ｽｲｯﾁ RD-11/K10
N31
1
N900GPBM910K
VIDEO MONITOR ﾋﾞﾃﾞｵﾓﾆﾀ GP-BM910K
N32
1
N982TL1789
MAGNETIC CATCH ﾏｸﾞﾈｯﾄｷｬｯﾁ TL-273-1789
M8
F10459-71-600-AP-2

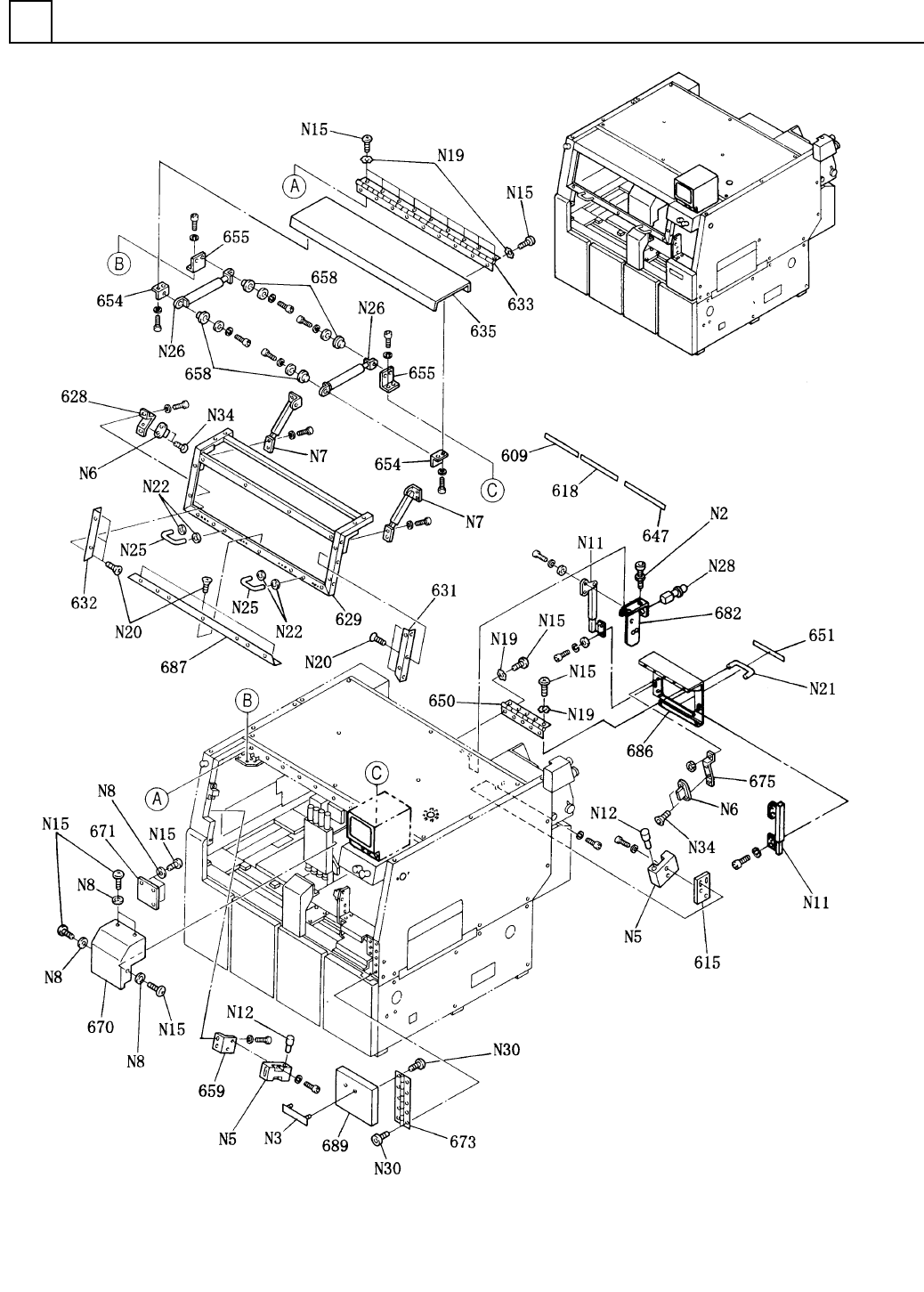

ｶﾊﾞｰ部(共通部3)
COVER SECT.(COMMON SECT.-3)
2
F10459-71-600-AP-3
M9
