MPAV2B Parts list(Mechanical20090625) - 第31页
ｲﾗｽﾄ No. REF No. PART No. PART NAME REMAR KS Q'TY 2 ｶﾊﾞｰ部( 1) COVER SECT. (1) 部 品 名 品 番 個数 備 考 1 1045902400 COVER UNIT ｶﾊ ﾞｰﾕﾆｯﾄ 405 1 1045902405 UPPER FRAME ﾌﾚｰﾑ(ｱｯﾊﾟｰ) 406 1 1045902406 SIDE FRAME ﾌﾚｰﾑ(SIDE) 407 1 …

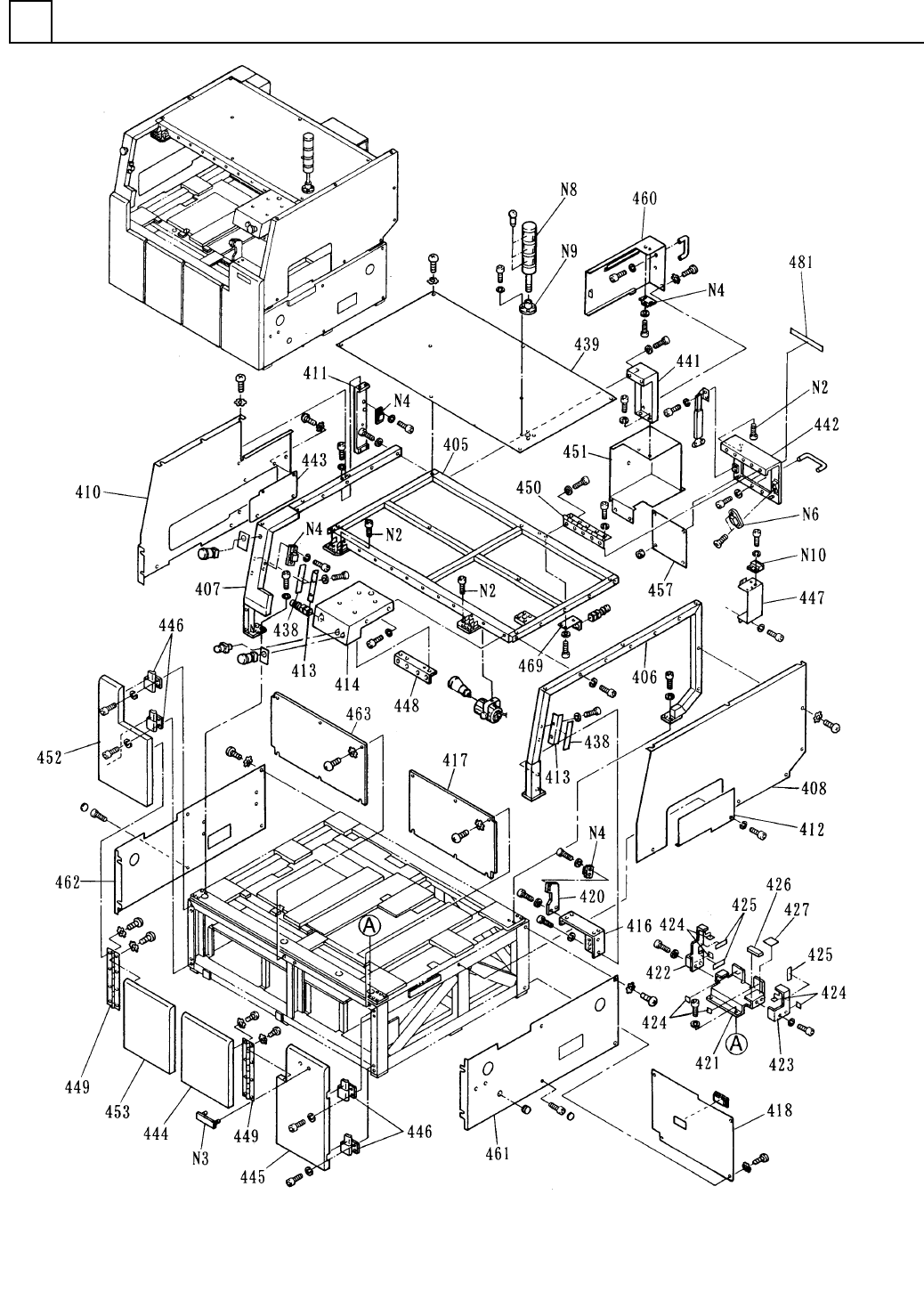

ｶﾊﾞｰ部(1)
COVER SECT.(1)
2
F10459-02-400-AD-1
M11
ｲﾗｽﾄ
No.
REF
No.
PART No.
PART NAME
REMARKS
Q'TY
2
ｶﾊﾞｰ部(1)
COVER SECT.(1)
部 品 名 品 番 個数
備 考
1 1045902400
COVER UNIT ｶﾊ
ﾞｰﾕﾆｯﾄ
405
1
1045902405
UPPER FRAME ﾌﾚｰﾑ(ｱｯﾊﾟｰ)
406
1
1045902406
SIDE FRAME ﾌﾚｰﾑ(SIDE)
407 1 1045902407
SIDE FRAME ﾌﾚｰﾑ
(SIDE)
408 1 1045902408
SIDE COVER ｶﾊﾞｰ(
SIDE)
410
1
104590241001
SIDE COVER ｶﾊﾞｰ(SIDE)
411
1
1045902411
BRACKET ﾌﾞﾗｹｯﾄ
412 1 1045902412
SIDE COVER ｶﾊ
ﾞｰ(SIDE)
413 2 104418200403
BRACKET ﾌﾞﾗｹｯﾄ
414
1
1045902414
COVER ｶﾊﾞｰ
416 1 1045902416
BRACKET ﾌﾞﾗｹｯﾄ
417 1 104590251701
COVER ｶﾊ
ﾞｰ
418
1
1045902418
REAR COVER ｶﾊﾞｰ(REAR)
420
1
1045902420
PLATE ﾌﾟﾚｰﾄ
421 1 104590252101
BRACKET ﾌﾞﾗｹｯﾄ
422 1 1045902522
BRACKET ﾌ
ﾞﾗｹｯﾄ
423
1
1044131035
BRACKET ﾌﾞﾗｹｯﾄ
424
7
1044131036
CUSHION ｸｯｼｮﾝ
425 3 1044131037
CUSHION ｸｯｼｮﾝ
426 1 1044131038
CUSHION ｸｯｼｮﾝ
427
1
1044131040
CUSHION ｸｯｼｮﾝ
438
2
1044182003
MAGNET ﾏｸﾞﾈｯﾄ
439 1 1045902439
TOP COVER ｶﾊ
ﾞｰ(TOP)
441 1 1045902441
COVER ｶﾊ
ﾞｰ
442
1
104597144201
REAR COVER ｶﾊﾞｰ(REAR)
443 1 1045902443
COVER ｶﾊﾞｰ
444 1 1045902444
DOOR ﾄ
ﾞｱ
445
1
1045902445
RIGHT DOOR ﾄﾞｱ(RIGHT)
446
4
1045902446
HINGE ﾋﾝｼﾞ
447 1 1045989211
COVER ｶﾊﾞｰ
448 1 104590205003
BRACKET ﾌ
ﾞﾗｹｯﾄ
449
2
1045902009
HINGE ﾋﾝｼﾞ
450
1
1045902034
HINGE ﾋﾝｼﾞ
451 1 104590245101
COVER(MOTOR) ｶﾊﾞｰ(MOTOR)
452 1 1045902452
LEFT DOOR ﾄﾞｱ(LEFT
)
453
1
1045902453
DOOR ﾄﾞｱ
457
1
1045902666
REAR COVER ｶﾊﾞｰ(REAR)
460 1 1045902460
COVER ｶﾊ
ﾞｰ
461 1 1045902461
SIDE COVER ｶﾊﾞｰ(
SIDE)
462
1
1045902462
SIDE COVER ｶﾊﾞｰ(SIDE)
463 1 1045902463
COVER ｶﾊﾞｰ
469 1 1045902469
BRACKET ﾌ
ﾞﾗｹｯﾄ
481
1
1045907820
NUMBER LABEL ﾅﾝﾊﾞｰﾗﾍﾞﾙ
N 2
3
N986UNST640
BOLT ﾎﾞﾙﾄ UNST6-40
N 3 1 N986P18Y-023
INDICATING PLATE ﾊﾟﾅｿﾆｯｸﾏｰｸ P-18,SCREW-TYPE
N 4 4 N982TL1193
MAGNETIC CATCH ﾏｸ
ﾞﾈｯﾄｷｬｯﾁ
TL-73S-1193
N 6
1
N300ACTU-010
ACTUATOR ｱｸﾁｭｴｰﾀ ACTUATORB1
N 8
1
N224ST30-298
SIGNAL LIGHT ｼｸﾞﾅﾙﾗｲﾄ ST-302-200L,R.Y.G
N 9 1 N224SZ010
STAND ｽﾀﾝﾄﾞ SZ-010
N10 1 N982TL1177
MAGNETIC CATCH ﾏｸ
ﾞﾈｯﾄｷｬｯﾁ
TL-71-1177
M12
F10459-02-400-AD-1
ｶﾊﾞｰ部(1)
COVER SECT.(1)
2

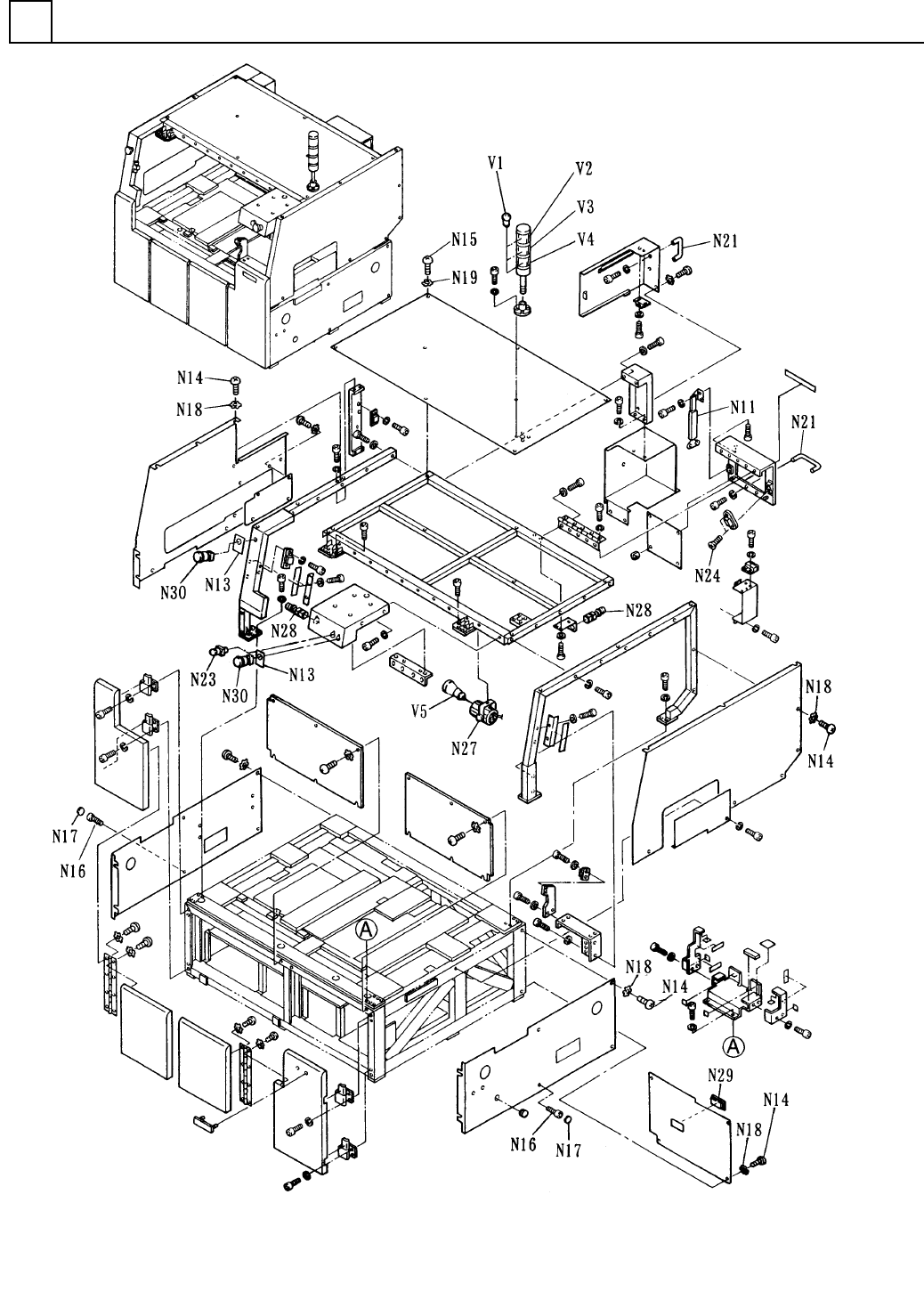

F10459-02-400-AD-2
M13
