MPAV2B Parts list(Mechanical20090625) - 第34页
ｶﾊﾞｰ部 (2) COVER SECT. (2) 2 F10459-02-400-AD-3 M15
ｲﾗｽﾄ
No.
REF
No.
PART No.
PART NAME
REMARKS
Q'TY
2
ｶﾊﾞｰ部(1)
COVER SECT.(1)
部 品 名 品 番 個数
備 考
N11 1 N982TM5006
STAY ｽﾃｰ TM-209-5006
N13
2
N306ZK299J1
INDICATING PLATE ﾋｮｳｼﾞﾊﾞﾝ ZK-299J1
N14
26
XST5+12FY
TRUSS HEAD SCREW ﾄﾗｽｺﾈｼﾞ M5X12,+,STEEL,Z.C.T
N15 30 XST4+8FY
TRUSS HEAD SCREW ﾄﾗｽｺﾈｼ
ﾞ
M4X8,+,STEEL,Z.C.T
N16 36 N986JBAM512
BOLT ﾎﾞ
ﾙﾄ
JB-AM5X12
N17
36
N986YYYY-814
CAP ｷｬｯﾌﾟ M5X12
N18
52
XWC5BFY
TOOTHED LOCK WASHER ﾊﾂｷｻﾞｶﾞﾈ 5,B-TYPE,STEEL,Z.C.T
N19 30 XWC4BFY
TOOTHED LOCK WASHER ﾊﾂｷｻ
ﾞｶﾞﾈ
4,B-TYPE,STEEL,Z.C.T
N21 2 N980A1042C6
DRAWER PULL ﾄｯﾃ A-1042-C-6
N23
1
N306RD11K10
SWITCH ｽｲｯﾁ RD-11/K10
N24 2 XSS5+12FY
FLUSH HEAD SCREW ｻﾗｺﾈｼﾞ M5X12,+,STEEL,Z.C.T
N27 1 N911ML24
LIGHTING UNIT ｼｮｳﾒｲﾕﾆｯﾄ ML-24
N28
2
N306TM28-008
SWITCH ｽｲｯﾁ TM-2-8221/EZ/S-N
N29
1
N348KG012
BUSHING FOR WIRING ｼﾞｻﾞｲﾌﾞｯｼｭ KG-012
N30 2 N306RPVK02
SWITCH ｽｲｯﾁ RPV/K02
V 1 3 N224D30-258
LAMP ﾗﾝﾌ
ﾟ
D03001006A
V 2
1
N224STYY-168
GLOBE ｸﾞﾛｰﾌﾞ ST-TYPE,RED
V 3
1
N224STYY-156
GLOBE ｸﾞﾛｰﾌﾞ ST-TYPE,YELLOW
V 4 1 N224STYY-158
GLOBE ｸﾞﾛｰﾌﾞ ST-TYPE,GREEN
V 5 1 N911M296-012
LAMP ﾗﾝﾌ
ﾟ
M2964 24V25W
M14
F10459-02-400-AD-2

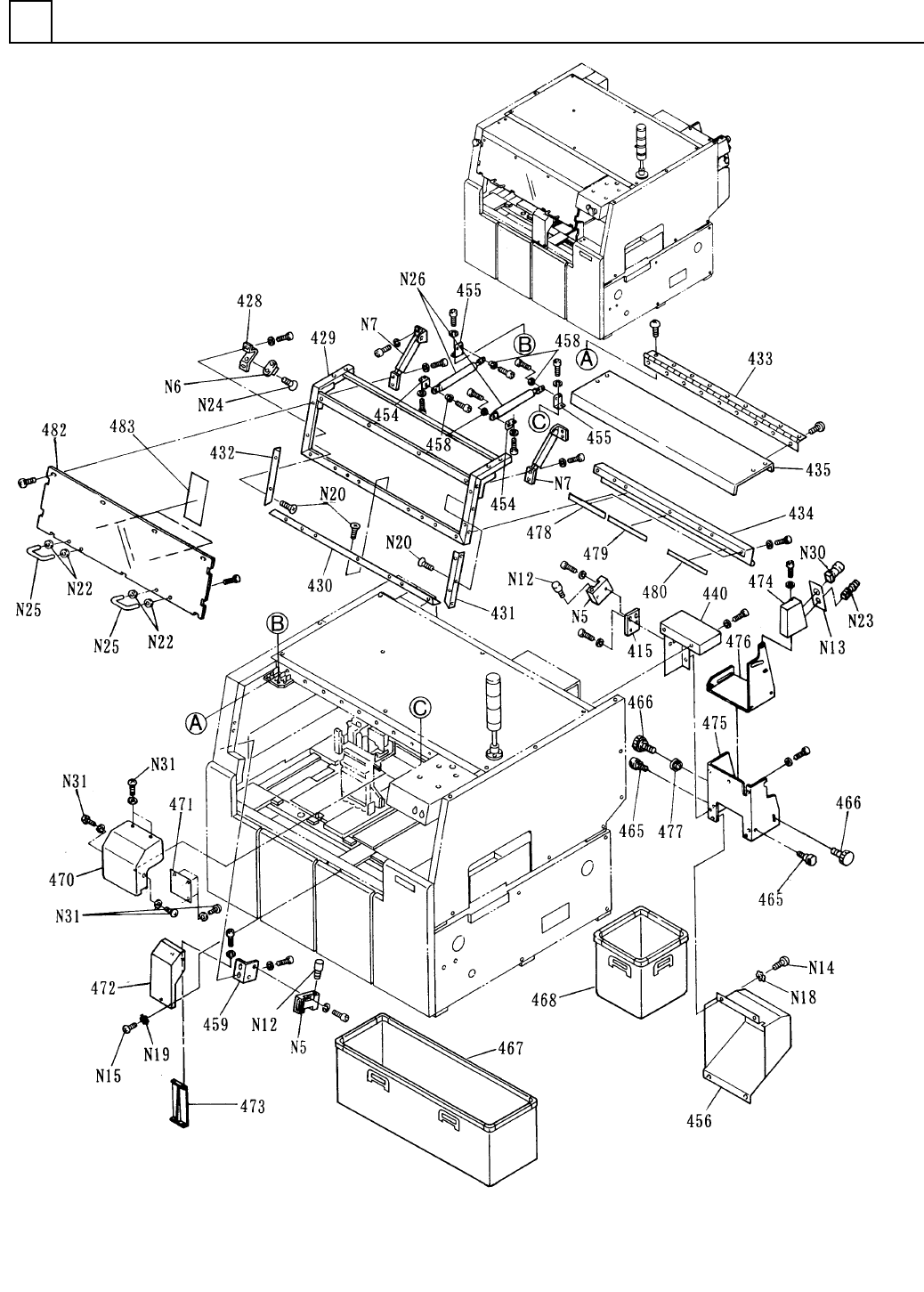

ｶﾊﾞｰ部(2)
COVER SECT.(2)
2
F10459-02-400-AD-3
M15
ｲﾗｽﾄ
No.
REF
No.
PART No.
PART NAME
REMARKS
Q'TY
2
ｶﾊﾞｰ部(2)
COVER SECT.(2)
部 品 名 品 番 個数
備 考
1 1045902400
COVER UNIT ｶﾊ
ﾞｰﾕﾆｯﾄ
415
1
1045902415
PLATE ﾌﾟﾚｰﾄ
428
1
1045902564
BRACKET ﾌﾞﾗｹｯﾄ
429 1 1045902429
BRACKET ﾌ
ﾞﾗｹｯﾄ
430 1 1045902430
BRACKET ﾌﾞﾗｹｯﾄ
431
1
1045902431
BRACKET ﾌﾞﾗｹｯﾄ
432
1
1045902432
BRACKET ﾌﾞﾗｹｯﾄ
433 1 1045902536
HINGE ﾋﾝｼ
ﾞ
434 1 104590243401
GUARD ｶﾞ
ｰﾄﾞ
435
1
1045902435
FRONT COVER ｶﾊﾞｰ(FRONT)
440 1 1045902440
BRACKET ﾌﾞﾗｹｯﾄ
454 2 1045902454
BRACKET ﾌ
ﾞﾗｹｯﾄ
455
2
1045902455
BRACKET ﾌﾞﾗｹｯﾄ
456
1
1045902456
COVER(MOTOR) ｶﾊﾞｰ(MOTOR)
458 4 102377215201
PIN ﾋﾟﾝ
459 1 1045902459
BRACKET ﾌ
ﾞﾗｹｯﾄ
465
2
1045289853
PIN ﾋﾟﾝ
466
2
104590246601
KNOB ﾉﾌﾞ
467 1 1045971667
DUST BOX ﾀﾞｽﾄﾎﾞｯｸｽ
468 1 1045971668
DUST BOX ﾀﾞ
ｽﾄﾎﾞｯｸｽ
470
1
1045902470
FRONT COVER ｶﾊﾞｰ(FRONT)
471
1
104590902001
COVER ｶﾊﾞｰ
472 1 1045902472
COVER ｶﾊ
ﾞｰ
473 1 1045902667
BRACKET ﾌ
ﾞﾗｹｯﾄ
474
1
1045902474
BOX ﾎﾞｯｸｽ
475 1 1045902475
BRACKET ﾌﾞﾗｹｯﾄ
476 1 1045902476
BRACKET ﾌ
ﾞﾗｹｯﾄ
477
1
1045902477
NUT ﾅｯﾄ
478
1
1045907727
NUMBER LABEL ﾅﾝﾊﾞｰﾗﾍﾞﾙ
479 1 1045907728
NUMBER LABEL ﾅﾝﾊﾞｰﾗﾍﾞﾙ
480 1 1045907621
NUMBER LABEL ﾅﾝﾊ
ﾞｰﾗﾍﾞﾙ
482
1
1045902482
FRONT COVER ｶﾊﾞｰ(FRONT)
483
2
1045902659
LABEL ﾗﾍﾞﾙ
N 5 2 N300AZ16-027
SWITCH ｽｲｯﾁ AZ16-03ZVRK(5N)
N 6 1 N300ACTU-010
ACTUATOR ｱｸﾁｭｴｰﾀ ACTUATORB1
N 7
2
N980B14603
STAY ｽﾃｰ B-1460-3
N12
2
N30025011
CONNECTOR ｺﾈｸﾀ 250/11
N13 1 N306ZK299J1
INDICATING PLATE ﾋｮｳｼ
ﾞﾊﾞﾝ
ZK-299J1
N14 4 XST5+12FY
TRUSS HEAD SCREW ﾄﾗｽｺﾈｼ
ﾞ
M5X12,+,STEEL,Z.C.T
N15
28
XST4+8FY
TRUSS HEAD SCREW ﾄﾗｽｺﾈｼﾞ M4X8,+,STEEL,Z.C.T
N18 14 XWC5BFY
TOOTHED LOCK WASHER ﾊﾂｷｻﾞｶﾞﾈ 5,B-TYPE,STEEL,Z.C.T
N19 28 XWC4BFY
TOOTHED LOCK WASHER ﾊﾂｷｻ
ﾞｶﾞﾈ
4,B-TYPE,STEEL,Z.C.T
N20
9
XSS4+8FT
FLUSH HEAD SCREW ｻﾗｺﾈｼﾞ M4X8,+,STEEL,T.T.C
N22
4
N982THA3465
WASHER ｻﾞｶﾞﾈ THA-271-2(3465)
N23 1 N306RD11K10
SWITCH ｽｲｯﾁ RD-11/K10
N24 2 XSS5+12FY
FLUSH HEAD SCREW ｻﾗｺﾈｼ
ﾞ
M5X12,+,STEEL,Z.C.T
N25
2
N982THA3425
DRAWER PULL ﾄｯﾃ THA-216-5(3425)
N26
2
N98630P2
GAS SPRING ｶﾞｽｽﾌﾟﾘﾝｸﾞ 30P2
N30 1 N306RPVK02
SWITCH ｽｲｯﾁ RPV/K02
N31 7 XST4+8FY
TRUSS HEAD SCREW ﾄﾗｽｺﾈｼ
ﾞ
M4X8,+,STEEL,Z.C.T
M16
F10459-02-400-AD-3
