MPAV2B Parts list(Mechanical20090625) - 第44页
X-Yﾃｰﾌﾞﾙ部 (X軸ｶﾊﾞｰ部) X-Y TABLE S ECT.(X-AXIS COVER SECT.) 3 F10459-04-300-AB M25
ｲﾗｽﾄ
No.
REF
No.
PART No.
PART NAME
REMARKS
Q'TY
3
X-Yﾃｰﾌﾞﾙ部(Y軸本体部)
X-Y TABLE SECT.(Y-AXIS BASE SECT.)
部 品 名 品 番 個数
備 考
1 1045904250
X-Y TABLE UNIT X-Y
ﾃｰﾌﾞﾙﾕﾆｯﾄ
252
2
104590425203
LINEAR MOTION UNIT ﾘﾆｱﾓｰｼｮﾝﾕﾆｯﾄ
253
2
1045904153
BRACKET ﾌﾞﾗｹｯﾄ
254 2 104590425403
BRACKET(MOTOR) ﾌﾞ
ﾗｹｯﾄ(ﾓｰﾀ)
255 2 104590410501
COLLAR ｶﾗｰ
256
2
1045904106
BEARING WEIGHT ﾍﾞｱﾘﾝｸﾞｳｴｲﾄ
257
8
515141000301
RUBBER ｺﾞﾑ CK-3410 (HS40)
258 2 1045904108
DOG FOR SENSOR ｾﾝｻﾄ
ﾞｸﾞ
259 2 1045904109
DOG FOR SENSOR ｾﾝｻﾄ
ﾞｸﾞ
260
6
1045904110
PLATE(SENSOR) ﾌﾟﾚｰﾄ(ｾﾝｻ)
261 2 1045904261
RAIL(SENSOR) ﾚｰﾙ(ｾﾝｻ)
262 2 1045904262
RAIL(SENSOR) ﾚｰﾙ
(ｾﾝｻ)
269
2
1045904123
CAP ｷｬｯﾌﾟ
270
1
104590427001
SPACER ｽﾍﾟｰｻ
274 1 104590422403
GUIDE(CABLE) ｶﾞｲﾄﾞ(ｹｰﾌﾞﾙ)
275 1 1045904225
BRACKET ﾌ
ﾞﾗｹｯﾄ
276
1
1045904226
BRACKET ﾌﾞﾗｹｯﾄ
278
2
104590427801
STOPPER ｽﾄｯﾊﾟｰ
283 1 104590428301
DOG FOR SENSOR ｾﾝｻﾄﾞｸﾞ
284 12 1045904185
SHEET ｼｰﾄ
288
4
1045904188
PLATE ﾌﾟﾚｰﾄ
289
2
104590419003
PLATE ﾌﾟﾚｰﾄ
N51 2 XLCN6905ZZCM
BEARING ﾎﾞｰﾙﾍ
ﾞｱﾘﾝｸﾞ
6905ZZCM
N52 2 XLLN7204-046
BALL BEARING ﾎﾞｰﾙﾍ
ﾞｱﾘﾝｸﾞ
7204ADFCP10
N53
2
MDM152A4C
MOTOR ﾓｰﾀ MDM152A4C
N54 2 XNRNFU04SS
LOCK-NUT ﾛｯｸﾅｯﾄ FU04SS
N55 2 N644N1722
COUPLING ｶｯﾌ
ﾟﾘﾝｸﾞ
N-17-22
N56
2
XUA42FP
RETAINING RING C-TYPE, CORE C ｶﾞﾀｱﾅﾖｳﾄﾒﾜ 42,STEEL,P.C
N57
2
N312TLW3MC1
SENSOR ｾﾝｻ TL-W3MC1
N58 4 N312TLW3MC2
SENSOR ｾﾝｻ TL-W3MC2
N59 2 N312TLW3MC25
SENSOR ｾﾝｻ TL-W3MC25
N60
4
N300D4C1232
SWITCH ｽｲｯﾁ D4C-1232
N61
2
N656L1DA-033
SCALE ｽｹｰﾙ LIDA109
N63 10 XXE4C16FP
HEX. SOCKET SET SCREW ﾛｯｶｸｱﾅﾂｷﾄﾒﾈｼﾞ M4X16,STEEL,P.C
N64 14 XVEN3M5FPZ
BOLT ﾛｯｶｸｱﾅﾂｷﾎ
ﾞﾀﾝﾎﾞﾙﾄ
M3X5,STEEL,P.C
N66
2
XXE4C3FP
HEX. SOCKET SET SCREW ﾛｯｶｸｱﾅﾂｷﾄﾒﾈｼﾞ M4X3,STEEL,P.C
N69
7
N986YYYY-B53
BOLT ﾛｯｶｸｱﾅﾂｷｻﾗﾎﾞﾙﾄ M4X25
N70 2 N643W251-177
BALL SCREW ﾎ
ﾞｰﾙﾈｼﾞ
W2512-201P-C5Z20
M24
F10459-04-250-AG

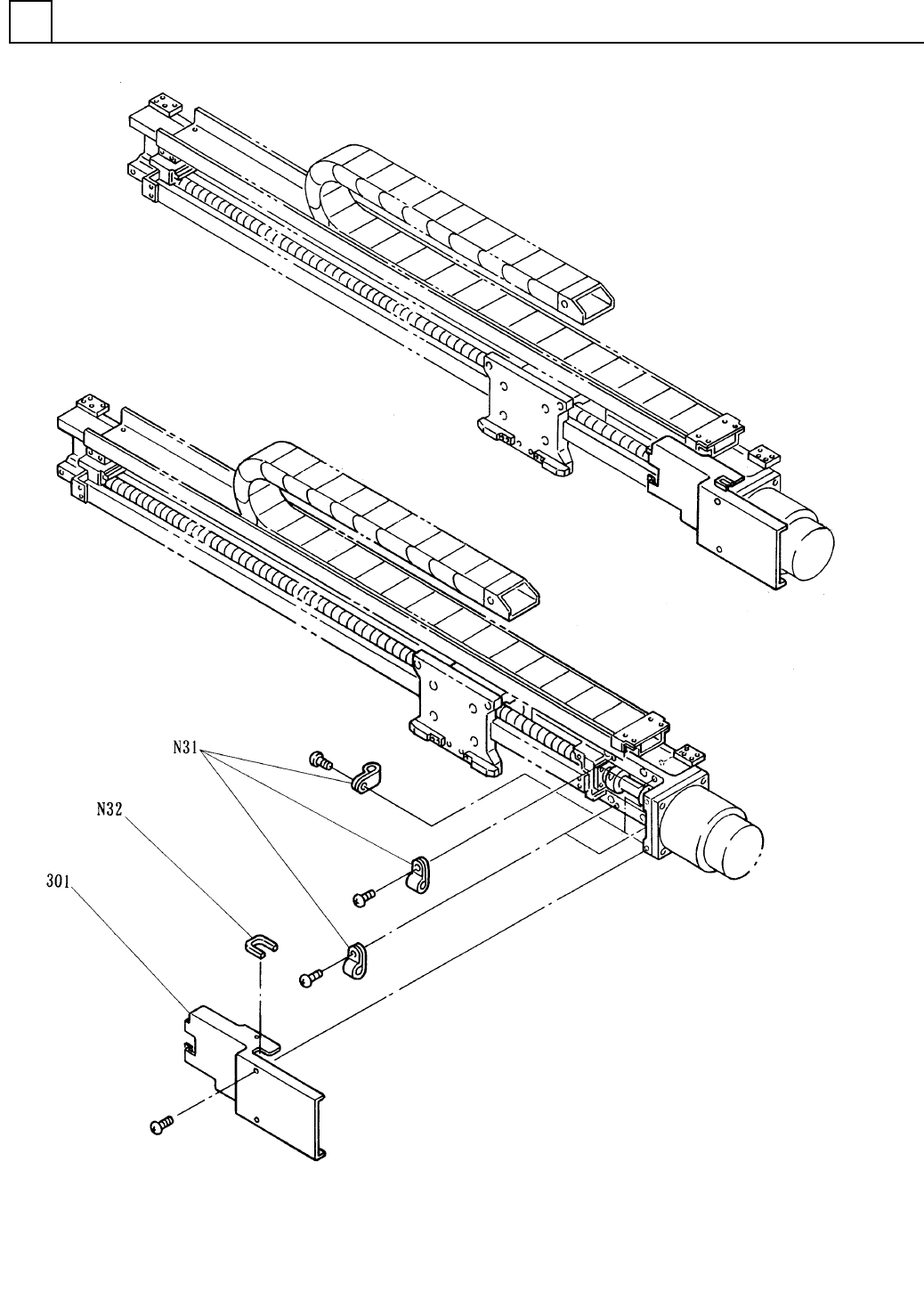

X-Yﾃｰﾌﾞﾙ部(X軸ｶﾊﾞｰ部)
X-Y TABLE SECT.(X-AXIS COVER SECT.)
3
F10459-04-300-AB
M25
ｲﾗｽﾄ
No.
REF
No.
PART No.
PART NAME
REMARKS
Q'TY
3
X-Yﾃｰﾌﾞﾙ部(X軸ｶﾊﾞｰ部)
X-Y TABLE SECT.(X-AXIS COVER SECT.)
部 品 名 品 番 個数
備 考
1 1045904300
X-Y TABLE UNIT X-Y
ﾃｰﾌﾞﾙﾕﾆｯﾄ
301
1
104590430103
COVER ｶﾊﾞｰ
N31
6
N348NK5NK
CLAMPER ｸﾗﾝﾊﾟｰ NK-5N
N32 1 N348EL10
BUSHING FOR WIRING ﾌ
ﾞｯｼｭ
EL-10
M26
F10459-04-300-AB
