MPAV2B Parts list(Mechanical20090625) - 第66页

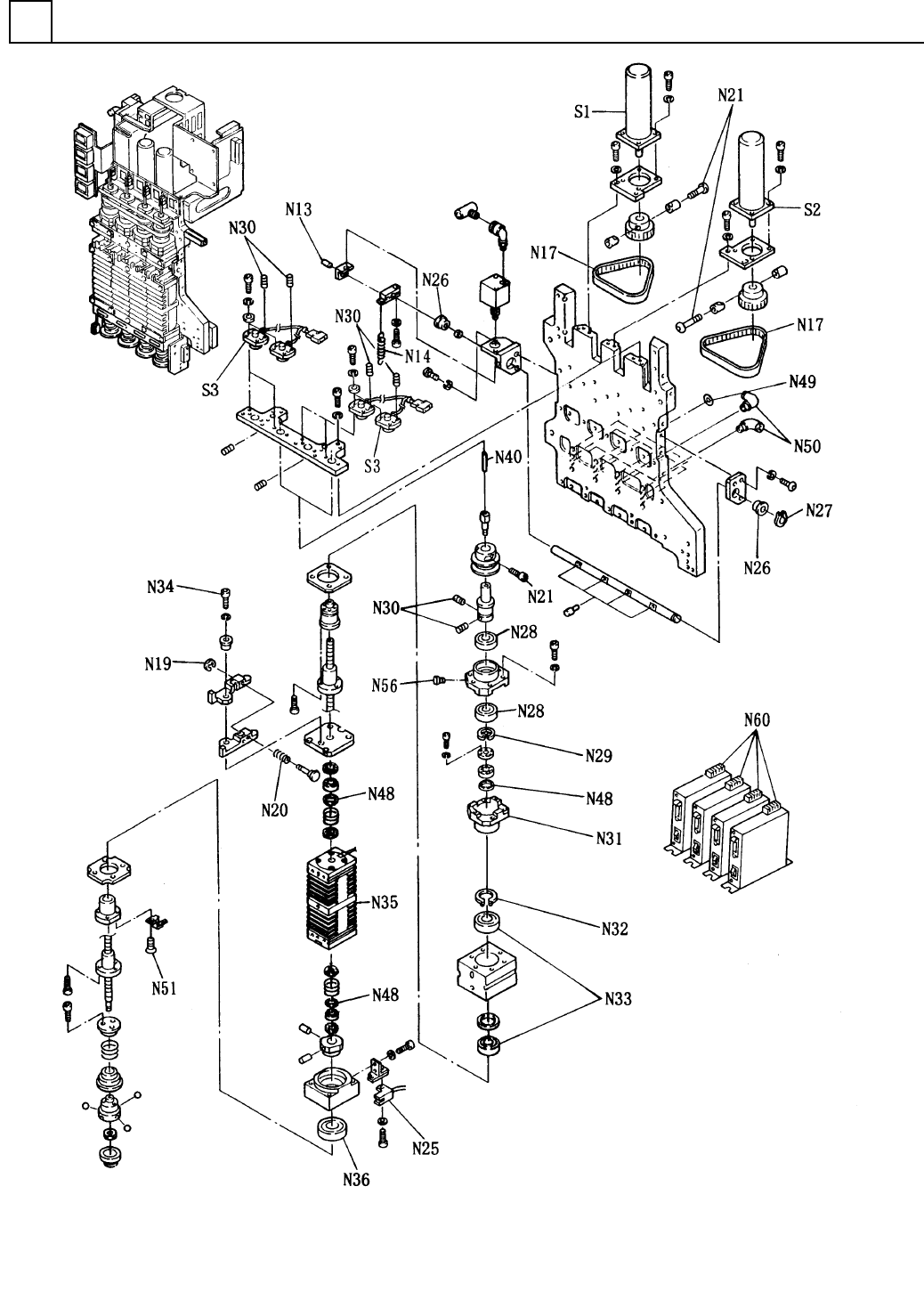

ﾍｯﾄﾞ駆動部( 2) HEAD DRIVIN G SECT.(2) 5 F10459-09-300-AV-4 M47
ｲﾗｽﾄ
No.
REF
No.
PART No.
PART NAME
REMARKS
Q'TY
5
ﾍｯﾄﾞ駆動部(2)
HEAD DRIVING SECT.(2)
部 品 名 品 番 個数
備 考
302 2 104590900204
FLANGE ﾌﾗﾝｼ
ﾞ
303
2
104590900302
SPRING ﾊﾞﾈ
304
2
104590900403
PUSHER ﾌﾟｯｼｬ
310 1 104590905406
HOLDER ﾎﾙﾀ
ﾞ
314 1 104590931401
LEVER ﾚﾊ
ﾞｰ
315
1
104590931501
BLOCK ﾌﾞﾛｯｸ
316
1
1045909007
SPACER ｽﾍﾟｰｻ
317 1 104590931701
BRACKET ﾌ
ﾞﾗｹｯﾄ
319 2 1045909319
NUT U
ﾅｯﾄ
320
6
104590932001
COLLAR ｶﾗｰ
321 4 104590932101
CAP ｷｬｯﾌﾟ
322 2 101151803301
COTTER ｺｯﾀ
324
1
104590907206
PLATE(BASE) ﾌﾟﾚｰﾄ(ﾍﾞｰｽ)
326
4
1045909326
SPRING ﾊﾞﾈ
327 2 1045909042
PIN ﾋﾟﾝ
328 2 104590908503
LEVER ﾚﾊ
ﾞｰ
329
2
1045909087
PIN ﾋﾟﾝ
330
2
104590908603
LEVER ﾚﾊﾞｰ
334 2 104590933401
PIN ﾋﾟﾝ
335 2 104590902503
PULLEY ﾌ
ﾟｰﾘｰ
336
1
104590902604
PLATE ﾌﾟﾚｰﾄ
337
2
104590902702
SHAFT ｼｬﾌﾄ
338 2 104590908201
HOUSING ﾊｳｼ
ﾞﾝｸﾞ
339 2 104590902901
FLANGE ﾌﾗﾝｼ
ﾞ
340
2
104590903001
SPACER ｽﾍﾟｰｻ
341 2 104590908101
HOUSING ﾊｳｼﾞﾝｸﾞ
342 2 1045909032
FRANGE ﾌﾗﾝｼ
ﾞ
343
2
104590903404
FLANGE ﾌﾗﾝｼﾞ
344
2
1045909083
HOLDER ﾎﾙﾀﾞ
345 2 1045909037
LOCK NUT ﾅｯﾄ
346 4 1045909038
SET PIECE ｾｯﾄﾋ
ﾟｰｽ
347
2
104590903902
HOUSING ﾊｳｼﾞﾝｸﾞ
348
2
1045909040
FRANGE ﾌﾗﾝｼﾞ
349 2 104590908903
FLANGE ﾌﾗﾝｼﾞ
354 2 104590904701
PLATE ﾌﾟﾚｰﾄ
355
2
104590904802
PULLEY ﾌﾟｰﾘｰ
357
1
104590904904
SHAFT ｼｬﾌﾄ
358 4 104590905002
PIN ﾋ
ﾟﾝ
361 1 1045909073
BRACKET ﾌﾞﾗｹｯﾄ
362
2
104590905804
BALL SPLINE ﾎﾞｰﾙｽﾌﾟﾗｲﾝ
363 1 104590905205
DOG FOR SENSOR ｾﾝｻﾄﾞｸﾞ
367 2 104590900110
HOLDER ﾎﾙﾀ
ﾞ
378
2
1045909378
PAD ﾊﾟｯﾄﾞ
N 1
6
XVE25B6FP
HEX. SOCKET HEAD CAP BOLT ﾛｯｶｸｱﾅﾂｷﾎﾞﾙﾄ M2.5X6,STEEL,P.C
N 3 6 N506D3
STEEL BALL ｺｳｷｭｳ D3
N 6 2 XXE4C8FP
HEX. SOCKET SET SCREW ﾛｯｶｸｱﾅﾂｷﾄﾒﾈｼ
ﾞ
M4X8,STEEL,P.C
N 7
8
XWE3FP
ROUND PLAIN WASHER ｺｶﾞｶﾏﾙﾋﾗｻﾞｶﾞﾈ 3,STEEL,P.C
N10
1
N431KJT0600
FITTING ﾂｷﾞﾃ KJT06-00
N11 1 N431KJL06M5
FITTING ﾂｷﾞﾃ KJL06-M5
N12 1 N403XCHA-189
CYLINDER ｼﾘﾝﾀ
ﾞ
XCHA4-10D-5-D24SP-Z3
M46
F10459-09-300-AV-3
ﾍｯﾄﾞ駆動部(2)
HEAD DRIVING SECT.(2)
5
F10459-09-300-AV-4
M47
ｲﾗｽﾄ
No.
REF
No.
PART No.
PART NAME
REMARKS
Q'TY
5
ﾍｯﾄﾞ駆動部(2)
HEAD DRIVING SECT.(2)
部 品 名 品 番 個数
備 考
N13 1 N986MS515
PARALLEL PIN ﾍｲｺｳﾋ
ﾟﾝ
MS5-15
N14
1
N9866568
SPRING ﾊﾞﾈ 6568
N17
2
N6413513-452
BELT(TIMING) ﾍﾞﾙﾄ(ﾀｲﾐﾝｸﾞ) 351-3GT-9 B939N1
N19 2 XUC2FP
RETAINING RING E-TYPE E
ｶﾞﾀﾄﾒﾜ
2,STEEL,P.C
N20 2 N9865534
SPRING ﾊ
ﾞﾈ
5534
N21
4
XVEN4M15FPZ
HEX. SOCKET BUTTON HEAD BOL ﾛｯｶｸｱﾅﾂｷﾎﾞﾀﾝﾎﾞﾙﾄ M4X15,STEEL,P.C
N25
1
N310P9141
SENSOR ｾﾝｻ P914-1
N26 2 XLCNF696ZZ
BALL BEARING ﾎﾞ
ｰﾙﾍﾞｱﾘﾝｸﾞ
F696ZZ
N27 1 XUB6FP
RETAINING RING C-TYPE,SHAFT C ｶﾞﾀｼ
ﾞｸﾖｳﾄﾒﾜ
6,STEEL,P.C
N28
4
XLCN6804ZZ
BEARING ﾎﾞｰﾙﾍﾞｱﾘﾝｸﾞ 6804ZZ
N29 2 XUB20FP
RETAINING RING C-TYPE C ｶﾞﾀｼﾞｸﾖｳﾄﾒﾜ 20,STEEL,P.C
N30 16 XXE3C4FP
HEX. SOCKET SET SCREW ﾛｯｶｸｱﾅﾂｷﾄﾒﾈｼ
ﾞ
M3X4,STEEL,P.C
N31
2
N624CSF1-033
REDUCTION GEAR ｹﾞﾝｿｸｷ CSF-14-50-2A-R-SP
N32
2
XUB25FP
RETAINING RING C-TYPE, SHAF C ｶﾞﾀｼﾞｸﾖｳﾄﾒﾜ 25,STEEL,P.C
N33 4 XLCN6805ZZ
BALL BEARING ﾎﾞｰﾙﾍﾞｱﾘﾝｸﾞ 6805ZZ
N34 8 XVE3B8VW
HEX. SOCKET HEAD CAP BOLT ﾛｯｶｸｱﾅﾂｷﾎ
ﾞﾙﾄ
M3X8-A2-70
N35
2
N608N608-002
MOTOR ﾓｰﾀ N608X0379C
N36
2
XLCN6904ZZCM
BALL BEARING ﾎﾞｰﾙﾍﾞｱﾘﾝｸﾞ 6904ZZCM
N40 2 N903MSS9-017
MEASURING UNIT ﾒｼﾞｬｰﾘﾝｸﾞﾕﾆｯﾄ MSS976R-903
N48 6 N55597LC-019
PACKING ﾊ
ﾟｯｷﾝ
97LC006A4
N49
4
N554C00502A
O-RING O ﾘﾝｸﾞ CO0502A
N50
8
N431M5HL6
FITTING ﾂｷﾞﾃ M-5HL-6
N51 1 XSS2+4FY
FLUSH HEAD SCREW ｻﾗｺﾈｼ
ﾞ
M2X4,+,STEEL,Z.C.T
N56 2 N431PFM6M
PLUG ﾌ
ﾟﾗｸﾞ
PF-M6M
N60
4
N903MD20A
DETECTOR ﾃﾞﾃｸﾀ MD20A
S 1 1 304590850507
MOTOR SET ﾓｰﾀｾｯﾄ
S 2 1 304590850606
MOTOR SET ﾓｰﾀｾｯﾄ
S 3
2
10459S0017
MAGNE SCALE SENSOR SET ﾏｸﾞﾈｽｹｰﾙｾﾝｻｰｾｯﾄ
M48
F10459-09-300-AV-4
