MODEL GXH-1 1012-004 123 Key No. P AR T No. P AR T NAME Q’ty REMARKS New Code NOTE EB-2 4Unit/1Machine 101 6301255200 PIPE 2 803EB-210-001 216N0402 102 6301272153 COVER 1 803EB-210-102 21 1A8688 105 6301333687 BRACKET 1 …
MODEL GXH-1
0409-002
122

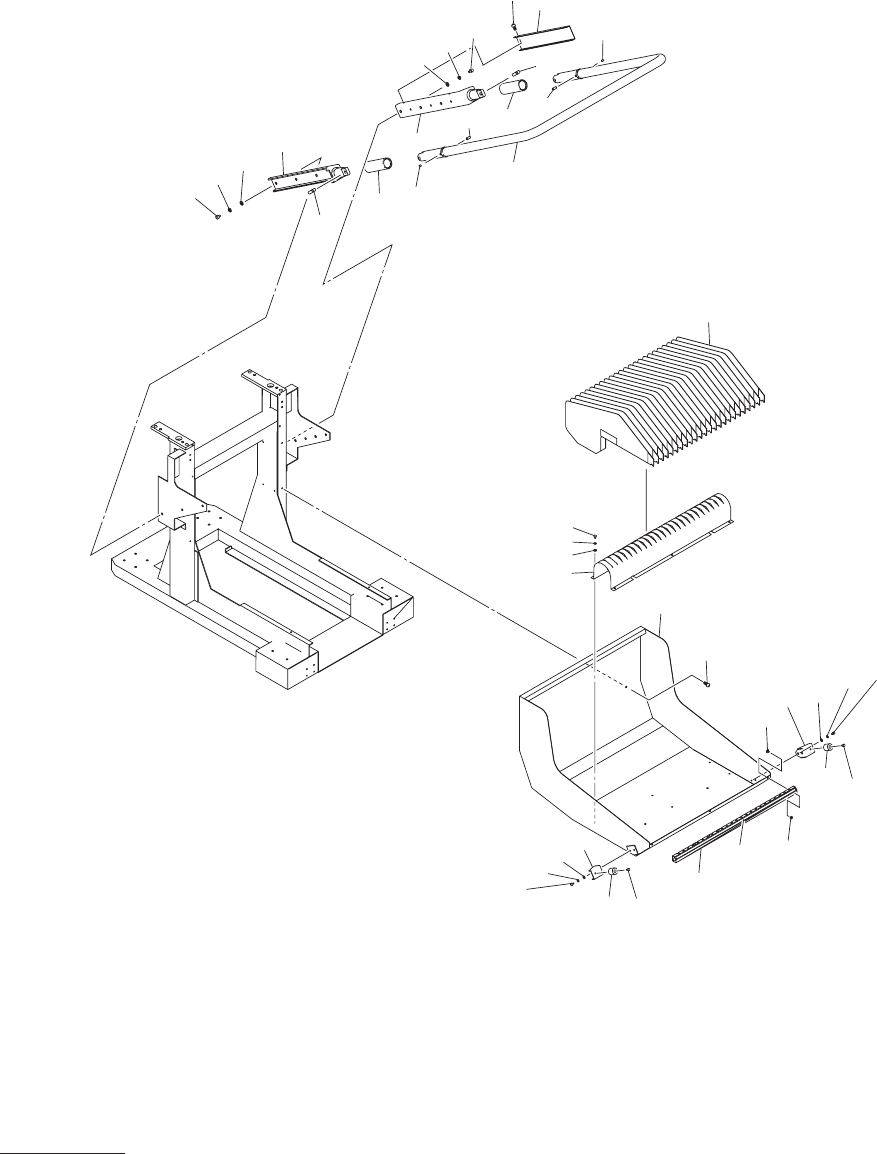

フィーダカート部
FEEDER CART SECTION
Fig. EB-2
リールホルダ、ハンドル
Reel Holder,Handle
162
167
105
167
162
153
154
102
109
101
110
110
155
112
149
155
101
109
151
161
166
138
136
154
133
154
108
166
161
151
106
152
156
140
152
106
108
166
153
161
151
139
MODEL GXH-1
1012-004
123
Key No. PART No. PART NAME Q’ty REMARKS New Code
NOTE
EB-2
4Unit/1Machine
101 6301255200 PIPE 2 803EB-210-001 216N0402
102 6301272153 COVER 1 803EB-210-102 211A8688
105 6301333687
BRACKET 1 803EB-210-005 211F9274
106 6301271514
SHOCK ABSORBER 2 803EB-210-106 222S0058
108 6301273280 BRACKET
2 803EB-210-108 211F8430
109 6301259253
PIN,HINGE 2 803EB-210-009 216D0442
110 6301256894
PLUNGER 2 803EB-210-010 226G0051
112 6301274447
HANDLE 1 803EB-210-002 226C0198
133 6301277936 BOX 1
803EB-210-033 211B0980
136 6301277981
PLATE 24 803EB-210-036 211D9681
138 6301264370
GUIDE 1 803EB-210-038 212A2055
139 6301272764 GUIDE 1
803EB-210-039 212A2068
140 6301260068 NAME PLA
TE,INDEX 1 803EB-210-040 6P460124
149 6301333694 BRACKET
1 803EB-210-049 211F9275
151 6300007602
BOLT,HEX-SCT 10 M4X6 221A0015
152 6300007619 BOL
T,HEX-SCT 2 M4X8 221A0016
153 6300007855 BOL
T,HEX-SCT 6 M6X8 221A0040
154 411051
1708 SCR TRS 4X6 11 M4X6 TRS 221E0532
155
6300008975 SET SCREW 2 M6X6 SET 221C0010
156 41
11410307 NUT HEX 4 3 M4 221F0082
161 411
1412905 WASHER SPR 4 12 SW4 221H0284
162 411
1413001 WASHER SPR 6 6 SW6 221H0289
166 411
1414008 WASHER V 4X9X0.8 12 FW4 221H0315
167 411
1414305 WASHER V 6X12.5X1.6 6 FW6 221H0320
