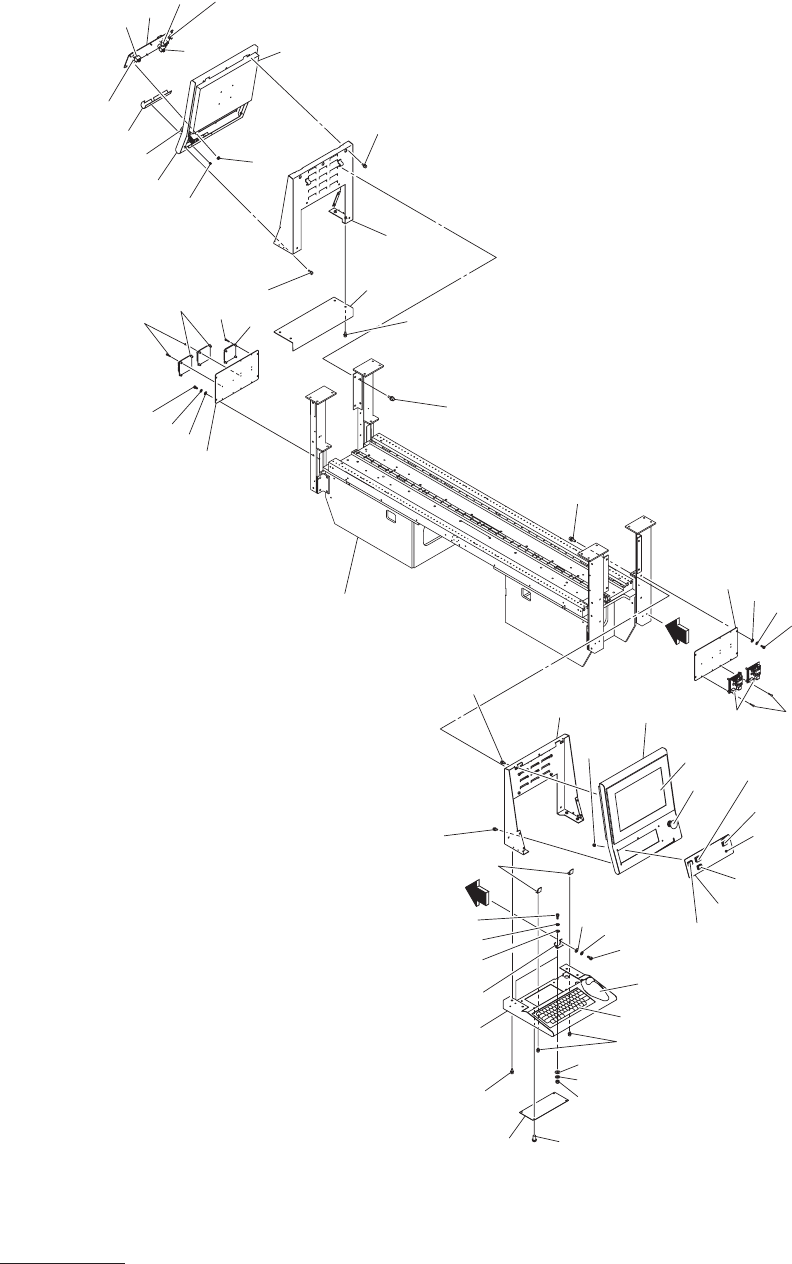

MODEL GXH-1 0503-003 142 カバー部 COVER SECTION Fig. G-5 パネル Panel 457 474 . 483 . 488 474 . 483 . 488 472 473 . 483 . 488 451 . 452 . 453 454 . 455 475 . 482 . 487 474 . 483 . 488 401 402 460 459 458 456 408 405 406 404 463…
MODEL GXH-1
1012-005
141
Key No. PART No. PART NAME Q’ty REMARKS New Code
NOTE
G-4
301 6301299822 FRAME 1 803G--210-001 210B3750
302 6301255293 COVER 1 803G--210-002 211A8555
303 6301255309
COVER 1 803G--210-003 211A8556
304 6301268965
FRAME 2 803G--210-004 210B3650
305 6301349190 ST
AY 2 803G--210-005 211J1273
306 6301349206
STAY 2 803G--210-006 211J1274
307 6301360126
COVER 2 803G--210-007 211A9663
308 6301360133
COVER 2 803G--210-008 211A9664
309 6301255569
BRACKET 4 803G--210-009 211F8184
311
6301255330 COVER 1 803G--210-011 211A8559
312
6301255347 COVER 1 803G--210-012 211A8560
313 6301273495
BOLT 2 803G--210-013 221E0295
339 6301259109 BRACKET
4 803G--210-039 211F8260
351 6300002713
SWITCH,BUTTON 4 -S111 803G--210-151 4S1B0032
352
6300000382 ACCESSORY,SW 4 803G--210-152 23H20003
354 6301251752 PILOT
LAMP 1 H1 803G--210-154 4T3A0205
356 6301231341
PILOT LAMP 4 803G--210-156 4T3A0201
361 6300007732 BOL
T,HEX-SCT 6 M5X8 221A0028
362 6300007756 BOL
T,HEX-SCT 14 M5X12 221A0030
364 6300007770 BOL
T,HEX-SCT 8 M5X20 221A0032
365 6300007886 BOL
T,HEX-SCT 8 M6X16 221A0043
366 411
1410307 NUT HEX 4 12 M4 221F0082
371 411
1412905 WASHER SPR 4 12 SW4 221H0284
372 411
1416705 WASHER SPR 5 28 SW5 221H0287
373 411
1413001 WASHER SPR 6 8 SW6 221H0289
376 411
1414008 WASHER V 4X9X0.8 12 FW4 221H0315
377 411
1414107 WASHER V 5X10X1 28 FW5 221H0318
378 411
1414305 WASHER V 6X12.5X1.6 8 FW6 221H0320
MODEL GXH-1
0503-003
142
カバー部
COVER SECTION
Fig. G-5
パネル
Panel
457
474
.
483
.
488
474
.
483
.
488
472
473
.
483
.
488
451
.
452
.
453
454
.
455
475
.
482
.
487
474
.
483
.
488
401
402
460
459
458
456
408
405
406
404
463
462
412
487
482
480
480
482
487
461
476
411
487
482
480
461
476
475
.
482
.
487
471
.
481
.
486
474
.
483
.
488
474
.
483
.
488
407
401
409
402
408
459
458
457
454
.
455
451
.
452
.
453
456
460
474
.
483
.
488
411
487
482
480
487
482
475
474
.
483
.
488
474
.
483
.
488
A
A
See Fig.B-1
Key No.1
467
476
MODEL GXH-1
1012-005
143
Key No. PART No. PART NAME Q’ty REMARKS New Code
NOTE
G-5
401 6301320717 BOX 2 803G--210-301 211B1017
402 6301270357 BOX 2 803G--210-302 211B0973
404 6301321264
BOX 1 803G--210-304 211B1018
405 6301255767
BRACKET 2 803G--210-305 211F8187
406 6301255798
PLATE 1 803G--210-306 211D9464
407 6301255781
BRACKET 1 803G--210-307 211F8188
408 6301255774
PANEL 2 803G--210-308 211C1170
409
6301274645 COVER 1 803G--210-309 211A8720
411
6301320670 PLATE 2 803G--210-501 211DA056
412 6301320700
HINGE 2 803G--210-502 226F0154
451 6300334609 SWITCH,BUTT
ON 2 -S101 803G--210-351 4S1B0085
452 6300334586
DISPLAY ELEMENT 2 803G--210-352 4T400003
453 6300334593 ACCESSOR
Y,SW 2 803G--210-353 23H20029
454 6300002713 SWITCH,BUTT
ON 2 -S102 803G--210-354 4S1B0032
455 6300000382
ACCESSORY,SW 2 803G--210-355 23H20003
456 6300002515 SWITCH,BUTT
ON 2 -S103 803G--210-356 4S1B0012
457 6300002744
SWITCH,BUTTON 2 -S104 803G--210-357 4S1B0035
458 4070354704
LED SLP-721F 2 -H104B 803G--210-358 4T3A0246
459 6301241616
SWITCH,BUTTON 2 -S105 803G--210-359 4S1B0151
460 6301241753
UNIT,DISPLAY 2 -N74 803G--210-360 4U210105
461 6301235745
P.C.B,MOUNT 4 -U01 803G--210-061 4B111451
462
6301235837 UNIT,I/O 1 N75 803G--210-362 4U250152
463 6301235844
UNIT,I/O 1 N76 803G--210-363 4U250153
467 6301235745
P.C.B,MOUNT 1 U11 803D--210-062 4B111451
471 6300007497 BOLT,HEX-SCT 2 M3X4 221A0004
472 4110512804
SCR TRS 4X8 4 M4X8 TRS 221A0016
473 6300007732
BOLT,HEX-SCT 2 M5X8 221A0028
474 6300007756 BOL
T,HEX-SCT 30 M5X12 221A0030
475 411
1410307 NUT HEX 4 16 M4 221E0533
476 411
1130700 SCR PAN 3X16 20 M3X16 PAN 221E0491
480 6300007619
BOLT,HEX-SCT 16 M4X8 221A0016
481 411
1412806 WASHER SPR 3 2 SW3 221H0281
482 411
1412905 WASHER SPR 4 32 SW4 221H0284
483 411
1416705 WASHER SPR 5 32 SW5 221H0287
486 411
1413902 WASHER V 3X7X0.5 2 FW3 221H0312
487 411
1414008 WASHER V 4X9X0.8 32 FW4 221H0315
488 411
1414107 WASHER V 5X10X1 32 FW5 221H0318
