MODEL GXH-1 0409-002 178 架台下 XY サーボ部 UNDERFRAME XY SER VO SECTION Fig. BF-1 XY サーボ部 XY Servo Section 95 60 62 97 98 92 51 55 54 76 75 74 90 . 93 91 . 93 95 76 75 74 76 75 74
MODEL GXH-1
0503-003
177

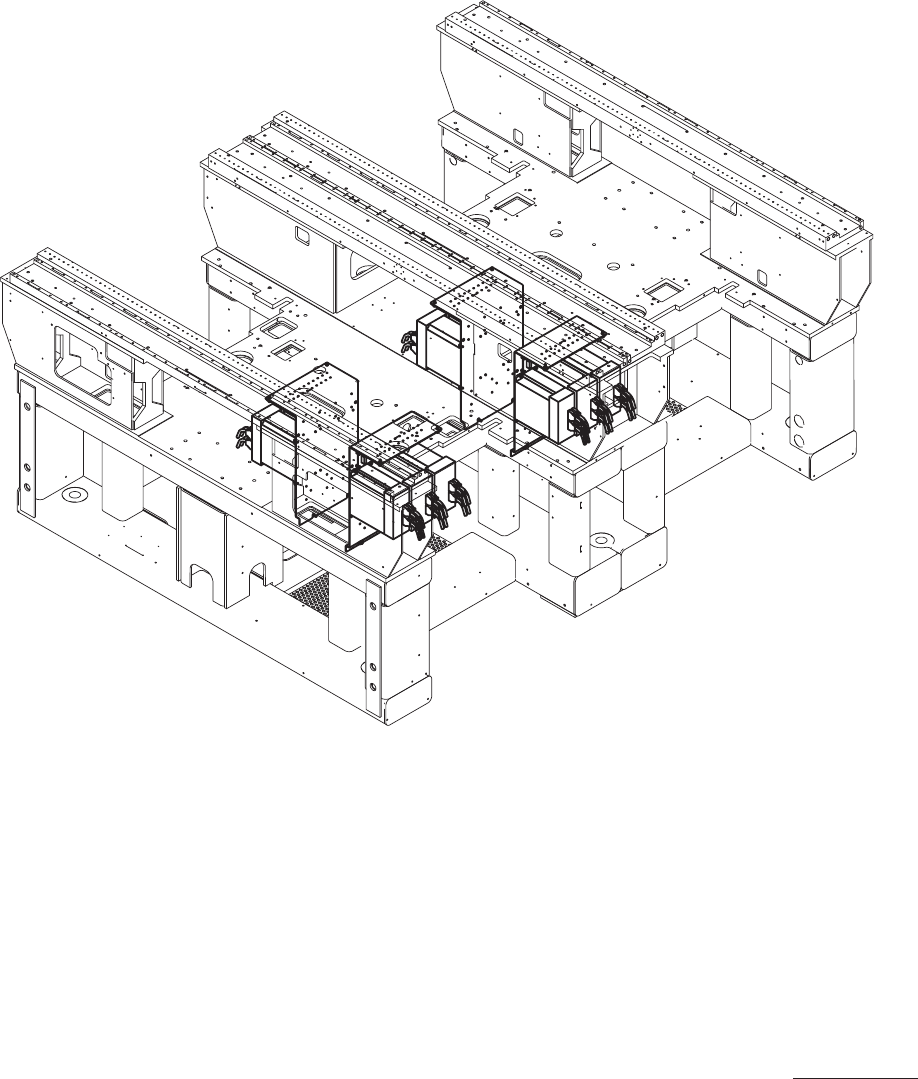

Fig. BF
架台下
XY
サーボ部
UNDERFRAME
XY SERVO SECTION
MODEL GXH-1
0409-002
178
架台下
XY
サーボ部
UNDERFRAME XY SERVO SECTION
Fig. BF-1 XY
サーボ部
XY Servo Section
95
60
62
97
98
92
51
55
54
76
75
74
90
.
93
91
.
93
95
76
75
74
76
75
74
MODEL GXH-1
1012-004
179
Key No. PART No. PART NAME Q’ty REMARKS New Code
NOTE
BF-1
51 6301292731 BRACKET 4 803BF-210-051 211F8665
54 6301287829 UNIT,DRIVER 4 -A21 803B--210-038 4U240446
55 6301287836
UNIT,DRIVER 8 -A22,-A23 803B--210-039 4U240447
60 6301242491
P.C.B,MOUNT 4 -U24 803BF-210-060 4B111463
62
6301027487 SPACER 32 803BF-210-162 211E0754
74 41
10030001 SCR PAN 4X12 44 M4X12 PAN 221E0501
75 41
10081706 WASHER SPR 4 44 SW4 F 221H0283
76 411
1192104 WASHER V 4X9X0.8 44 FW4 F 221H0314
90 6300007763 BOL
T,HEX-SCT 8 M5X16 221A0031
91 6300007770 BOL
T,HEX-SCT 8 M5X20 221A0032
92 4110418908
SCR PAN 3X6 16 M3X6 PAN 221E0497
93 41
11416705 WASHER SPR 5 16 SW5 221H0287
95 6300010220 W
ASHER 16 BW5 221H0005
97 411
1191909 WASHER V 3X7X0.5 16 FW3 F 221H0311
98 41
10864408 WASHER SPR 3 16 SW3 F 221H0280
