MODEL GXH-1 0503-003 234 制御 PC 部 CONTROL PC SECTION Fig. FB-1 CPU ２ CPU 2 62 67 64 65 63 51 73 57 61 69 72 71 . 70 . 56 62 66 64 65 63 51 73 57 61 69 72 71 . 70 . 56
MODEL GXH-1
0503-003
233

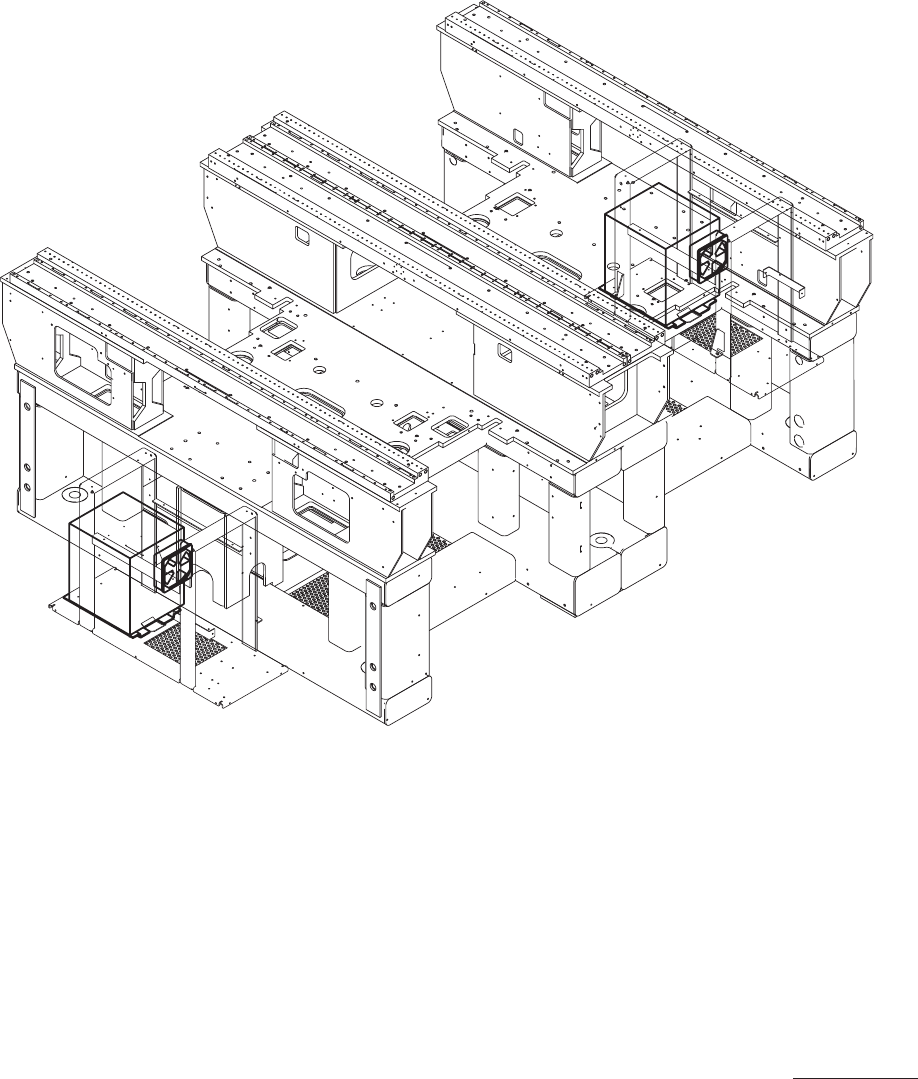

Fig. FB
制御
PC
部
CONTROL PC SECTION
MODEL GXH-1
0503-003
234
制御
PC
部
CONTROL PC SECTION
Fig. FB-1 CPU
２
CPU 2
62
67
64
65
63
51
73
57
61
69
72
71
.
70
.
56
62
66
64
65
63
51
73
57
61
69
72
71
.
70
.
56
MODEL GXH-1
1012-004
235
Key No. PART No. PART NAME Q’ty REMARKS New Code
NOTE
FB-1
51 6301240374 BRACKET 2 803FB-210-051 211F8045
56 6301251127 P.C.B,MOUNT 2 -U86 803FB-210-161 4B111475
57
6301231587 MECH PARTS(RUBBER DAMPER) 8 803FB-210-162 226J1830
61 6301270487 UNIT,POWER 2
803FB-210-151 4U200260
62 6301244426 P
.C.B,MOUNT 2 -U81 803FB-210-152 4B111470
63
6301231273 P.C.B,MOUNT 2 803FB-210-153 4B111445
64
6301230115 P.C.B,MOUNT 6 -U82(L), -U82(R), -U83(L),
-U83(R), -U84(L), -U84(R)
803FB-210-154 4B111437
65
6301231280 P.C.B,MOUNT 2 -U85 803FB-210-155 4B111446
66
6301312316 ASSY,UNIT,I/O 1 0U250010
67 6301312323 ASSY
,UNIT,I/O 1 0U250011
69 6301256498
CORD(#KTF-049-01) 2 803FB-210-159 4W202793
70 6300007756 BOL
T,HEX-SCT 4 M5X12 221A0030
71 411
1416705 WASHER SPR 5 4 SW5 221H0289
72 411
1414107 WASHER V 5X10X1 4 FW5 221H0320
73 411
1410505 NUT HEX 5 8 M5 221F0085
