MODEL GXH-1 1012-004 235 Key No. P AR T No. P AR T NAME Q’ty REMARKS New Code NOTE FB-1 51 6301240374 BRACKET 2 803FB-210-051 21 1F8045 56 6301251 127 P .C.B,MOUNT 2 -U86 803FB-210-161 4B1 1 1475 57 6301231587 MECH P ART…
MODEL GXH-1
0503-003
234
制御
PC
部

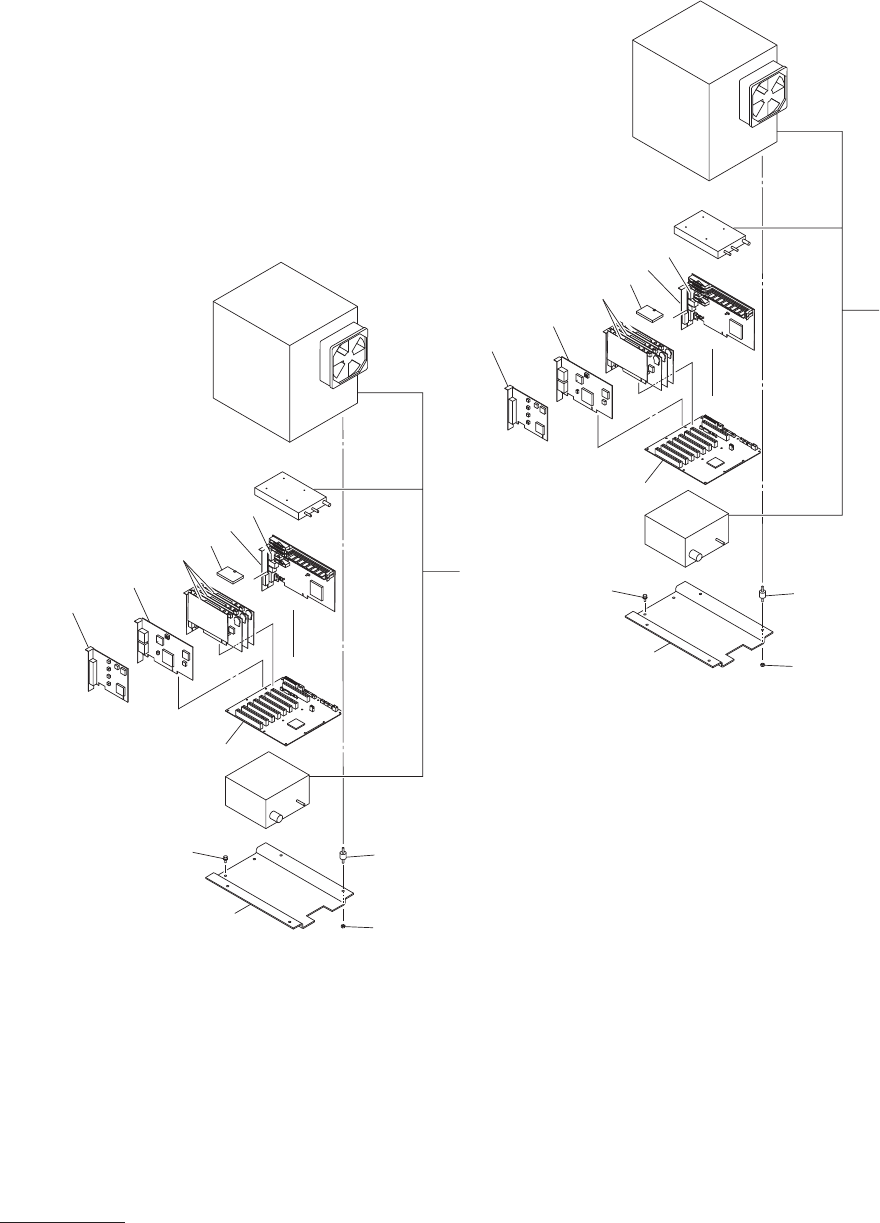

CONTROL PC SECTION
Fig. FB-1 CPU
２
CPU 2
62
67
64
65
63
51
73
57
61
69
72
71
.
70
.
56
62
66
64
65
63
51
73
57
61
69
72
71
.
70
.
56
MODEL GXH-1
1012-004
235
Key No. PART No. PART NAME Q’ty REMARKS New Code
NOTE
FB-1
51 6301240374 BRACKET 2 803FB-210-051 211F8045
56 6301251127 P.C.B,MOUNT 2 -U86 803FB-210-161 4B111475
57
6301231587 MECH PARTS(RUBBER DAMPER) 8 803FB-210-162 226J1830
61 6301270487 UNIT,POWER 2
803FB-210-151 4U200260
62 6301244426 P
.C.B,MOUNT 2 -U81 803FB-210-152 4B111470
63
6301231273 P.C.B,MOUNT 2 803FB-210-153 4B111445
64
6301230115 P.C.B,MOUNT 6 -U82(L), -U82(R), -U83(L),
-U83(R), -U84(L), -U84(R)
803FB-210-154 4B111437
65
6301231280 P.C.B,MOUNT 2 -U85 803FB-210-155 4B111446
66
6301312316 ASSY,UNIT,I/O 1 0U250010
67 6301312323 ASSY
,UNIT,I/O 1 0U250011
69 6301256498
CORD(#KTF-049-01) 2 803FB-210-159 4W202793
70 6300007756 BOL
T,HEX-SCT 4 M5X12 221A0030
71 411
1416705 WASHER SPR 5 4 SW5 221H0289
72 411
1414107 WASHER V 5X10X1 4 FW5 221H0320
73 411
1410505 NUT HEX 5 8 M5 221F0085
MODEL GXH-1
0909-003
236
制御
PC
部

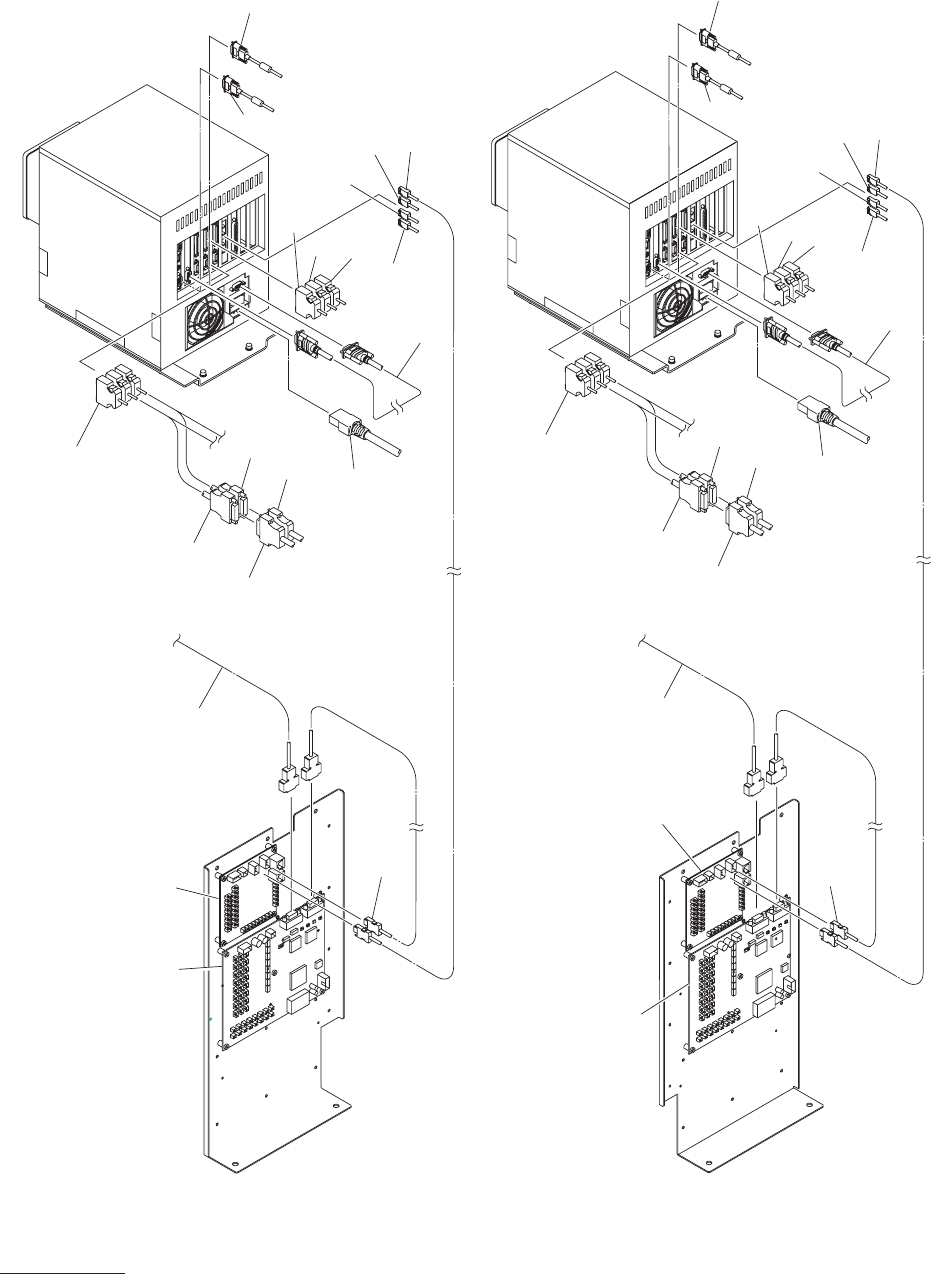

CONTROL PC SECTION
Fig. FB-2
ケーブル
Cable
157
161
162
163
157
171
172
173
180
185
188
189
158
174
167
164
166
180
185
189
158
188
168
169
177
176
178
179
196
197
191
192
182
181
See Fig.BL-3
Key No.260
See Fig.BL-3
Key No.261
182
181
See Fig.BR-3
Key No.260
See Fig.BR-3
Key No.261
