MODEL GXH-1 0409-002 242 認識 PC 部 RECOGNITION PC SECTION Fig. FC-3 ケーブル Cable 261 262 261 262 277 276 271 272 273 274 275 279 272 273 274 275 271 259 278
MODEL GXH-1
1012-005
241
Key No. PART No. PART NAME Q’ty REMARKS New Code
NOTE
FC-1
51 6301237428 BRACKET 1 803FC-210-051 211F8025
52 6301237435 BRACKET 2 803FC-210-052 211F8026
53 6301245102
P.C.B,MOUNT 2 U92,U93 803FC-210-153 4B111471
54
6301270340 P.C.B,MOUNT 1 U94 803FC-210-154 4B111484
56
6301249667 EQUIPMENT 1 U91 803FC-210-156 4U260244
57 6301246604
P.C.B,MOUNT 1 U95 803FC-210-157 4B111473
58
6300699616 ACCESSORY,P.C.B 6 803FC-210-158 23L10045
60 6301312309 ASSY
,UNIT,I/O 1 0U250009
62 6301235493 MECH P
ARTS(RUBBER DAMPER) 4 803FC-210-152 226J1834
71 6300007756 BOLT
,HEX-SCT 4 M5X12 221A0030
73 4110418908
SCR PAN 3X6 8 M3X6 PAN 221E0497
74 41
11131400 SCR PAN 4X6 10 M4X6 PAN 221E0509
75 41
11410505 NUT HEX 5 4 M5 221F0085
76 4110864408
WASHER SPR 3 8 SW3 F 221H0280
77 4110081706
WASHER SPR 4 10 SW4 F 221H0283
78 411
1416705 WASHER SPR 5 8 SW5 221H0289
81 411
1191909 WASHER V 3X7X0.5 16 FW3 F 221H0311
82 41
11192104 WASHER V 4X9X0.8 10 FW4 F 221H0314
83 411
1414107 WASHER V 5X10X1 4 FW5 221H0320
84 6300010220 W
ASHER 4 BW5 221H0005
MODEL GXH-1
0409-002
242
認識
PC
部

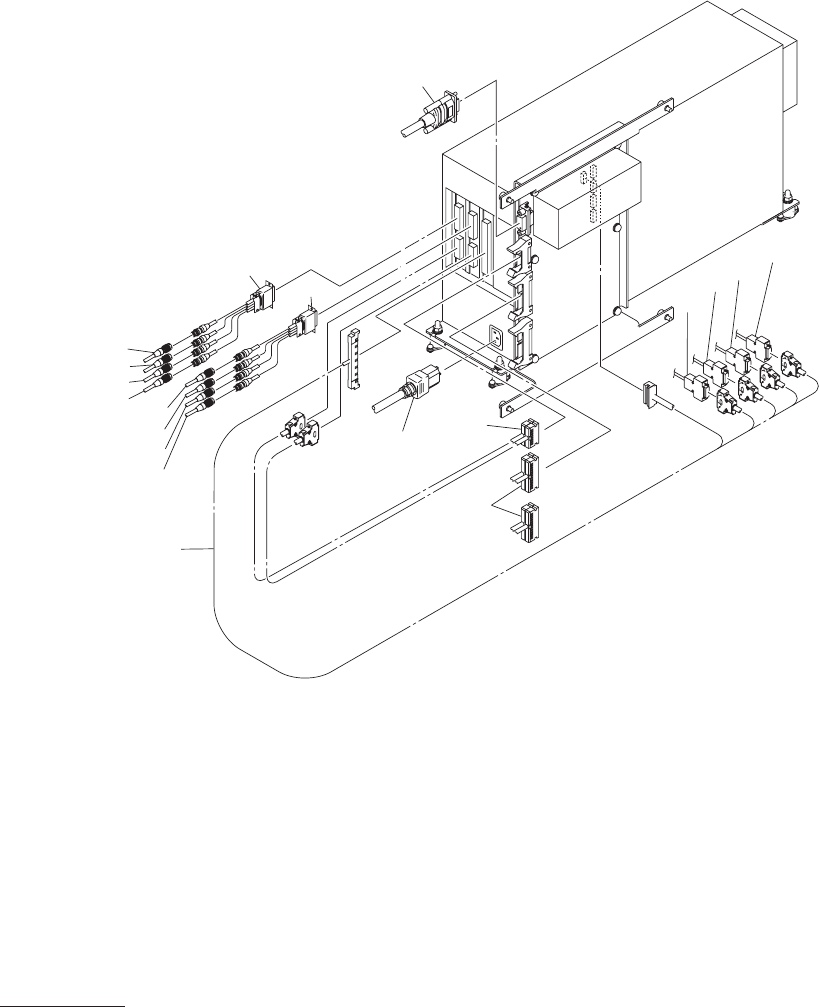

RECOGNITION PC SECTION
Fig. FC-3
ケーブル
Cable
261
262
261
262
277
276
271
272
273
274
275
279
272
273
274
275
271
259
278
MODEL GXH-1
1012-004
243
Key No. PART No. PART NAME Q’ty REMARKS New Code
NOTE
FC-3
259 6301081861 CORD 1 803FC-210-159 4W202121
261 6301250458 CORD 2 803FC-210-161 4W202769
262 6301250472 CORD 2
803FC-210-162 4W202770
271 6301245713 CORD 2
803FC-210-351 4W202731
272 6301268637 CORD 2
803FC-210-352 4W202804
273 6301245737 CORD 2
803FC-210-353 4W202733
274 6301268644 CORD 2
803FC-210-354 4W202805
275 6301246420 CORD 2
803FC-210-355 4W202756
276 6301269061 CORD 1
803FC-210-356 4W202807
277 6301269078 CORD 4
803FC-210-357 4W202808
278 6301246475 CORD 2
803FC-210-358 4W202761
279 6301237510 CORD 1
803FC-210-359 4W202692
