MODEL GXH-1 1012-005 245 Key No. P AR T No. P AR T NAME Q’ty REMARKS New Code NOTE SA-1 1 6301274454 PLA TE 2 803SA-210-001 21 1D9639 2 6301266015 ROD 20 803SA-210-002 216C0722 4 6301274393 NOZZLE(HA09) 2 803SA-210-004 H…
MODEL GXH-1
0503-003
244
標準付属品
STANDARD ACCESSORIES

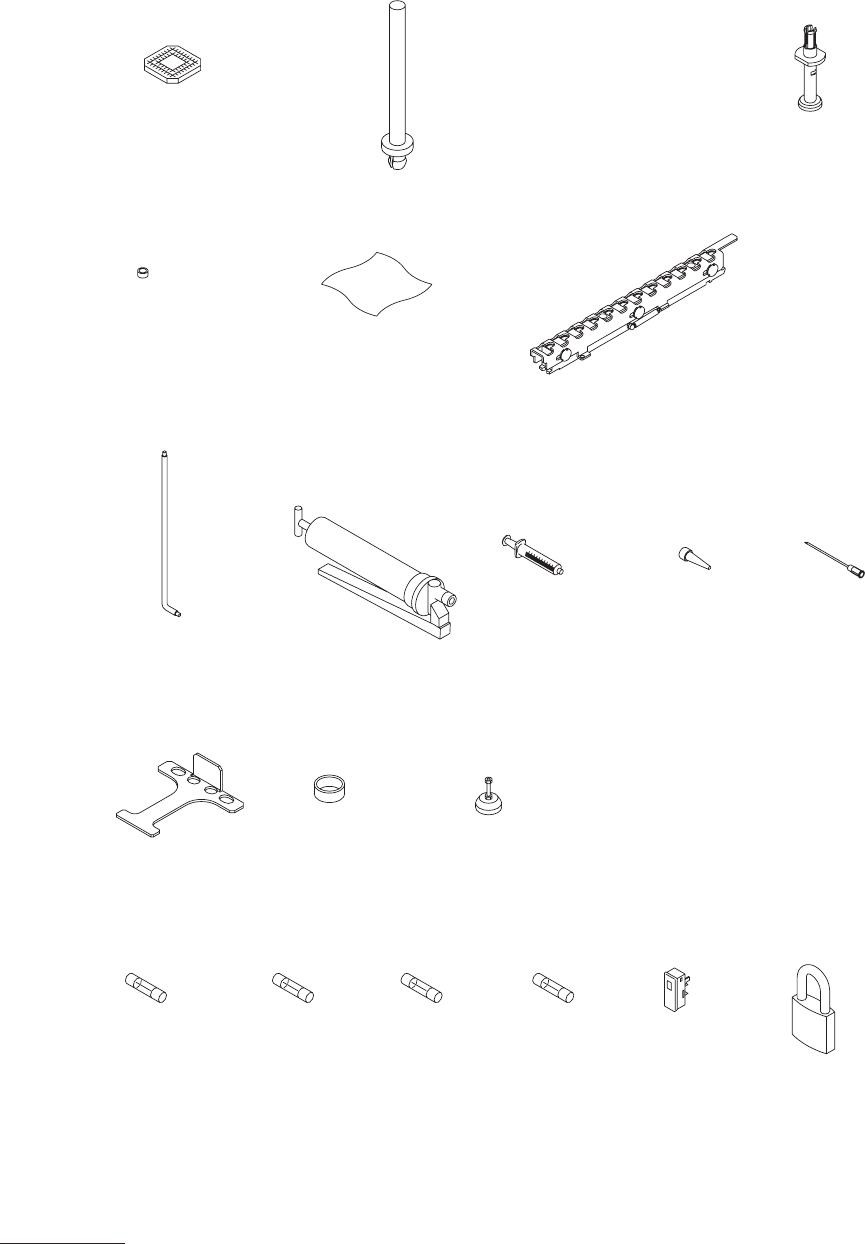

Fig. SA-1
治具及びスペアパーツ
Jig and Spare Parts
6
7
15
52
53 54
51 5655
5
1 2 4
16
21 22
20
17 18 19
MODEL GXH-1
1012-005
245
Key No. PART No. PART NAME Q’ty REMARKS New Code
NOTE
SA-1
1 6301274454 PLATE 2 803SA-210-001 211D9639
2 6301266015 ROD 20 803SA-210-002 216C0722
4 6301274393 NOZZLE(HA09) 2
803SA-210-004 HA09----
5 6301269252 AIR LINE EQPT
288 803SA-210-005 225B0508
6 6301094243 MECH P
ARTS 5 803SA-210-006 226J1560
7 6301275246 ASSY
,BLOCK 4 803SA-210-007 011G0036
15 6301332529
ROD 1 803SA-210-015 216C0787
16 6300622577 T
OOL,HAND(HAND GREESEGUN) 1 803SA-210-016 228A0022
17 6301333793 TOOL,HAND(SYRINGE) 4
803SA-210-017 228A0171
18 6300622607 NOZZLE 2
803SA-210-018 216M0451
19 6300622621 NOZZLE 2
803SA-210-019 216M0453
20 6301373669 BRACKET
1 803SA-210-020 211F9768
21 6301376028
SEAL 12 803SA-210-021 226A0256
22 6301381541 ASSY
,BLOCK(JIG) 1 803SA-210-022 011G0041
51 4230252109
FUSE 250V 6.3A 1 803SA-210-151 4S300023
52 4230228302 FUSE 250V 5A
1 803SA-210-152 4S300024
53 4230228005 FUSE 250V 1A
1 803SA-210-153 4V320007
54 4230228104 FUSE 250V 2A
1 803SA-210-154 4S300025
55 6301231303 FUSE,SPECIAL
1 803SA-210-155 4S300006
56 6300619737 MECH P
ARTS (PADLOCK) 2 803SA-210-156 226J0574
MODEL GXH-1
0503-003
246
標準付属品
STANDARD ACCESSORIES

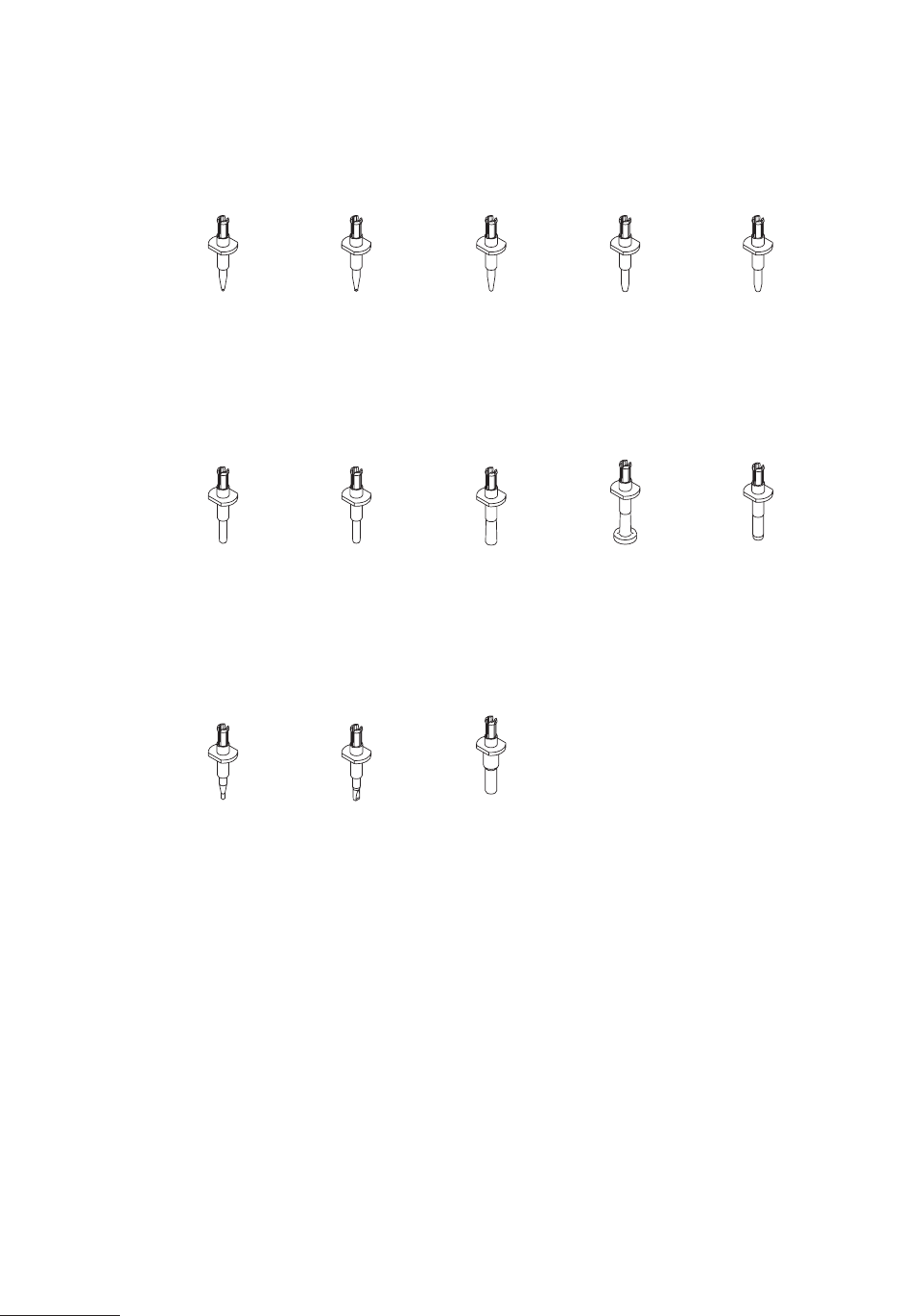

Fig. SA-2
選択部品
Optional Parts
Fig.ZS-2
4797L
TCM-X300
TCM-X200
4797A
101
吸着ノズル
VACUUM NOZZLE (Work Corresponding)
102 103 104 105
109
113
110
111 112
106 107 108
