MODEL GXH-1 1012-003 53 Key No. P AR T No. P AR T NAME Q’ty REMARKS New Code NOTE DC-4 2Unit/1Machine 301 6301369648 DISK 2 803DC-210-071 213D1218 305 6301099491 BEARING,RADIAL 2 803DC-210-205 222D0376 306 6301354279 BEA…
MODEL GXH-1
0503-001
52
カッタ部
A,D CUTTER SECTION A,D

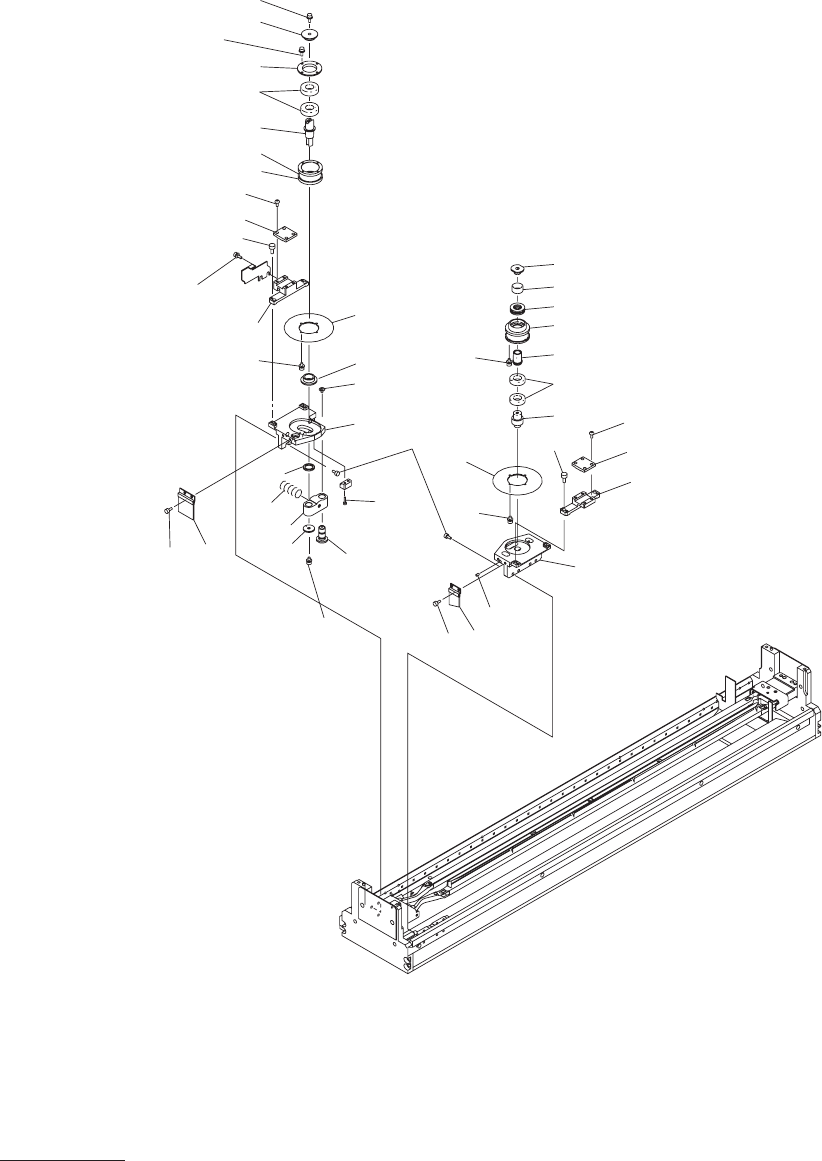

Fig. DC-4
カッタ部
Cutter Section
362
355
.
321
354
353
357
318
333
337
316
346
310
354
358
345
351
301
367
362
.
355
.
312
331
324
335
367
362
.
355
.
366
361
.
352
.
336
307
340
330
348
322
359
354
301
351
311
313
331
357
324
338
305
347
306
319
334
339
325
MODEL GXH-1
1012-003
53
Key No. PART No. PART NAME Q’ty REMARKS New Code
NOTE
DC-4 2Unit/1Machine
301 6301369648 DISK 2 803DC-210-071 213D1218
305 6301099491 BEARING,RADIAL 2 803DC-210-205 222D0376
306 6301354279 BEARING,THRUST
1 803DC-210-206 222E0017
307 6301369440 BEARING,RADIAL(ANGYURA)
2 803DC-210-207 222D0412
310 6301369716 BASE 1 803DC-210-050
210A2376
311 6301369747
BASE 1 803DC-210-051 210A2379
312 6301369723 BASE 1
803DC-210-052 210A2377
313 6301369730 BASE 1
803DC-210-053 210A2378
316 6301366678 LEVER 1
803DC-210-066 216S2815
318 6301359762 SPRING,COMP
1 803DC-210-058 222M1373
319 6301367088 SPRING,COMP
1 803DC-210-059 222M1378
321 6301364599 COVER 1
803DC-210-221 211A9719
322 6301365527
COVER 1 803DC-210-222 211A9733
324 6300690644
BOLT 8 803DC-210-224 221E0129
325 6301288901 MACHINE SCREW 4
803DC-210-225 221D0172
330 6301376028 SEAL
1 803DC-210-230 226A0256
331 6301262635 BLOCK 2
803DC-210-031 211G3470
333 6300010206
WASHER 1 803DC-210-233 221H0003
334 6301365084 HOLDER 1
803DC-210-034 216B1514
335 6301369808 HOLDER 1
803DC-210-035 216B1519
336 6301365565 HOLDER 1
803DC-210-036 216B1516
337 6301364674 SHAFT
1 803DC-210-037 213A1197
338 6301365060
SHAFT 1 803DC-210-038 213A1200
339 6301365077 SHAFT
1 803DC-210-039 213A1201
340 6301365541 SHAFT
1 803DC-210-040 213A1205
345 6301364568 GUIDE 1
803DC-210-045 212A2212
346 6301364575 GUIDE 1
803DC-210-046 212A2213
347 6301369990 GUIDE 1
803DC-210-047 212A2225
348 6301370002 GUIDE 1
803DC-210-048 212A2226
351 6300083507 BOL
T,HEX-SCT 8 M2X4 221A0121
352 6300083507 BOL
T,HEX-SCT 4 M2X4 221A0121
353 6300876659 BOL
T,HEX-SCT 2 M2X10 221A0245
354 6300007503 BOL
T,HEX-SCT 20 M3X6 221A0005
355 6300007503 BOL
T,HEX-SCT 2 M3X6 221A0005
356 6300007510 BOL
T,HEX-SCT 2 M3X8 221A0006
357 6300007619 BOL
T,HEX-SCT 4 M4X8 221A0016
358 411
1407901 SCR TRS 3X4 1 M3X4 TRS 221E0528
359 6300008883
SET SCREW 1 M3X4 SET 221C0001
361 41
11412608 WASHER SPR 2 4 SW2 221H0277
362 411
1412806 WASHER SPR 3 4 SW3 221H0281
366 411
1416903 WASHER V 2X5X0.3 4 FW2 221H0308
367 411
1413902 WASHER V 3X7X0.5 3 FW3 221H0312
