MODEL GXH-1 1012-003 57 Key No. P AR T No. P AR T NAME Q’ty REMARKS New Code NOTE 2Unit/1Machine 1 6301370385 COVER 1 803DD-210-001 21 1A9793 2 6301370392 COVER 1 803DD-210-002 21 1A9794 3 6301370453 COVER 1 803DD-210-00…
MODEL GXH-1
0909-002
56
カッタ部

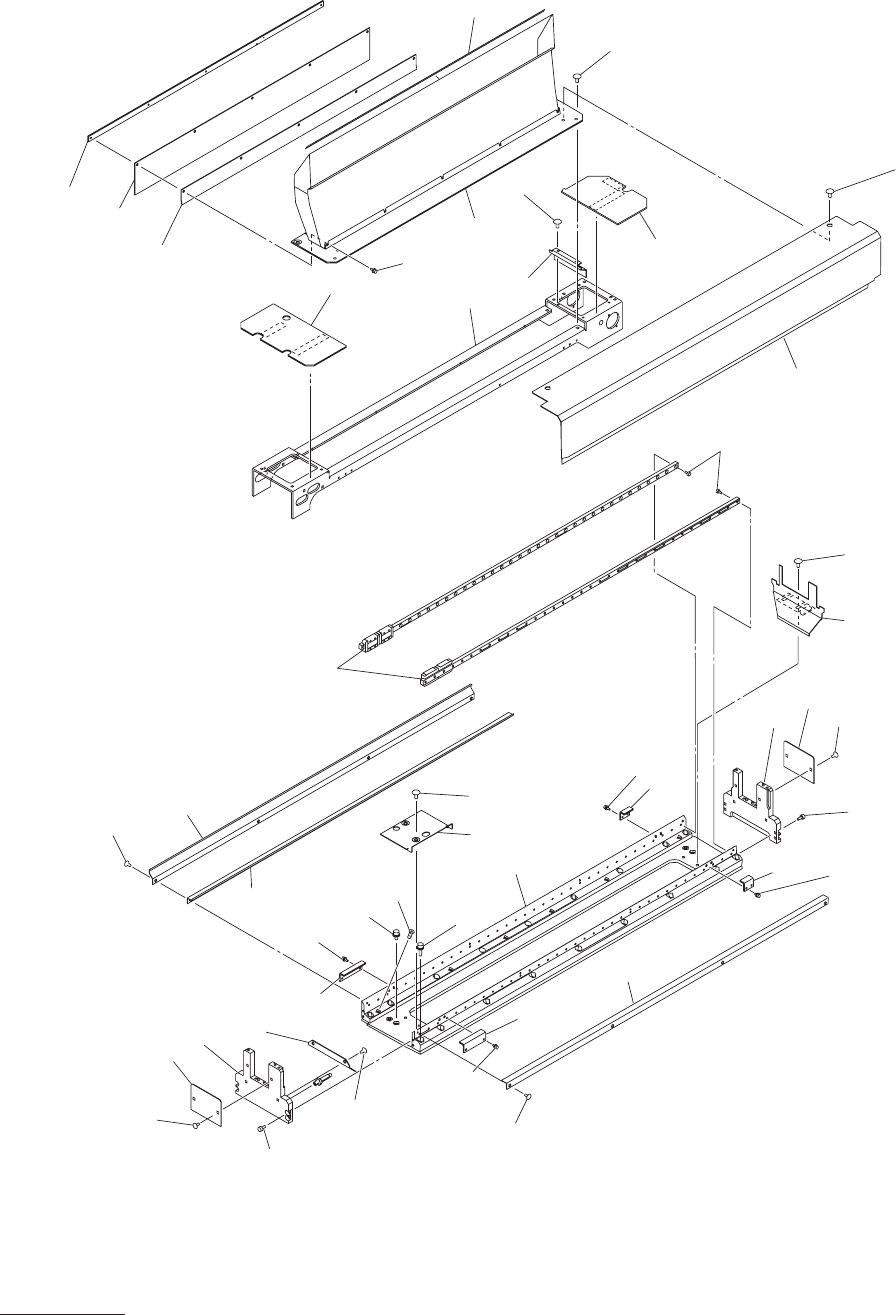

B,C CUTTER SECTION B,C
Fig. DD-1
ベースフレーム
Base Frame
10
6
42
5
37
15
49
14
59
65
61
.
52
.
59
51
36
58
53
17
33
22
28
21
67
63
.
56
.
67
63
.
55
.
58
17
58
32
66
62
.
54
.
57
32
66
62
.
54
.
57
59
26
60
66
62
.
54
.
53
27
33
66
62
.
54
.
1
3
2
31
57
25
59
8
MODEL GXH-1
1012-003
57
Key No. PART No. PART NAME Q’ty REMARKS New Code
NOTE
2Unit/1Machine
1 6301370385 COVER 1 803DD-210-001 211A9793
2 6301370392 COVER 1 803DD-210-002 211A9794
3 6301370453
COVER 1 803DD-210-003 211A9799
5 6301370514
COVER 1 803DD-210-005 211A9803
6 6301375731
COVER 1 803DD-210-006 211A9871
8 6301374253
COVER 1 803DD-210-008 211A9840
10 6301373522
GUIDE,LINEAR 1 803DD-210-210 222L0740
14 6301366852 PLA
TE 1 803DD-210-014 211DA551
15 6301370309
PLATE 1 803DD-210-015 211DA584
17 6301370378
PLATE 2 803DD-210-017 211DA586
20 6301370026
BRACKET 1 803DD-210-020 211F9724
21 6301365596
BRACKET 1 803DD-210-021 211F9662
22 6301380407
BRACKET 1 803DD-210-022 211F9818
25 6301372648
BRACKET 1 803DD-210-025 211F9758
26 6301380421
BRACKET 1 803DD-210-026 211F9820
27 6301376202
BLOCK 1 803DD-210-027 211G4116
28
6301376219 BLOCK 1 803DD-210-028 211G4117
30
6301359847 BLOCK 1 803DD-210-030 211G4012
31 6301260068
NAME PLATE,INDEX 1 803DD-210-231 6P460124
32 6301370217 BLOCK 2
803DD-210-032 211G4069
33 6301370224
BLOCK 2 803DD-210-033 211G4070
36 6301380384
BASE 1 803DD-210-056 210A2400
37 6301371917 FRAME 1
803DD-210-057 210B3900
42 6301372600 SUPPOR
T 1 803DD-210-072 211K3068
47 6301372723
BOLT,HEX-SCT 62 803DD-210-232 221A0346
49 6301366906 GUIDE 1
803DD-210-049 212A2219
52 6300007527 BOL
T,HEX-SCT 5 M3X10 221A0007
53 6300007619 BOL
T,HEX-SCT 8 M4X8 221A0016
54 6300007619 BOL
T,HEX-SCT 8 M4X8 221A0016
55 6300007725 BOL
T,HEX-SCT 8 M5X6 221A0027
56 6300007763 BOL
T,HEX-SCT 8 M5X16 221A0031
57 4110505004
SCR TRS 3X6 10 M3X6 TRS 221E0529
58 41
10511708 SCR TRS 4X6 6 M4X6 TRS 221E0532
59 41
11408007 SCR TRS 5X6 11 M5X6 TRS 221E0536
61
4111412806 WASHER SPR 3 5 SW3 221H0281
62 411
1412905 WASHER SPR 4 8 SW4 221H0284
63 411
1416705 WASHER SPR 5 12 SW5 221H0287
65 411
1413902 WASHER V 3X7X0.5 5 FW3 221H0312
66 411
1414008 WASHER V 4X9X0.8 8 FW4 221H0315
67 411
1414107 WASHER V 5X10X1 12 FW5 221H0318
DD-1
MODEL GXH-1
0503-001
58
カッタ部
B,C CUTTER SECTION B,C
Fig. DD-2
駆動部
Driving Section
126
169
164
.
154
.
104
131
111
132
1
18
113
116
142
143
129
133
107
124
1
16
143
142
129
133
129
144
134
123
169
164
.
154
.
169
164
.
154
.
156
167
162
.
151
.
156
153
158
169
164
.
154
.
166
161
155
153
158
158
159
136
171
137
140
137
171
140
138
166
161
155
167
162
.
151
.
158
1
10
171
153
See Fig.DD-1
Key No.37
156
126
126
126
129
144
171
127
128
141
168
163
.
152
.
131
158
