P240006 - 第92页

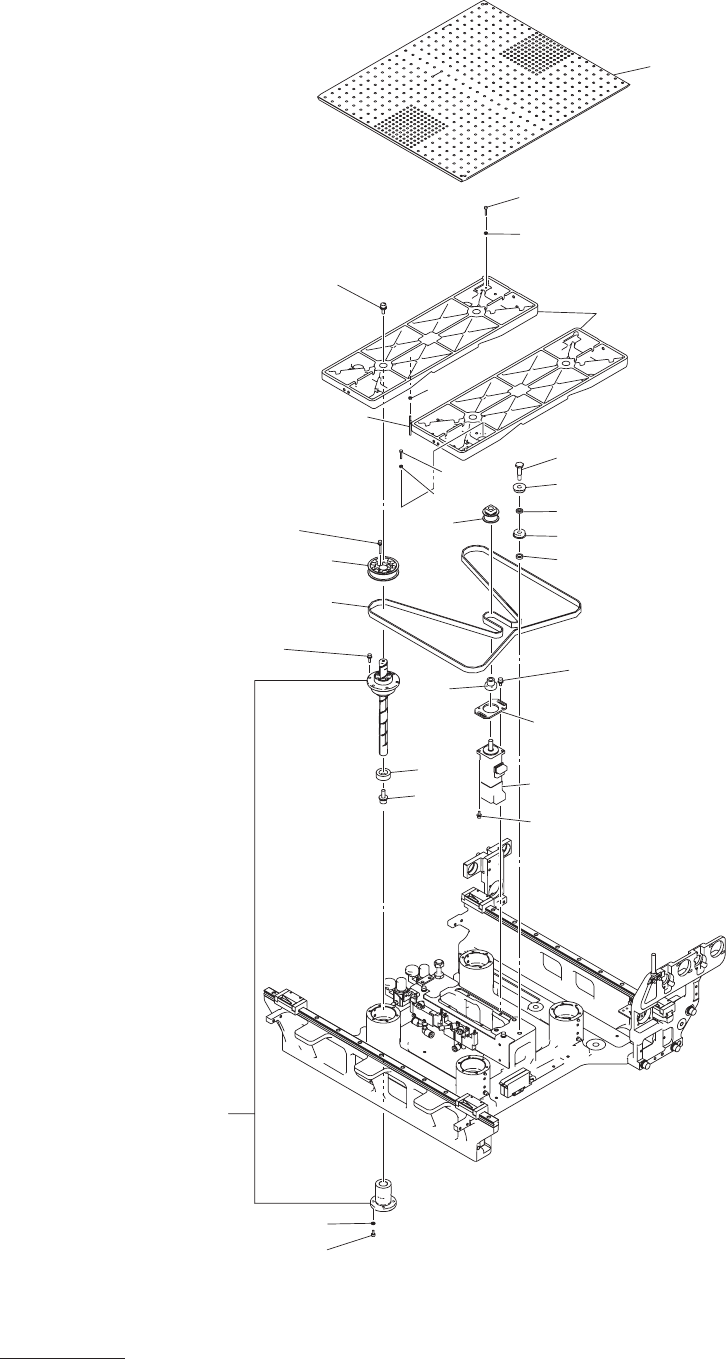

MODEL GXH-1 0503-003 90 コンベア部 CONVEYOR SECTION Fig. N-7 バックアップ上下駆動部 Back-up Leveller Driver 658 . 664 . 669 653 . 661 . 666 656 . 662 . 667 654 . 661 . 666 655 . 661 . 666 657 . 663 . 668 651 676 609 610 651 676 619 620 …
MODEL GXH-1
1012-005
89
Key No. PART No. PART NAME Q’ty REMARKS New Code
NOTE
N-6
501 6301347332 FRAME 2 803N--210-001 210B3851
502 6301315973 BASE 2 803N--210-002 210A2270
503 6301233215 SHAFT 2 213A1014
507 6301275529 PLATE 2 803N--210-207 211D9643
508 6301314730 BLOCK 3 803N--210-208 211G3751
512 6301360560 BRACKET 2 803N--210-012 211F9603
517 6300569346 GREASE NIPPLE 8 803N--210-017 226B0032
518 6300034301 GREASE NIPPLE 8 803N--210-018 226B0002
527 6300000252 SENSOR,PHOTO 4 -B5301,-B5501,-B5601
803N--210-027 23G10002
528 6300000269 SENSOR,PHOTO(CONNECTOR) 4 803N--210-028 23G10003
529 6300807752 BOLT 2 803N--210-029 221E0157
530 6301237039 SENSOR,PELEC 4 -B4201,-B4202 Amp
803N--210-030 23G00242
531 6301236643 AIR LINE EQPT 4 803N--210-031 225B0494
532 0803A0CC VALVE 2 -YSV0836 803N--210-032 0803A0CC
533 6301251844 VALVE 2 -YSV0835,-YSV0836
803N--210-033 225C0107
534 6300482935 AIR LINE EQPT 4 803N--210-034 225B0251
535 6301246260 AIR LINE EQPT 2 803N--210-035 225B0502
536 6301273679 BRACKET 4 803N--210-236 211F8436
537 6301243832 PLATE 2 211D9362
538 6301256443 GUIDE,LINEAR 2 803N--210-038 222L0689
539 6301256450 GUIDE,LINEAR 2 803N--210-039 222L0690
547 6301232911 BRACKET 2 803N--210-217 211F7944
551 6300007503 BOLT,HEX-SCT 4 M3X6 221A0005
552 6300007510 BOLT,HEX-SCT 8 M3X8 221A0006
553 6300007565 BOLT,HEX-SCT 4 M3X20 221A0011
554 6300007626 BOLT,HEX-SCT 8 M4X10 221A0017
555 6300007640 BOLT,HEX-SCT 42 M4X14 221A0019
556 6300007749 BOLT,HEX-SCT 8 M5X10 221A0029
557 6300007787 BOLT,HEX-SCT 10 M5X25 221A0033
558 6300008074 BOLT,HEX-SCT 6 M8X50 221A0062
559 4110406202 SCR PAN 3X10 8 M3X10 PAN 221E0488
561 4111412806 WASHER SPR 3 16 SW3 221H0281
562 4111412905 WASHER SPR 4 8 SW4 221H0284
563 4111416705 WASHER SPR 5 18 SW5 221H0287
564 4111413100 WASHER SPR 8 6 SW8 221H0291
566 4111413902 WASHER V 3X7X0.5 16 FW3 221H0312
567 4111414008 WASHER V 4X9X0.8 8 FW4 221H0315
568 4111414107 WASHER V 5X10X1 18 FW5 221H0318
569 4111414503 WASHER V 8X17X1.6 6 FW8 221H0323
MODEL GXH-1
0503-003
90
コンベア部
CONVEYOR SECTION
Fig. N-7
バックアップ上下駆動部
Back-up Leveller Driver
658
.
664
.
669
653
.
661
.
666
656
.
662
.
667
654
.
661
.
666
655
.
661
.
666
657
.
663
.
668
651
676
609
610
651
676
619
620
621
625
606
625
607
605
604
623
622
614
616
652
661
676
608
MODEL GXH-1
1012-005
91
Key No. PART No. PART NAME Q’ty REMARKS New Code
NOTE
N-7
604 6301315379 BRACKET 2 803N--210-004 211F8980
605 6301233192 SHAFT 6 803N--210-005 213A1012
606 6301233031 COLLAR 6
803N--210-006 216A1111
607
6301233048 COLLAR 6 803N--210-007 216A1112
608
6301232669 PLATE 2 803N--210-008 211D9253
609 6301276717
BASE 4 803N--210-009 210A2168
610 6301233178 ROD 2
803N--210-010 216C0696
614 6301233055 COLLAR 2
803N--210-014 216A1113
616
6301236605 BALL SCREW 8 803N--210-016 223B0351
619 6301236469 PULLEY
,TIMING 2 803N--210-019 223Q0542
620 6301236476 PULLEY
,TIMING 8 803N--210-020 223Q0543
621 6301236803 BEL
T,TIMING 2 803N--210-021 223L0263
622 6301236896 COUPLING 2
803N--210-022 223C0198
623 6301236964 MOT
OR,AC-SERVO 2 -M53 803N--210-023 4M150189
625 6300969009
BEARING,RADIAL 12 803N--210-425 222D0343
651 6300007558 BOL
T,HEX-SCT 8 M3X16 221A0010
652 6300007619 BOL
T,HEX-SCT 32 M4X8 221A0016
653 6300007626 BOL
T,HEX-SCT 4 M4X10 221A0017
654 6300007640 BOL
T,HEX-SCT 48 M4X14 221A0019
655 6300007671 BOL
T,HEX-SCT 32 M4X25 221A0022
656 6300007749 BOL
T,HEX-SCT 4 M5X10 221A0029
657 6300007886 BOL
T,HEX-SCT 8 M6X16 221A0043
658 6300008012 BOL
T,HEX-SCT 2 M8X20 221A0056
661 411
1412905 WASHER SPR 4 116 SW4 221H0284
662 41
11416705 WASHER SPR 5 4 SW5 221H0287
663 411
1413001 WASHER SPR 6 8 SW6 221H0289
664 411
1413100 WASHER SPR 8 2 SW8 221H0291
666 411
1414008 WASHER V 4X9X0.8 84 FW4 221H0315
667 411
1414107 WASHER V 5X10X1 4 FW5 221H0318
668 411
1414305 WASHER V 6X12.5X1.6 8 FW6 221H0320
669 411
1414503 WASHER V 8X17X1.6 2 FW8 221H0323
676 411
1409905 NUT HEX 3 8 M3 221F0079
