MODEL GXH-1 1012-005 91 Key No. P AR T No. P AR T NAME Q’ty REMARKS New Code NOTE N-7 604 6301315379 BRACKET 2 803N--210-004 21 1F8980 605 6301233192 SHAFT 6 803N--210-005 213A1012 606 6301233031 COLLAR 6 803N--210-006 2…
MODEL GXH-1
0503-003
90
コンベア部
CONVEYOR SECTION

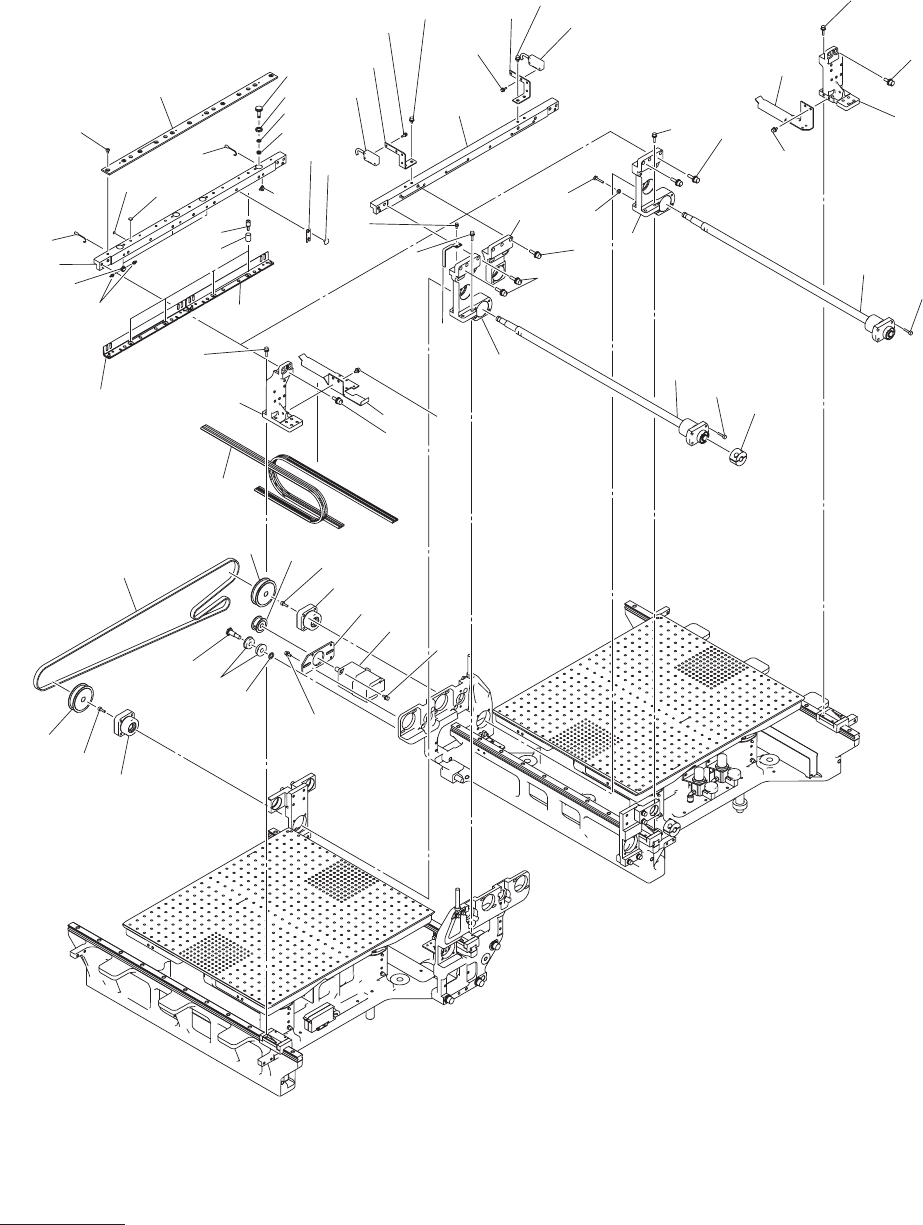

Fig. N-7
バックアップ上下駆動部
Back-up Leveller Driver
658
.
664
.
669
653
.
661
.
666
656
.
662
.
667
654
.
661
.
666
655
.
661
.
666
657
.
663
.
668
651
676
609
610
651
676
619
620
621
625
606
625
607
605
604
623
622
614
616
652
661
676
608
MODEL GXH-1
1012-005
91
Key No. PART No. PART NAME Q’ty REMARKS New Code
NOTE
N-7
604 6301315379 BRACKET 2 803N--210-004 211F8980
605 6301233192 SHAFT 6 803N--210-005 213A1012
606 6301233031 COLLAR 6
803N--210-006 216A1111
607
6301233048 COLLAR 6 803N--210-007 216A1112
608
6301232669 PLATE 2 803N--210-008 211D9253
609 6301276717
BASE 4 803N--210-009 210A2168
610 6301233178 ROD 2
803N--210-010 216C0696
614 6301233055 COLLAR 2
803N--210-014 216A1113
616
6301236605 BALL SCREW 8 803N--210-016 223B0351
619 6301236469 PULLEY
,TIMING 2 803N--210-019 223Q0542
620 6301236476 PULLEY
,TIMING 8 803N--210-020 223Q0543
621 6301236803 BEL
T,TIMING 2 803N--210-021 223L0263
622 6301236896 COUPLING 2
803N--210-022 223C0198
623 6301236964 MOT
OR,AC-SERVO 2 -M53 803N--210-023 4M150189
625 6300969009
BEARING,RADIAL 12 803N--210-425 222D0343
651 6300007558 BOL
T,HEX-SCT 8 M3X16 221A0010
652 6300007619 BOL
T,HEX-SCT 32 M4X8 221A0016
653 6300007626 BOL
T,HEX-SCT 4 M4X10 221A0017
654 6300007640 BOL
T,HEX-SCT 48 M4X14 221A0019
655 6300007671 BOL
T,HEX-SCT 32 M4X25 221A0022
656 6300007749 BOL
T,HEX-SCT 4 M5X10 221A0029
657 6300007886 BOL
T,HEX-SCT 8 M6X16 221A0043
658 6300008012 BOL
T,HEX-SCT 2 M8X20 221A0056
661 411
1412905 WASHER SPR 4 116 SW4 221H0284
662 41
11416705 WASHER SPR 5 4 SW5 221H0287
663 411
1413001 WASHER SPR 6 8 SW6 221H0289
664 411
1413100 WASHER SPR 8 2 SW8 221H0291
666 411
1414008 WASHER V 4X9X0.8 84 FW4 221H0315
667 411
1414107 WASHER V 5X10X1 4 FW5 221H0318
668 411
1414305 WASHER V 6X12.5X1.6 8 FW6 221H0320
669 411
1414503 WASHER V 8X17X1.6 2 FW8 221H0323
676 411
1409905 NUT HEX 3 8 M3 221F0079
