LF4-191 1 33 42 34 45 1 8 41 39 16 24 14 19 2 44 4 27 18 29 11 32 5 23 17 26 30 37 6 7 35 35 12 32 11 9 15 36 32 10 32 4 3 8 13 40 1 28 25 43 30 20 21 38 31 46 22 22 31 31 46 31 33 42 34 45 1 8 41 39 16 24 14 19 2 44 4 2…
LF4-1911
Rev. :It had a change without the compatibility. Please be careful at the time of the parts ordering.
Rev.: 過去に互換性の無い変更が入った部品。部品発注時は注意してください。
No. Part No. Part Name Q’ty Remarks Rev. Rank Level No. Part No. Part Name Q’ty Remarks Rev. Rank Level
1 LC3-M9113-10 SQUARE NUT 16 /
Í
39
2 LE6-M2606-10 PLATE SENSOR,Y 1 /
Í
40
3 LE6-M2608-00 LM GUIDE 1 /
Í
41
4 LE6-M260Y-00 LOCK,Y-AXIS 1 /
Í
42
5 LE6-M2621-E0 BRKT.,FAN 1 2 /
Í
43
6 LE6-M26E2-30 SHIM,GUIDE(003) 1 /
Í
44
7 LE6-M65A1-00 FAN8 ASSY. 1 B
Í
45
8 LE6-M65A1-10 FAN9 ASSY. 1 B
Í
46
9 LE6-M65EE-00 Y SENSOR ASSY 1 B
Í
47
10 LE6-M65EE-10 Y SENSOR ASSY 1 B
Í
48
11 LF1-M220P-00 HOLDER,CABLE 2 /
Í
49
12 LF1-M220R-00 HOLDER,SHEET B 6 /
Í
50
13 LF1-M220W-00 HOLDER,CABLE B 3 /
Í
51
14 LF1-M2604-10 COVER,SCREW 2 /
Í
52
15 LF1-M260A-00 BRACKET,DUCT Y 1 /
Í
53
16 LF1-M260E-00 PLATE SENSOR,Y 1 /
Í
54
17 LF1-M2618-01 SHEET A 1 /
Í
55
18 LF1-M2619-01 SHEET B 1 /
Í
56
19 LF1-M261A-01 SHEET C 1 /
Í
57
20 LF1-M26A1-00 CABLE BEAR,Y 3 /
Í
58
21 LF1-M26AC-00 HOLDER,CABLE 1 /
Í
59
22 LF3-M220X-00 BRKT.LOCK 1 /
Í
60
23 LF3-M220Y-00 LOCK,Y-AXIS 1 /
Í
61
24 LG0-M11HC-00 GUARD,FINGER 2 /
Í
62
25 90167-02JA05 SCREW, FLAT HEAD 18 63
26 91312-05010 BOLT HEX,SOCKET HEAD 14 64
27 91317-03005 BOLT HEX,SOCKET HEAD 16 65
28 91317-03006 BOLT HEX,SOCKET HEAD 4 66
29 91317-03008 BOLT HEX,SOCKET HEAD 4 67
30 91317-04006 BOLT HEX,SOCKET HEAD 6 68
31 91317-04010 BOLT HEX,SOCKET HEAD 8 69
32 91317-04035 BOLT HEX,SOCKET HEAD 8 70
33 91317-05018 BOLT HEX,SOCKET HEAD 46 71
34 92903-05200
WASHER,PLAIN
8 72
35 92907-03600 WASHER,PLAIN 4 73
36 92A08-05306 SCREW SET 8 74
37
95307-04600
NUT HEXAGON
4
75
38 98907-04008 SCREW BINDING HEAD 8 76
4
2
Y-Axis
Moving-axis
LF4-1911
Rev. :It had a change without the compatibility. Please be careful at the time of the parts ordering.
Rev.: 過去に互換性の無い変更が入った部品。部品発注時は注意してください。
No. Part No. Part Name Q’ty Remarks Rev. Rank Level No. Part No. Part Name Q’ty Remarks Rev. Rank Level
1 KV7-M7165-00 SEAL DON'T TOUCH 2 /
Í
39 91317-06020 BOLT HEX,SOCKET HEAD 4
2 LC0-M22A1-01 COUPLING,X 1 /
Í
40 91317-06030 BOLT HEX,SOCKET HEAD 4
3 LC1-M22AA-00 BRG,ANGULAR 1 /
Í
41 92907-05600 WASHER,PLAIN 2
4 LC2-M220H-01 TAPER PIN 4 /
Í
42 92907-03200 WASHER,PLAIN 2
5 LE6-M2201-E3 BEAM,X 1 /
Í
43 92A08-04005 SCREW,SET 1
6 LE6-M2204-00 LM GUIDE 1 /
Í
44 95307-06600 NUT HEXAGON 1
7 LE6-M2205-00 BALL SCREW,X 1 /
Í
45 99009-15400 CIRCLIP 3
8 LE6-M2220-E0 HOLDER X SET 1 /
Í
46 99480-05014 PIN,PARALLEL 2
9 LE6-M220C-E0 COVER,SCREW X 1 /
47
10 LE6-M220F-E0 BRKT,CONNECTOR 2 1 /
Í
48
11 LF3-M220H-00 PLATE,SENSOR X 2 /
Í
49
12 LF3-M220W-00 LOCK,X-AXIS 1 /
Í
50
13 LE6-M2211-00 SPACER 1 /
Í
51
14 LE6-M2212-01 PLATE,FLANGE 1 /
Í
52
15 LE6-M2221-00 PLATE,NUT 3 2 /
Í
53
16 LE6-M22A3-00 O-RING 1 /
Í
54
17 LE6-M22A6-00 NIPPLE 1 /
Í
55
18 LE6-M22AB-00 SPACER,CF-403.5ZE 2 /
Í
56
19 LE6-M22E1-10 SHIM,BRG(001) 1 -20 (002) /
Í
57
20 LE6-M65M2-01 X MOTOR ASSY 1 B
Í
58
21 LF3-M2208-00 HOLDER,HEAD 1 /
Í
59
22 LF3-M22A4-00 GOM,STOPPER 2 /
Í
60
23 LF3-M65E9-00 X SENSOR ASSY 1 B
Í
61
24 LF3-M65J3-00 X ENCODER.ASSY 1 B
Í
62
25 LG0-M22F4-00 PIECE,SET 1 /
Í
63
26 90200-10J060 O-RING 2 64
27 90933-01J002 BEARING 2 65
28 90990-16J006
NUT, U & NUT, SELF LOCKING
1 66
29 90990-33J036 BOLT, STOPPER 1 67
30 90990-46J002 BOLT, THIN HEAD 4 68
31 91317-04010 BOLT HEX,SOCKET HEAD 16 69
32 91312-05008 BOLT HEX,SOCKET HEAD 8 70
33 91317-03006 BOLT HEX,SOCKET HEAD 2 71
34 91317-03008
BOLT HEX,SOCKET HEAD
4 72
35 91317-04018 BOLT HEX,SOCKET HEAD 48 73
36 91317-05016 BOLT HEX,SOCKET HEAD 4 74
37
91317-05018
BOLT HEX,SOCKET HEAD
4
75
38 91317-06018 BOLT HEX,SOCKET HEAD 4 76
4
3

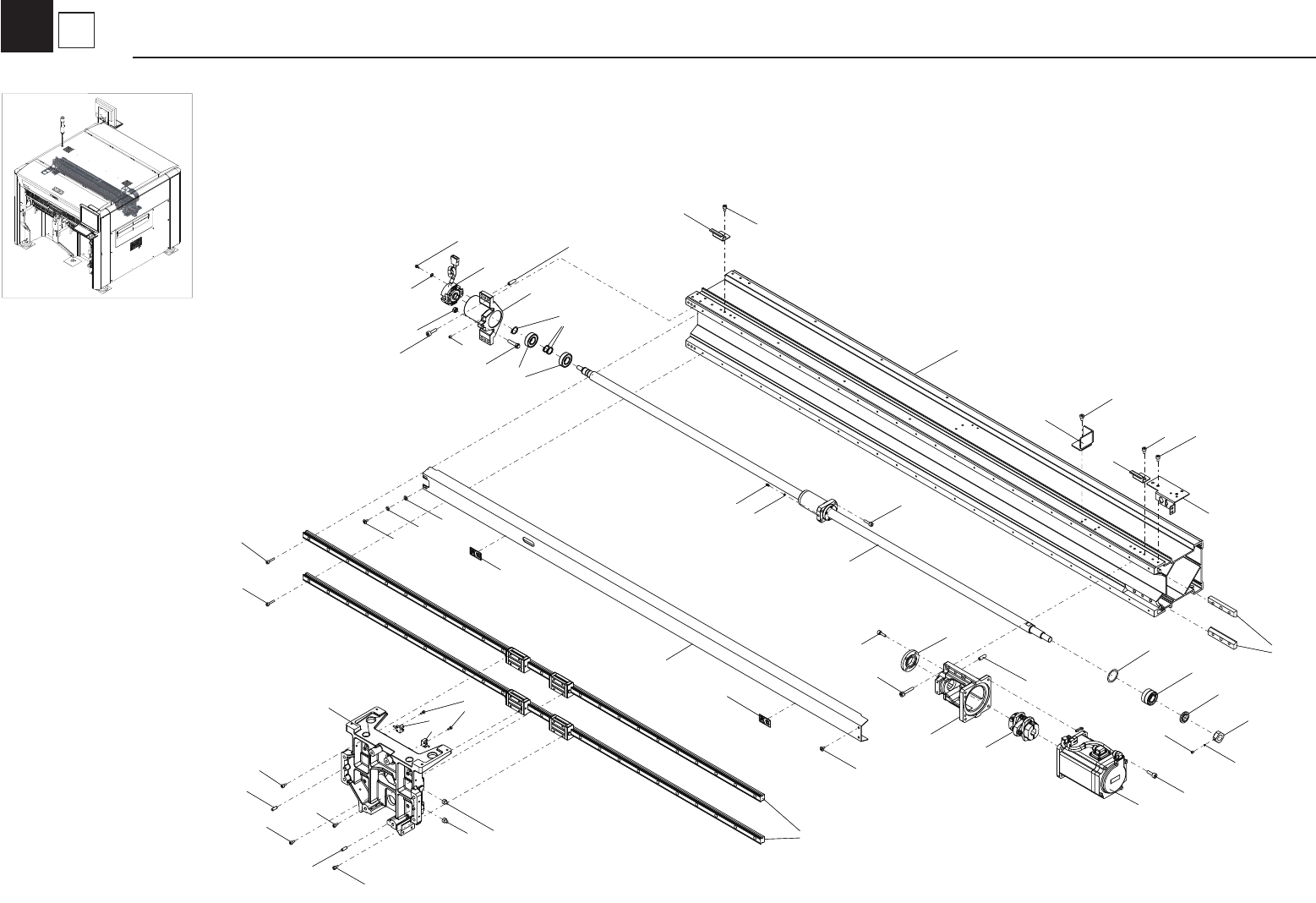

X-axis (6×2)
Moving-axis
