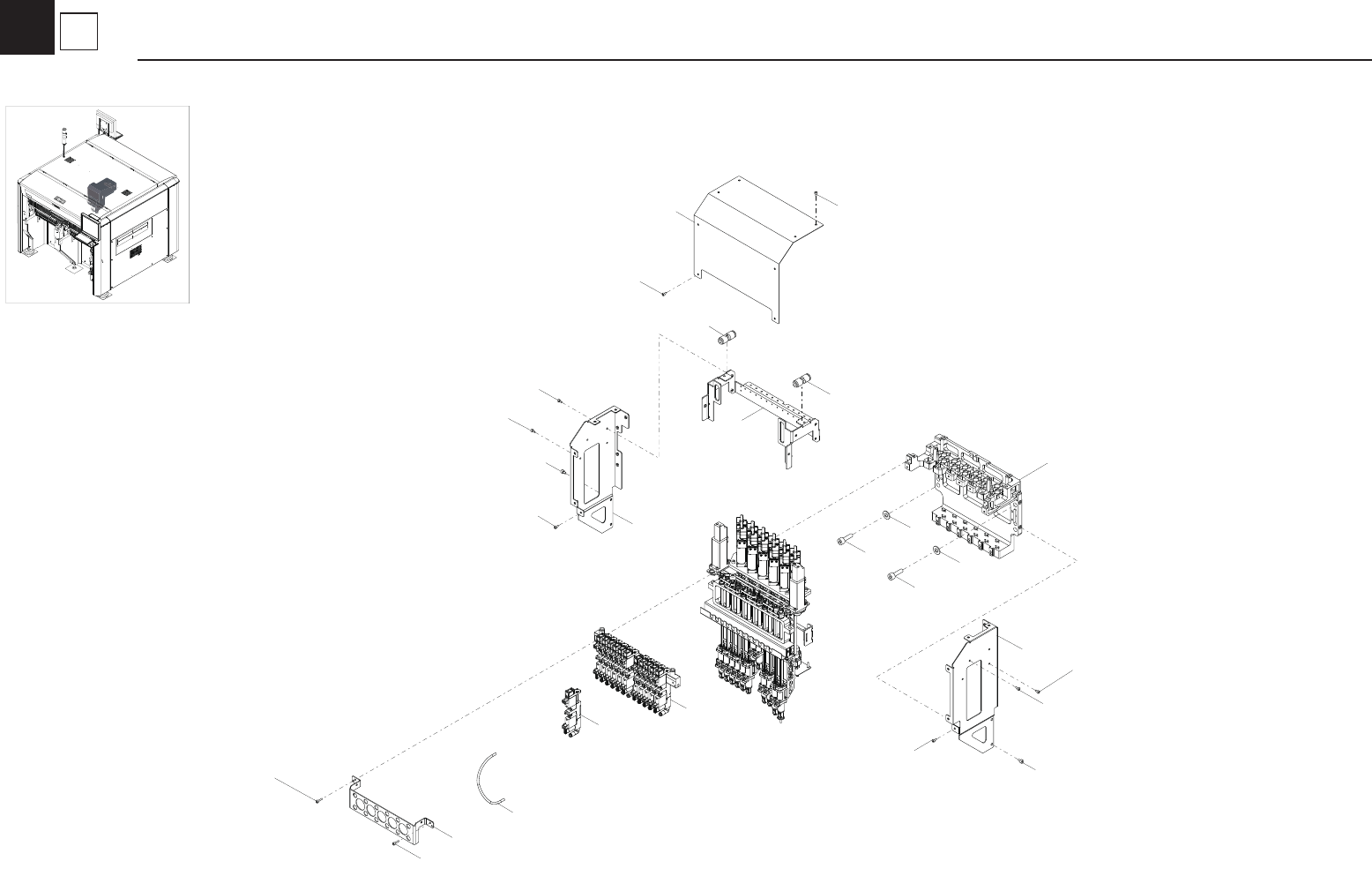

LF4-191 1 Rev . :It had a change without the compatibility . Please be careful at the time of the parts ordering. Rev.: 過去に互換性の無い変更が入った部品。部品発注時は注意してください。 No. Part No. Part Name Q’ty Remarks Rev. Rank Level No. Part No. P…
LF4-1911
Rev. :It had a change without the compatibility. Please be careful at the time of the parts ordering.
Rev.: 過去に互換性の無い変更が入った部品。部品発注時は注意してください。
No. Part No. Part Name Q’ty Remarks Rev. Rank Level No. Part No. Part Name Q’ty Remarks Rev. Rank Level
1 LF1-M712B-00 TUBE 12 /
39
2 LF1-M717A-10 SOL.VALVE ASSY. 1 B
Í
40
3 LF1-M71A8-00 VALVE ASSY. 12 B
41
4 LF3-M7101-10 BASE,HEAD 1
/
Í
42
5 LF3-M7105-00 BRKT,SOL. CABLE 1
/
Í
43
6 LF3-M710D-01 BRACKET,HEAD 1
/
Í
44
7 LF3-M7162-01 SUPPORT BRKT,L 1
/
Í
45
8 LF3-M7164-01 SUPPORT BRKT,R 1
/
Í
46
9 LF3-M7165-10 COVER,F 1
/
47
10 $USD8-6
JOINT
2 48
11 91312-03006 BOLT HEX,SOCKET HEAD 18 49
12 91312-03012 BOLT HEX,SOCKET HEAD 4 50
13 91317-04006 BOLT HEX,SOCKET HEAD 4 51
14 91317-08025 BOLT HEX,SOCKET HEAD 4 52
15 92907-08200 WASHER,PLAIN 4 53
16
54
17 55
18
56
19
57
20 58
21 59
22 60
23 61
24 62
25 63
26 64
27 65
28 66
29 67
30 68
31 69
32 70
33 71
34 72
35 73
36 74
37 75
38 76
5
1
Cover / Valve
Head
