LF4-191 1 Rev . :It had a change without the compatibility . Please be careful at the time of the parts ordering. Rev.: 過去に互換性の無い変更が入った部品。部品発注時は注意してください。 No. Part No. Part Name Q’ty Remarks Rev. Rank Level No. Part No. P…

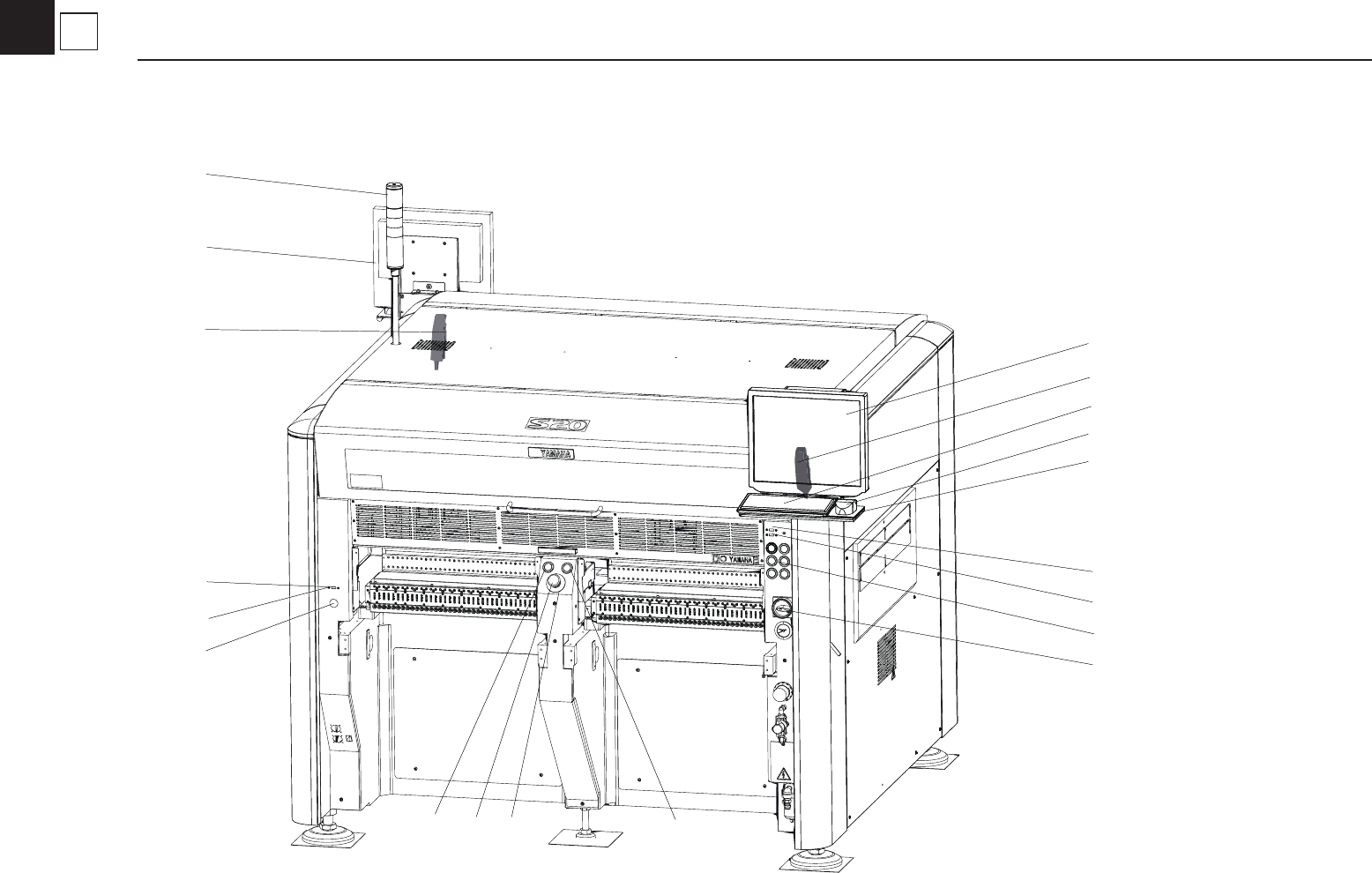

LF4-1911
Rev. :It had a change without the compatibility. Please be careful at the time of the parts ordering.
Rev.: 過去に互換性の無い変更が入った部品。部品発注時は注意してください。
No. Part No. Part Name Q’ty Remarks Rev. Rank Level No. Part No. Part Name Q’ty Remarks Rev. Rank Level
1 KGA-M5318-01 POWER TRANSFORMER 1 /
Í
39
2 KW8-M5328-01 POWER,TRANSFORMER 1 /
Í
40
3 LC0-M76A2-00 SPACER 17 /
Í
41
4 LC8-M6562-02 POWER SUPPLY,5 1 B
Í
42
5 LE4-M112N-01 BRACKET,HDD 1 /
Í
43
6 LE4-M112Y-00 BRACKET,HDD 1 /
Í
44
7 LE4-M113E-10 SCREW,6-32UNC 8 /
Í
45
8 LE4-M113J-20 WASHER 8 /
Í
46
9 LE4-M113L-01 BUSH,HDD 8 /
Í
47
10 LE4-M113M-01 SPACER,CB-413CE 8 /
Í
48
11 LE6-M11F1-00 WASHER,SPRING 8 /
Í
49
12 LE6-M6511-00 ATX POWER SUPPLY 1 /
Í
50
13 LE6-M6513-00 POWER SUPPLY 2 B
Í
51
14 LE6-M65A5-10 FAN2 ASSY. 1 B
Í
52
15 LE6-M65A7-00 FAN5 ASSY. 1 B
Í
53
16 LE6-M71HW-05 XIO.MI11 REV.A 1 B
Í
54
17 LF1-M4511-00 SATA HDD ASSY. 2 B
Í
55
18 LF3-M400K-01 COVER 1 /
Í
56
19 LF3-M6550-00 XIO.MINI3,STD 1
-10_QR,-20_IQ ,-30_IQ QR
B
Í
57
20 LF3-M65JR-00 Y1 REGIST ASSY. 2 /
Í
58
21 LF3-M65JR-10 Y2 REGIST ASSY. 2 /
Í
59
22 LF3-M65JR-20 X REGIST ASSY. 1 /
Í
60
23 LF3-M65JR-30 X REGIST ASSY. 1 /
Í
61
24 LG0-M11F1-00 WASHER,PLAIN 8 /
Í
62
25 LG0-M11HC-00 GUARD,FINGER 2 /
Í
63
26 90563-23J550 SPACER 6 /
Í
64
27 91312-04030 BOLT HEX,SOCKET HEAD 4 /
Í
65
28 91312-04035 BOLT HEX,SOCKET HEAD 4 66
29 91312-06014 BOLT HEX,SOCKET HEAD 8 67
30 92907-06100 WASHER, SPRING 8 68
31 97602-03306
SCREW PAN HEAD W/WASHER
15 69
32 97602-04308
SCREW PAN HEAD W/WASHER
31 70
33 98902-03006
SCREW BINDING HEAD
6 71
34 72
35 73
36 74
37 75
38 76
8
1
Controller
Controller
