Inline interface infeed SMEMA
ü Abra la ventana de diálogo de las configuraciones [Inline interface infeed SME-
MA]:
1. Abra la ventana de introducción [Conveyor].
2. En el recuadro [Conveyor 1] haga clic en el botón .
ð Se abre la ventana de las configuraciones:

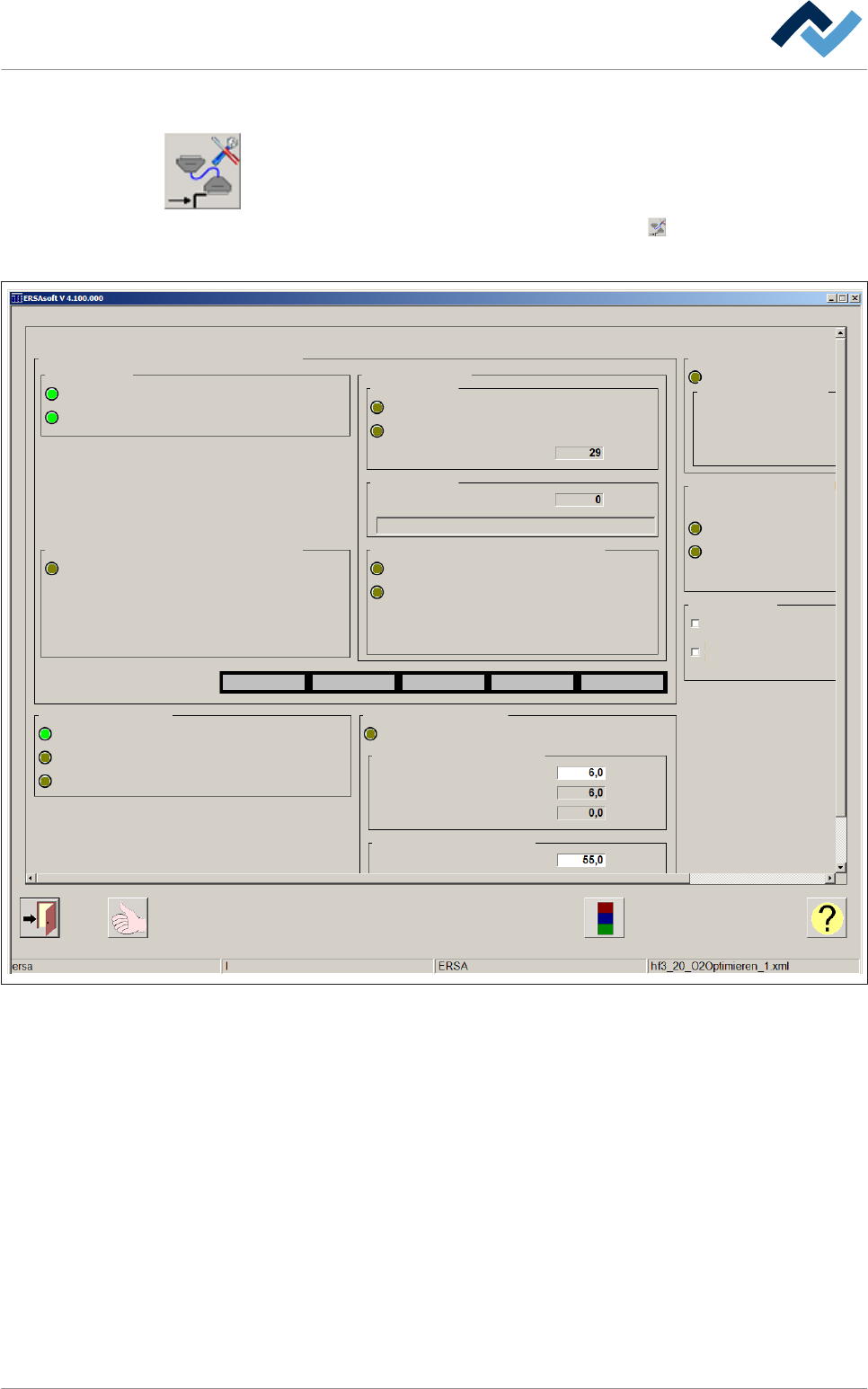

Inline interface infeed SMEMA Conveyor 1 Settings
Signals of inline interface SMEMA
Active
Interface configured
Interface active
Inside machine
ISEL sensor
Sensor ISEL hardware signal
Sensor ISEL software signal
Number of boards
Current step
Step
Conveyor track not ready
'Not busy' send to N-1
'Fault cascade error free' send to N-1
Conveyor 1
Conveyor active
Conveyor track is ready
Outfeed ready
Separation
Separation active
Board separation time
Edit value
Set value
Actual value
Board separation distance
Edit value
Maintenance mode
Board reliable in machine
Error inline interface in infeed
Error active
Monitoring time for error active
Board reliable in machine active
Waiting time
Edit value
Set value
Actual value
Time actual value
release
release of N - 1 only in automatic
User needs to release infeed after change to automatic mode
s
s
s
mm
Hardware signals: Send to conveyor
'Board available' received from N-1
Hardware signals: Send from conveyor
Abb. 117: Ventana de las configuraciones [Inline interface infeed SMEMA]
Estado de la señal de las Inline interface en el recuadro [Signals of inline
interface SMEMA]
En el recuadro [Active]:
▪ [Interface configured]
▪ [Interface active]
En el recuadro [Hardware signals: Send to conveyor]:
▪ ['Board available' received from N-1]
En el recuadro [Inside machine]:
▪ ISEL sensor [Sensor ISEL hardware signal]
▪ ISEL sensor[Sensor ISEL software signal]
▪ ISEL sensor [Number of boards]
Descripción de funciones | 6
Ersa GmbH Instrucciones de uso_HF3_14_es | 30/10/2014 314 / 0
▪ Step [Current step]
▪ Hardware signals: Send from conveyor ['Not busy' send to N-1]
▪ Hardware signals: Send from conveyor ['Fault cascade error free' send to N-1]
Estado de la señal del transportador en el recuadro [Conveyor 1]
▪ [Conveyor active]
▪ [Conveyor track is ready]
▪ [Outfeed ready]
Estado del aislamiento del material para la soldadura en el recuadro
[Separation]
▪ [Separation active]
▪ Board separation time [Edit value]
▪ Board separation time [Set value]
▪ Board separation time [Actual value]
▪ Board separation distance [Edit value]
▪ Board separation distance [Set value]
▪ Board separation distance [Actual value]
Recuadro [Board reliable in machine]
▪ [Board reliable in machine active]
▪ Waiting time [Edit value]
▪ Waiting time [Set value]
▪ Waiting time [Actual value]
Recuadro [Error inline interface in infeed]
▪ [Time till error INLINE infeed]
▪ [Error active]
▪ [Monitoring time for error active]
▪ [Time actual value]
Recuadro [release]
▪ [release of N - 1 only in automatic]
▪ [User needs to release infeed after change to automatic mode]
Observe la figura siguiente:
Dispositivo
de soldadura
Dispositivo
anterior
Siguiente
dispositivo
Interfaz
SMEMA / WMW
n + 1n - 1 n
Abb. 118: Representación esquemática de las instalaciones y de las interfaces
ü Aceptar la configuración, cerrar el diálogo
1. Para aceptar la configuración clique el botón .
Board reliable in machine
Board reliable in machine active
Waiting time
Edit value
Set value
Actual value
Error inline interface in infeed
Error active
Monitoring time for error active
Time actual value
release
release of N - 1 only in automatic
User needs to release infeed after change to automatic mode
mm
s
s
s
s
Time till error INLINE infeed
Descripción de funciones | 6
Ersa GmbH Instrucciones de uso_HF3_14_es | 30/10/2014 315 / 0
2. Clique en para cerrar el cuadro de diálogo.
