Control unit_20211124_032820 - 第9页
Control unit Page 9 / 14 24.11.2021

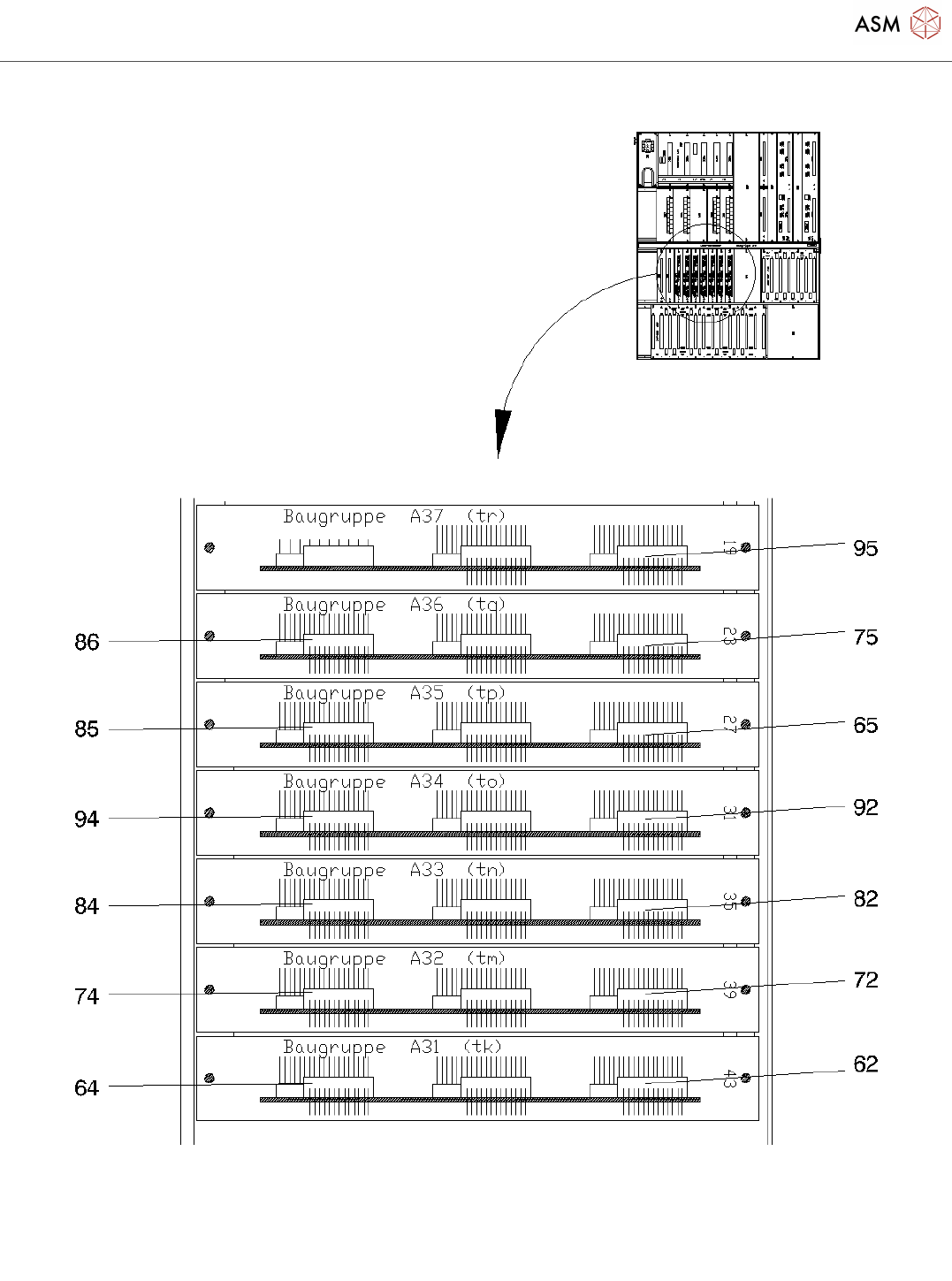

Control unit
Page 8 / 14 24.11.2021
Control unit
Page 9 / 14 24.11.2021
Control unit
Page 10 / 14 24.11.2021
Pos. Item no. Description Part marking
1 00334808-02 CONTROL UNIT HS50
00335484-02 CONTROL UNIT HS50 WITHOUT MVS
03038744-01 CONTROL UNIT WITHOUT CABLE
TREE WITHOUT MVS
3 00335522S03 MACHINE CONTROLLER M54 SPARE PART
4 00335526S06 MASS STORAGE KSP-M351 SPARE PART
5 00335520S11 AXIS KSP-A362 3 X AC SPARE PART
6 00335519S11 AXIS KSP-A362 FOR SIPLACE HS50 Spare Part
7 00347434-01 COMMUNICATION ASSY KSP-
COM352
8 03051561-02 VIDEO MULTIPLEXER KSP-VMP-
S50/HF
SPARE PART
9 00328492S03 DC/DC-CONVERTER KSP-SV501
+/-12V
SPARE PART
10 00329380-03 POWER SUPPLY +/-15V SPARE PART
11 00329073-02 POWER SUPPLY +5V / +24V SPARE PART
12 00329220-04 POWER SUPPLY +5V SPARE PART
13 00335527-01 PARTIAL FRONT PLATE 6HE 4TE
14 00335528-01 PARTIAL FRONT PLATE 6HE 8TE
15 00341762-01 PARTIAL FRONT PANEL 6HE 12TE
16 00334809S01 CONTROL UNIT S50 WITHOUT
CARDS
Spare Part
17 00335208-01 CONTROL UNIT HS50 RACK
00305343-01 GUIDE RAIL ES902C 160MM
PLASTIC
SPARE PART
00334696-01 GUIDE RAIL 160MM FOR CONTACT
SPRING
SPARE PART
00334698-01 CONTACT SPRING FOR GUIDE RAIL SPARE PART
21 00350497-01 BACKPLANE KSP-SMP16-HS50
14STPL
22 00335539-01 BACKPLANE AMS-M402-A7 Spare Part
23 00335540-01 MVS-BACKPLANE Spare Part
24 00329381-01 BACKPLANE POWER SUPPLY
25 00335379-01 FAN UNIT S50
109 00319141-01 AXIAL AIR VENT 4414F 24VDC SPARE PART
00332363-02 FAN MOUNT
26 00329179-01 EMV-BACKPLANE AXIS
