3 Power supply 3.5 Power supply and transformer module (from serial number Hxxxx) 102 Service Manual SIPLACE X-Serie S 06/2019
3 Power supply
3.5 Power supply and transformer module (from serial number Hxxxx)
Service Manual SIPLACE X-Serie S 06/2019 101
3.5.12.1 Distribution and fusing board assembly

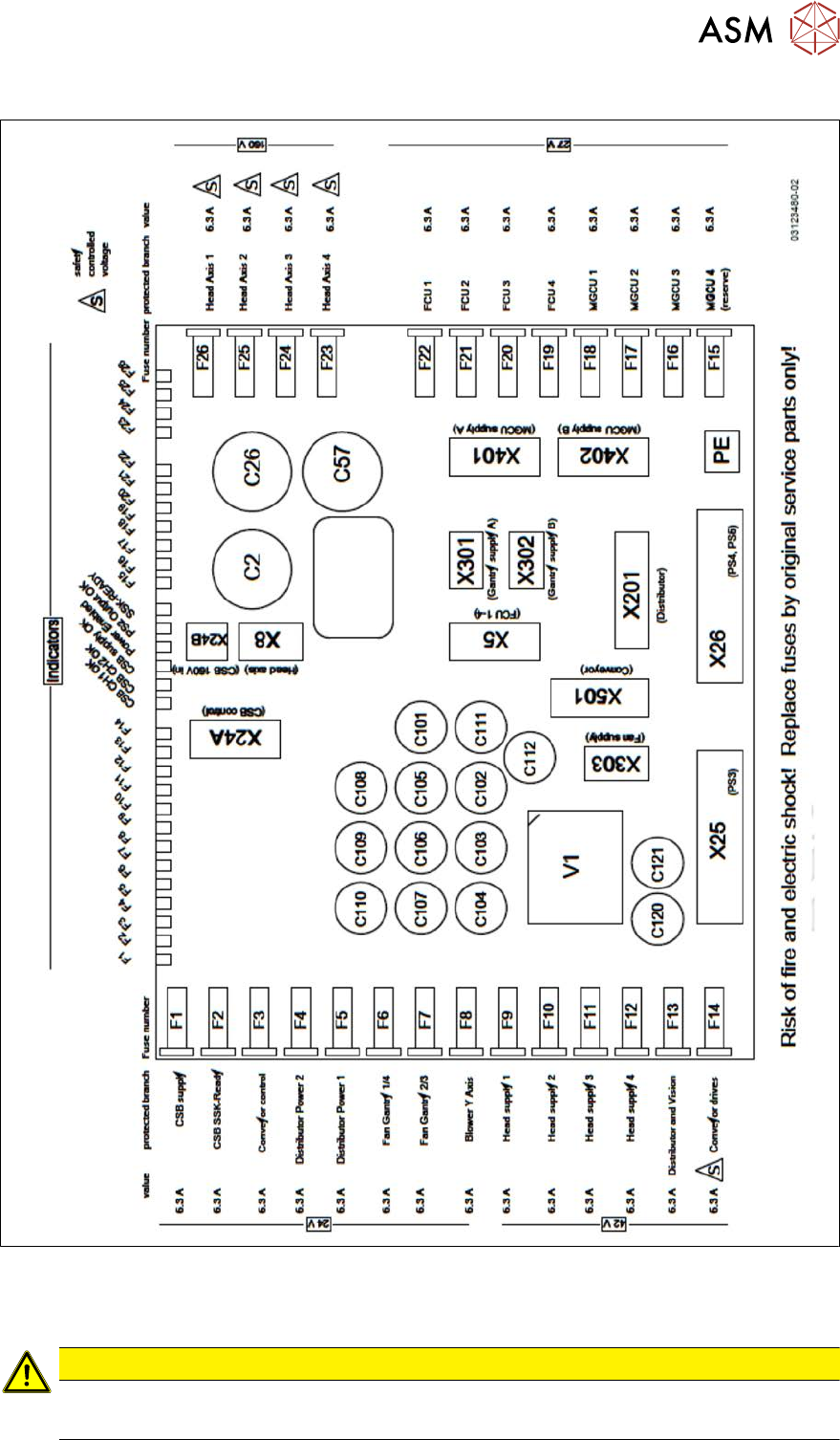

Fig.120: Distribution and fusing board assembly [03118289‑xx]
●
Micro fuse 5x20mmT 6.3A 250V (spare part) [03078843‑xx]
Each machine is supplied with a pack of 10 fuses.
CAUTION
Use only 6.3A fuses!
► If 10A fuses are present, replace them by 6.3A fuses.
3 Power supply
3.5 Power supply and transformer module (from serial number Hxxxx)
102 Service Manual SIPLACE X-Serie S 06/2019
4 Electrics and control system
4.1 Electrical System
Service Manual SIPLACE X-Serie S 06/2019 103
4 Electrics and control system
DANGER
Observe User Manual
► Please observe the safety instructions in the user manual for all work!
4.1 Electrical System
Fig.121: Electrics (example of X4i S shown)
1. EMERGENCY STOP button
2. HCU, GCU, BoxPC
(behind the cover)
3. Main switch
4. Power supply (behind the cover)
