4 Electrics and control system 4.2 BoxPC Service Manual SIPLACE X-Serie S 06/2019 109 4.2.5 Replacing the CAN card (BoxPC 627B/827C only, up to no. Gxxxx) Parts, equipment and tools ● CAN card COM168V2-PCI [03079973-xx] …
4 Electrics and control system
4.2 BoxPC
108 Service Manual SIPLACE X-Serie S 06/2019

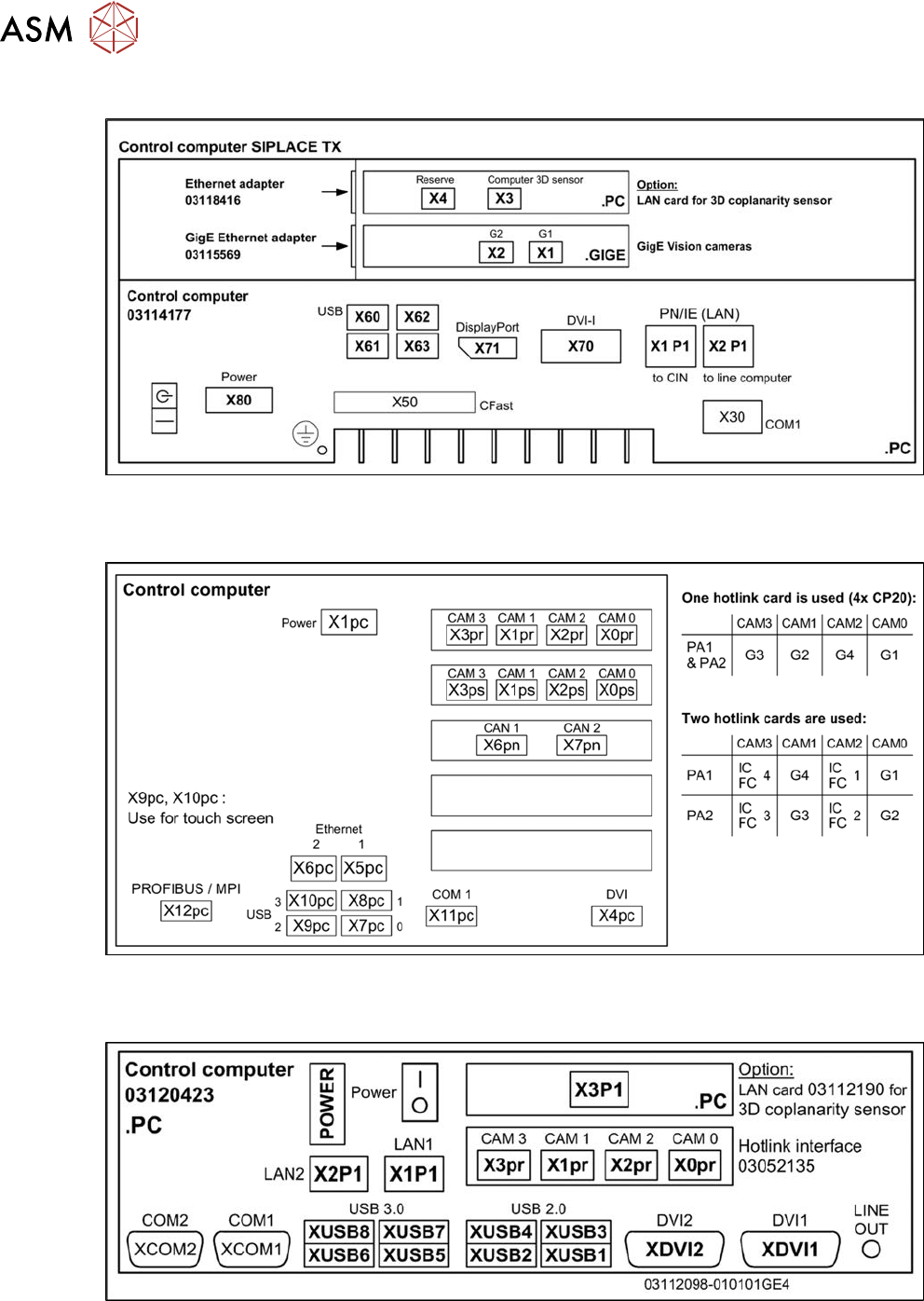

4.2.2 Overview of Connections for BoxPC 427D
Fig.127: BoxPC 427D - connections
4.2.3 Overview of Connections for BoxPC 627x/827x
Fig.128: Overview of connections for BoxPC 627x/827x
4.2.4 Overview of connections for BoxPC ABP402-A
Fig.129: Connections BoxPC ABP402-A CPU1020E 2xPCI SSD (iBase) [03120423-xx] (from Nxxxx onwards)
4 Electrics and control system
4.2 BoxPC
Service Manual SIPLACE X-Serie S 06/2019 109
4.2.5 Replacing the CAN card (BoxPC 627B/827C only, up to no. Gxxxx)
Parts, equipment and tools
●
CAN card COM168V2-PCI [03079973-xx] (old: [03052590-xx])
Removal
The CAN card is installed in the BoxPC.
► Switch off the machine, disconnect it from the power supply and secure it to prevent
unauthorized reactivation.
1.2 "Preparatory work..." [}16]
► Dismantle and remove the BoxPC from the machine.
4.2.1 "Replacing the Control Computer BoxPC" [}104]
► Remove the two screws fastening the cover of the BoxPC and open the cover.
► Remove the screw fastening the plug-in card and then remove this card.
Installation
► Follow the removal instructions in reverse order for installation. Also observe the following
instructions:
– Make sure that the plug-in card is correctly fitted into its slot.
4.2.6 Replacing the GigE Ethernet Adapter
Parts, equipment and tools
●
GigE ethernet adapter PCI-E I340-T4 [03105575‑xx]
●
GigE-Ethernet-Adapter PCI-E I350 T2 V2 BLK [03115569‑xx]
Overview

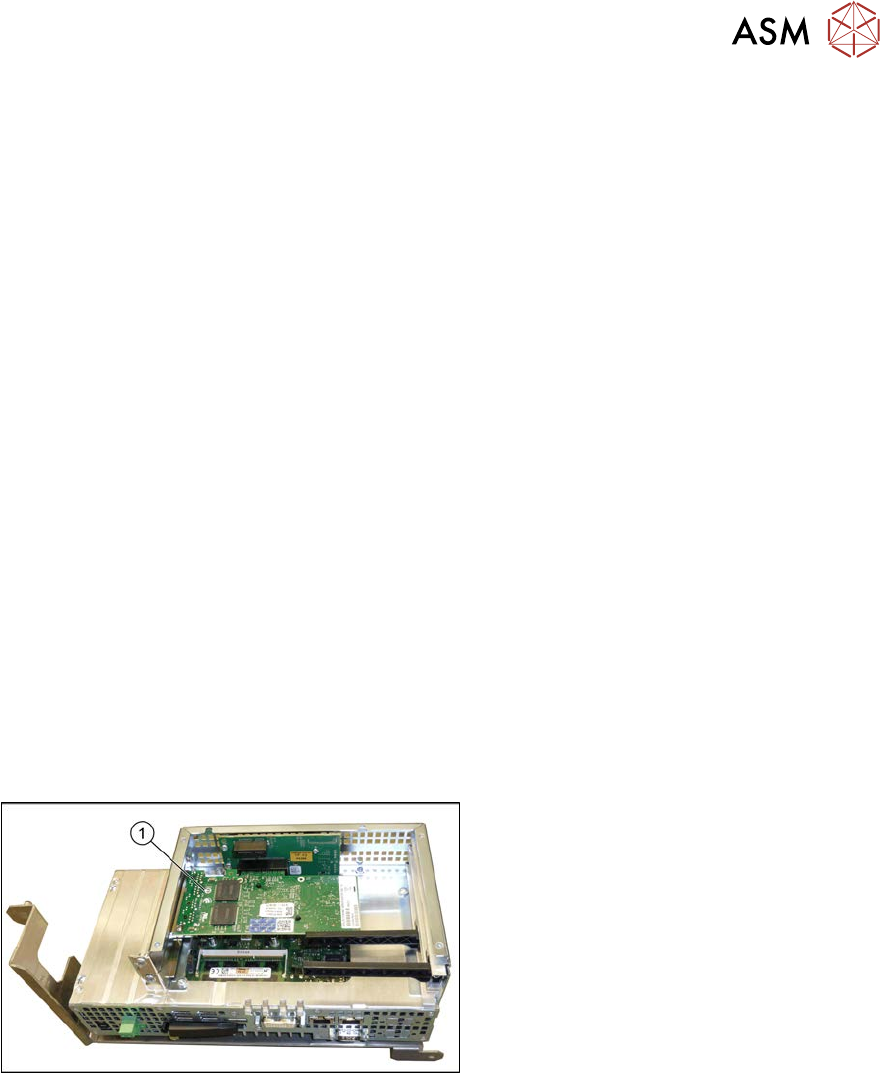

Fig.130: GigE Ethernet adapter in the BoxPC 427D
1. GigE ethernet adapter
Removal
► Switch off the machine, disconnect it from the power supply and secure it to prevent
unauthorized reactivation.
1.2 "Preparatory work..." [}16]
► Dismantle and remove the BoxPC from the machine.
4.2.1 "Replacing the Control Computer BoxPC" [}104]
► Remove the screws fastening the cover of the BoxPC and open the cover.
► Remove the screw fastening the Ethernet adapter and remove the Ethernet adapter.
Installation
► Follow the removal instructions in reverse order for installation. Also observe the following
instructions:
– Make sure that the plug-in card is correctly fitted into its slot.
4 Electrics and control system
4.2 BoxPC
110 Service Manual SIPLACE X-Serie S 06/2019
4.2.7 Replacing the LAN card (from serial no. Hxxxx)
If a 3D Coplan or a barcode scanner is installed, the "LAN card PCI Express 2x Gigabit
LAN" [03118416-xx] is needed in addition.
This LAN card is fitted in the "BoxPC 427D" [03114177-xx] of machines from serial number Hxxxx.
Parts, equipment and tools
●
LAN card PCI-Express 2x Gigabit LAN [03118416-xx]
Overview

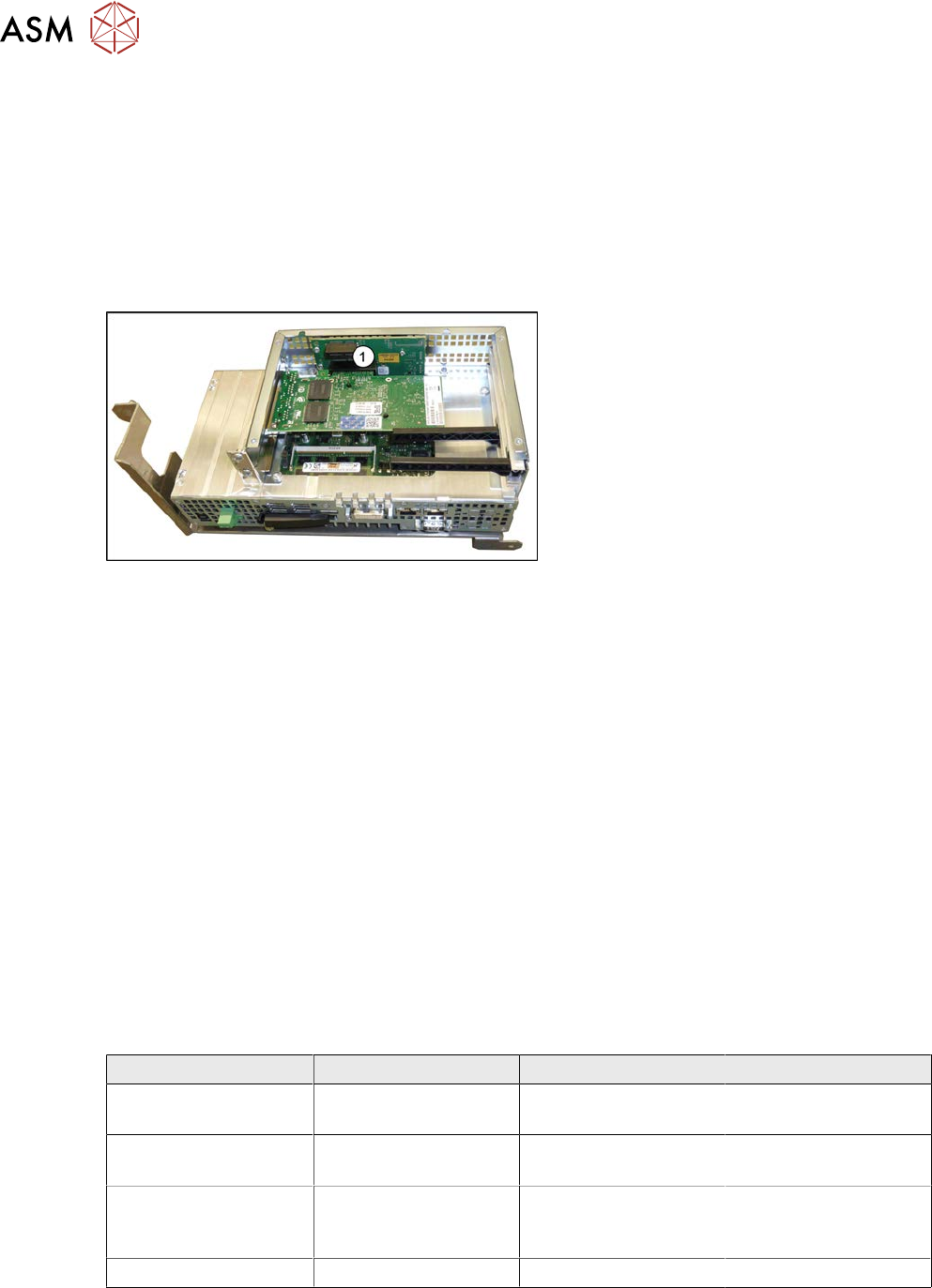

Fig.131: BoxPC 427D
1. Free slot for the LAN card
Removal
The plug-in card is fitted in the BoxPC.
► Switch off the machine, disconnect it from the power supply and secure it to prevent
unauthorized reactivation.
1.2 "Preparatory work..." [}16]
► Dismantle and remove the BoxPC from the machine.
4.2.1 "Replacing the Control Computer BoxPC" [}104]
► Open the covers above the plug-in cards.
► Remove the screw fastening the LAN card and remove the LAN card.
Installation
► Follow the removal instructions in reverse order for installation. Also observe the following
instructions:
– Make sure that the plug-in card is correctly fitted into its slot.
– Configure the IP settings for the LAN card (see below)
Overview of IP Addresses
IP address Subnet mask Comment
SIPLACE LAN 172.22.xxx.xxx 255.255.0.0 LAN connection on the
computer
CIN box 192168255239 255255255224 LAN connection on the
computer
Station computer 192168255249 255255255240 Additional LAN card for
the coplanarity com-
puter
Coplanarity computer 192168255253 255255255240
