4 Electrics and control system
4.2 BoxPC
110 Service Manual SIPLACE X-Serie S 06/2019
4.2.7 Replacing the LAN card (from serial no. Hxxxx)
If a 3D Coplan or a barcode scanner is installed, the "LAN card PCI Express 2x Gigabit
LAN" [03118416-xx] is needed in addition.
This LAN card is fitted in the "BoxPC 427D" [03114177-xx] of machines from serial number Hxxxx.
Parts, equipment and tools
●
LAN card PCI-Express 2x Gigabit LAN [03118416-xx]
Overview
Fig.131: BoxPC 427D
1. Free slot for the LAN card
Removal
The plug-in card is fitted in the BoxPC.
► Switch off the machine, disconnect it from the power supply and secure it to prevent
unauthorized reactivation.
1.2 "Preparatory work..." [}16]
► Dismantle and remove the BoxPC from the machine.
4.2.1 "Replacing the Control Computer BoxPC" [}104]
► Open the covers above the plug-in cards.
► Remove the screw fastening the LAN card and remove the LAN card.
Installation
► Follow the removal instructions in reverse order for installation. Also observe the following
instructions:
– Make sure that the plug-in card is correctly fitted into its slot.
– Configure the IP settings for the LAN card (see below)
Overview of IP Addresses
IP address Subnet mask Comment
SIPLACE LAN 172.22.xxx.xxx 255.255.0.0 LAN connection on the
computer
CIN box 192168255239 255255255224 LAN connection on the
computer
Station computer 192168255249 255255255240 Additional LAN card for
the coplanarity com-
puter
Coplanarity computer 192168255253 255255255240
4 Electrics and control system
4.2 BoxPC
Service Manual SIPLACE X-Serie S 06/2019 111

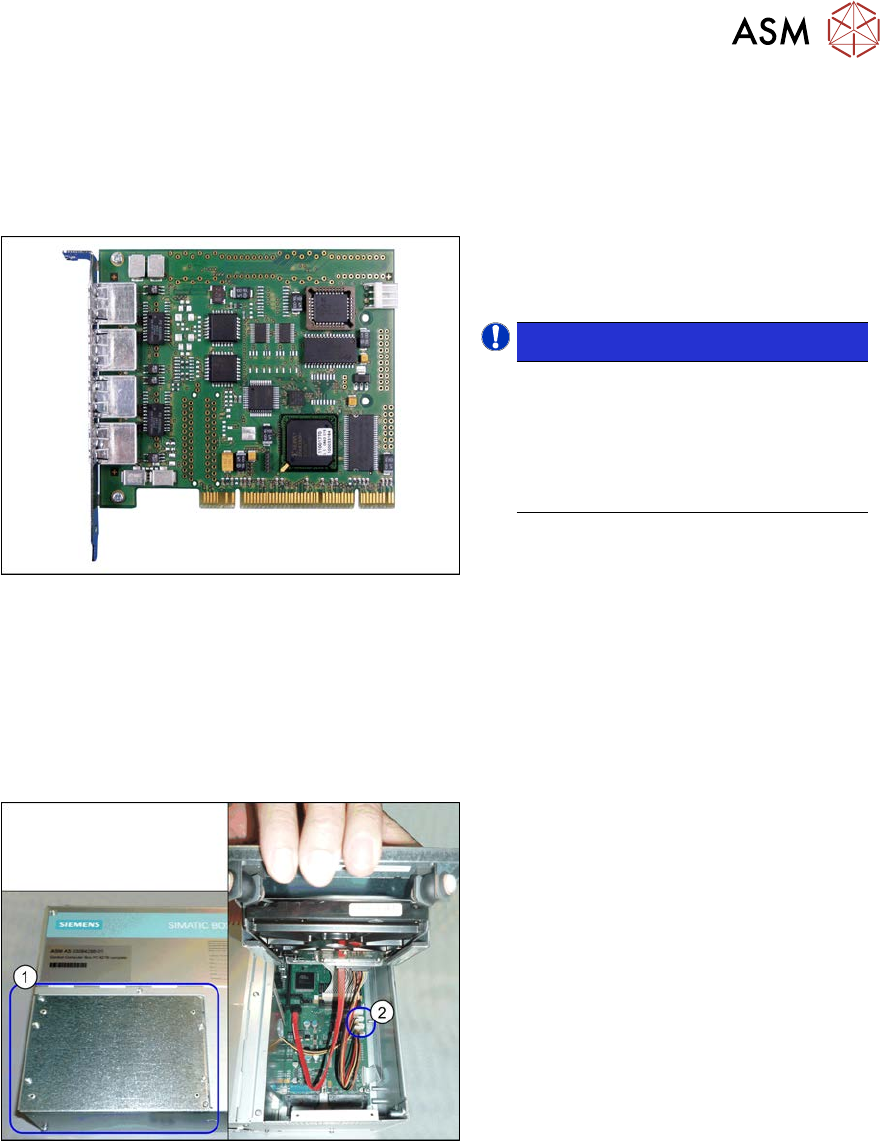

4.2.8 Replacing the Hotlink interface card
The hotlink interface is fitted in BoxPCs of type 627B/827C.
BoxPCs of this type are fitted in the SIPLACE X-Series S up to machine no. Gxxxx.
Parts, equipment and tools
Fig.132: Hotlink interface
●
Hotlink interface PCI-A24-K01
[03052135-xx]
NOTICE!
Hotlink interface power cable
The hotlink interface is supplied
without a hotlink interface power cable.
You may need to order the hotlink in-
terface power cable [03042074-xx]
separately.
.
Removal/installation
► Removal and installation of the hotlink interface is identical to that for the CAN card (see 4.2.5
"Replacing the CAN card (BoxPC 627B/827C only, up to no. Gxxxx)" [}109]). Also observe
the following instructions:
– Connect the "hotlink interface/power" cable [03042074-xx]. Follow the diagram below for
this.
Fig.133: Hotlink interface power cable (example of BoxPC
827 shown)
Hotlink cable
► If you are replacing the hotlink interface
power cable (2), you will need to loosen
and open the cover (1) on the hard
drives.
However, if you are continuing to use
the old hotlink interface power cable,
this step is not required.
4 Electrics and control system
4.2 BoxPC
112 Service Manual SIPLACE X-Serie S 06/2019
4.2.9 Replacing the RAM in the BoxPC
Parts, equipment and tools
NOTICE
RAM
Microsoft Windows 7/8 needs at least 2 GB RAM.
Microsoft Windows 10 needs 4 GB RAM.
Machine type PC type RAM module type
X-Series S up to no.:
Gxxxx, SX4/DX4
BoxPC 827C [03094732‑xx] Minimum 2GB DDR3 1066 DIMM *)
X-Series S from no.:
Hxxxx
BoxPC 427D [03114177Sxx] 4 GB DDR 1333Mhz PC3-10600 SO-
DIMM
*) For more information about the RAM needed, contact the SIPLACE hotline.
Overview
Fig.134: BoxPC 627B/C
1. Memory extension
Fig.135: BoxPC 427D
1. Memory extension
2. Four screws fastening the cover
Removal
► Switch off the machine, disconnect it from the power supply and secure it to prevent
unauthorized reactivation.
1.2 "Preparatory work..." [}16]
► Dismantle and remove the BoxPC from the machine.
4.2.1 "Replacing the Control Computer BoxPC" [}104]
► Remove the screws fastening the cover of the BoxPC and open the cover.
► Open the locks on both sides of the memory extension and remove the memory extension.
