5 Pneumatic System 5.9 Replacing the side channel compressor Elmo blower (location 3) 142 Service Manual SIPLACE X-Serie S 06/2019 5.9 Replacing the side channel compressor Elmo blower (location 3) Parts, equipment and t…
5 Pneumatic System
5.8 Replacing the proportional controller (Location 4)
Service Manual SIPLACE X-Serie S 06/2019 141
Removal
► Switch off the machine, disconnect it from the power supply and secure it to prevent
unauthorized reactivation.
1.2 "Preparatory work..." [}16]
► Switch off the compressed air supply and then disconnect the machine from the compressed
air supply.
5.2 "Disabling the compressed air supply" [}134]
► To do this, remove the screws fastening the side cover at location 4 and remove this cover.
5.5 "Dismantling the Lower Side Cover" [}135]
► Unplug the electrical connection to the proportional controller.
► Remove the screws fastening the proportional controller and then remove the controller.
Installation
► Follow the removal instructions in reverse order for installation. Also observe the following
instructions:
– Observe the instructions in section 5.4 "Sealing the Pneumatic Screwed Connec-
tions" [}135].

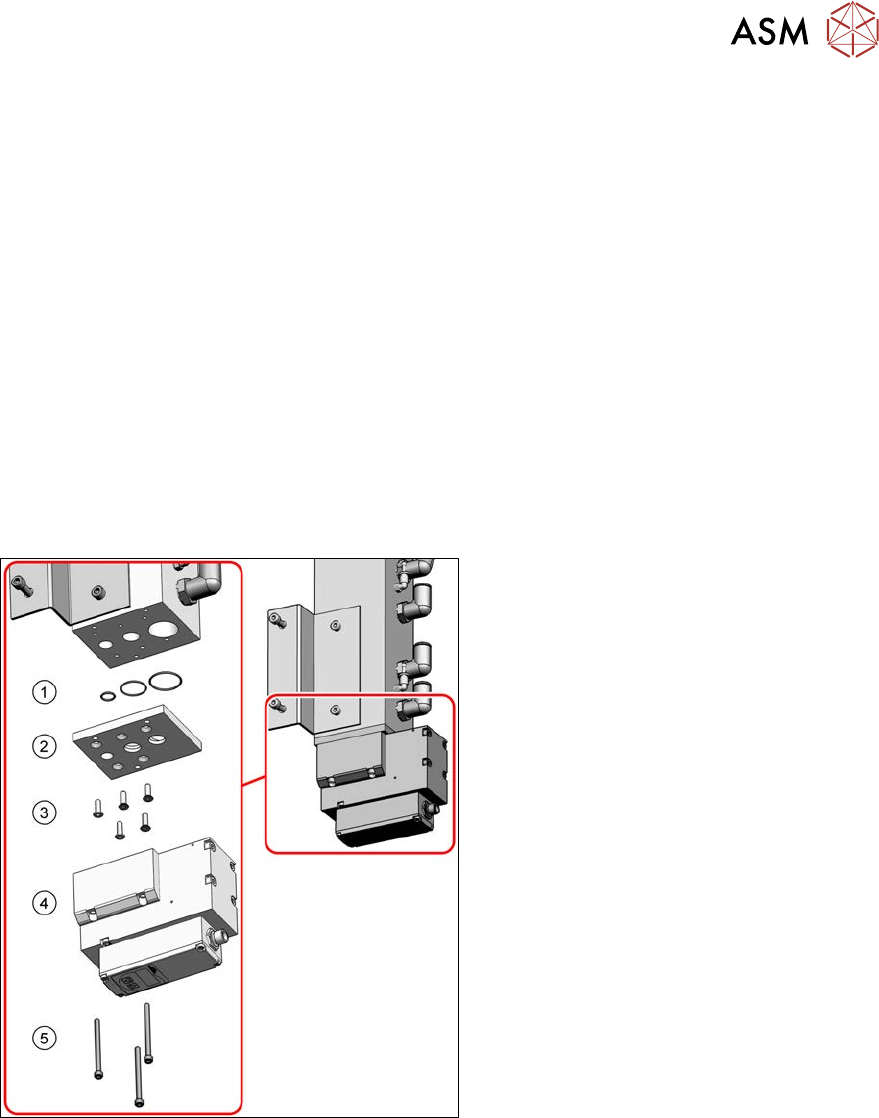

Fig.175: Overview proportional controller (version2)
► Clean the sealing rings(1)and the
adapter plate(2).
► Lightly grease the sealing rings with
Isoflex Topas NCA52 and insert these
again into the adapter plate.
► Fit the adapter plate with five fastening
screws(3) (torque: 2.5Nm, Loc-
tite241).
► Fit the proportional controller(4) with
three fastening screws(5) (torque of
2.0 to 2.5Nm, Loctite241).
5 Pneumatic System
5.9 Replacing the side channel compressor Elmo blower (location 3)
142 Service Manual SIPLACE X-Serie S 06/2019
5.9 Replacing the side channel compressor Elmo blower
(location 3)
Parts, equipment and tools
●
Side channel compressor ELMO blower [03004094-xx]
Overview

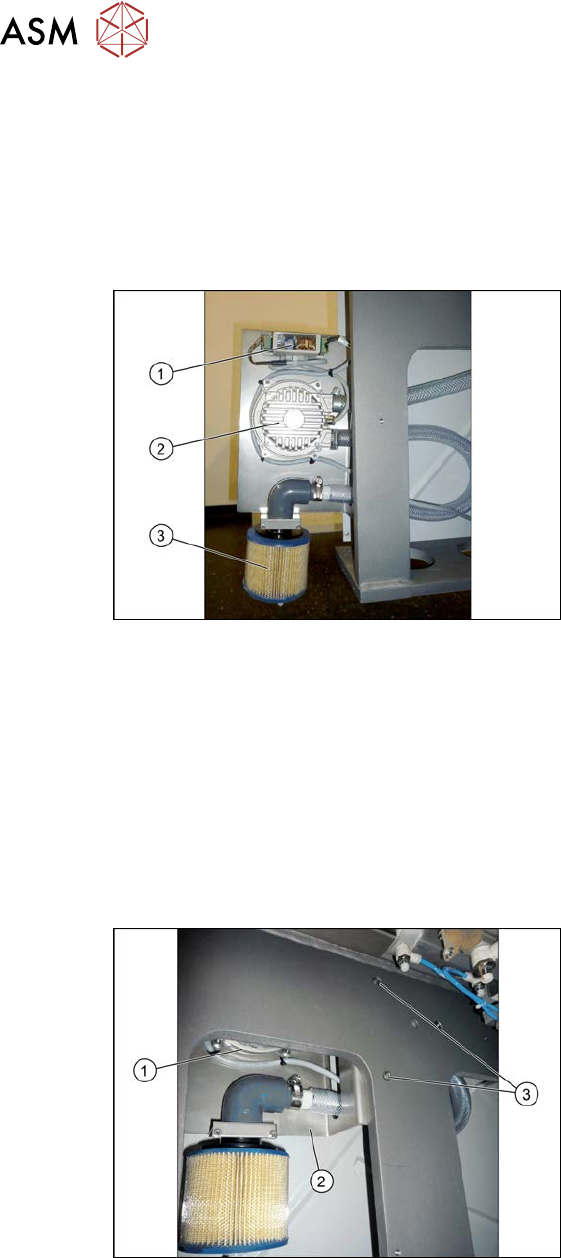

Fig.176: Overview of Elmo blower
1. Elmo blower electronics
2. Elmo blower
3. Cooling air filter
The ELMO blower is located at location 3, be-
hind the side cover.
Removal
► Switch off the machine, disconnect it from the power supply and secure it to prevent
unauthorized reactivation.
1.2 "Preparatory work..." [}16]
► Switch off the compressed air supply and then disconnect the machine from the compressed
air supply.
5.2 "Disabling the compressed air supply" [}134]
► To do this, remove the screws fastening the side cover and remove this cover.
5.5 "Dismantling the Lower Side Cover" [}135]
Fig.177: Removing the Elmo blower
The Elmo blower (1) and the corresponding
electronics are fitted onto a plate (2).
► Remove the two screws (3) fastening the
plate and then carefully pull the plate out
of the machine.
► Unplug all electrical and pneumatic connections to the Elmo blower. You may want to mark
their positions, to make clear assignment easier later on.
► Remove the screws fastening the Elmo blower and then remove it.
Installation
► Follow the removal instructions in reverse order for installation.
– Observe the instructions in section 5.4 "Sealing the Pneumatic Screwed Connections" [}135].
5 Pneumatic System
5.10 Replacing the electronic ballast for the ELMO blower
Service Manual SIPLACE X-Serie S 06/2019 143
5.10 Replacing the electronic ballast for the ELMO blower
Parts, equipment and tools
●
Electronic ballast for ELMO blower [03006517-xx]
Overview

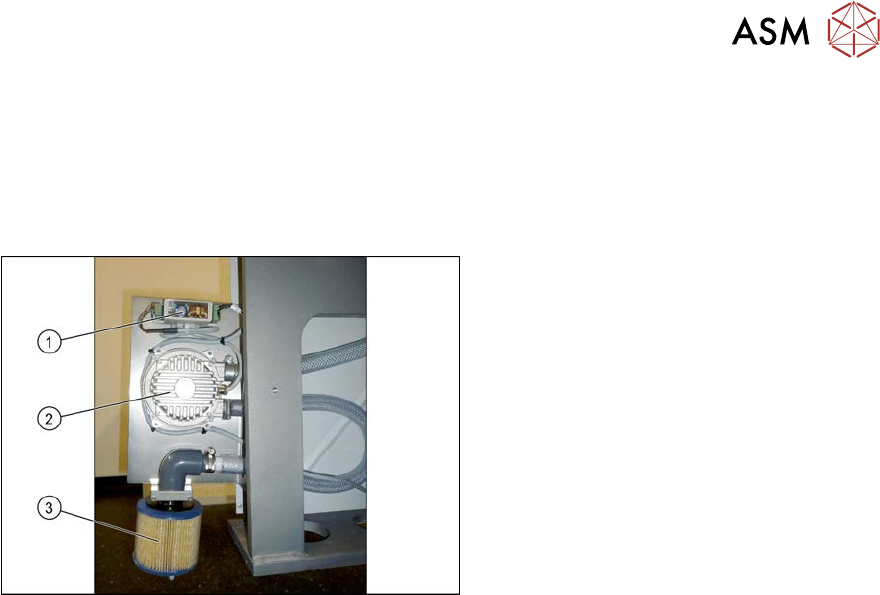

Fig.178: ELMO blower
1. Elmo blower electronics
2. Elmo blower
3. Cooling air filter
The ELMO blower is located at location 3,
behind the side cover.
Removal
► Removal and installation of the Elmo blower electronics is the same as that for the Elmo
blower itself. For more information, read section 5.9 "Replacing the side channel compressor
Elmo blower (location 3)" [}142].
